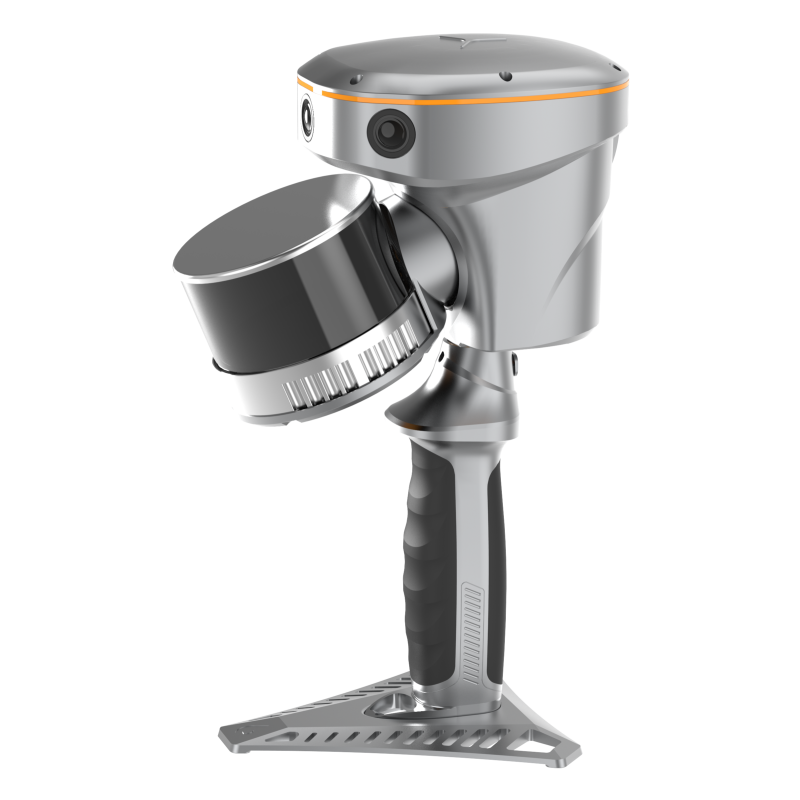

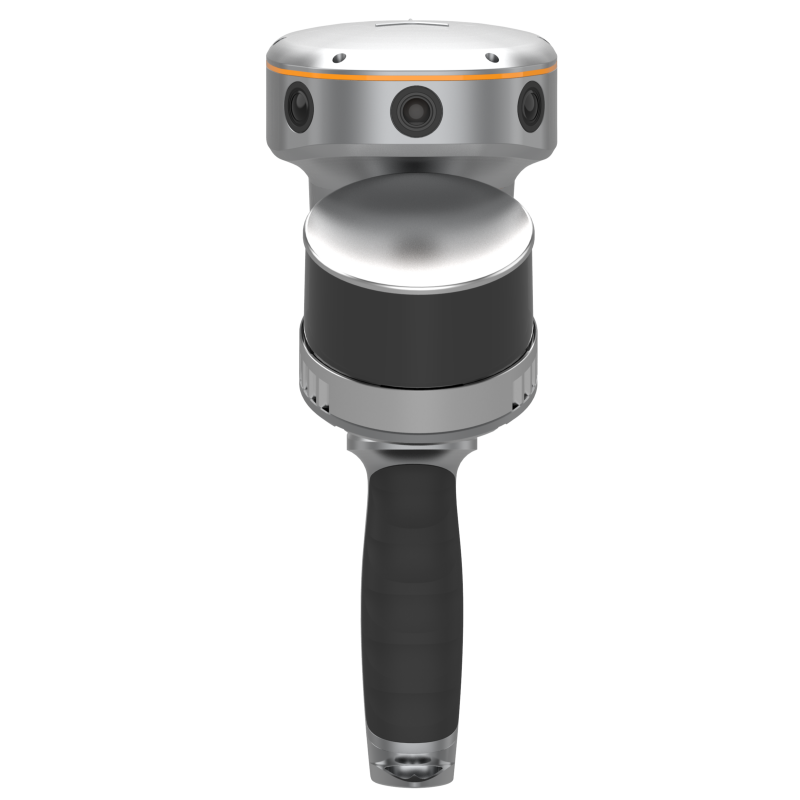

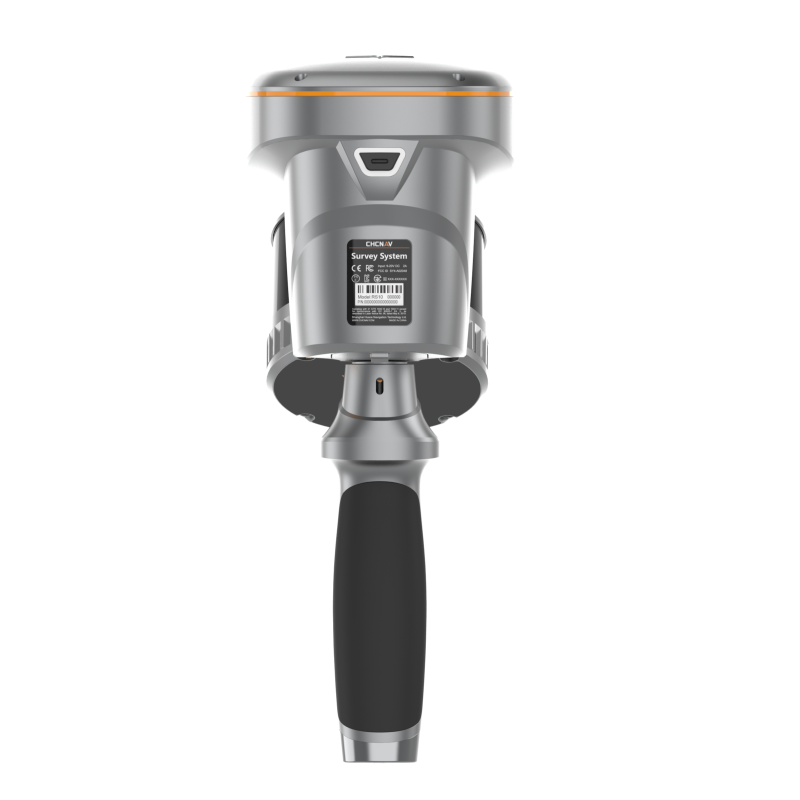

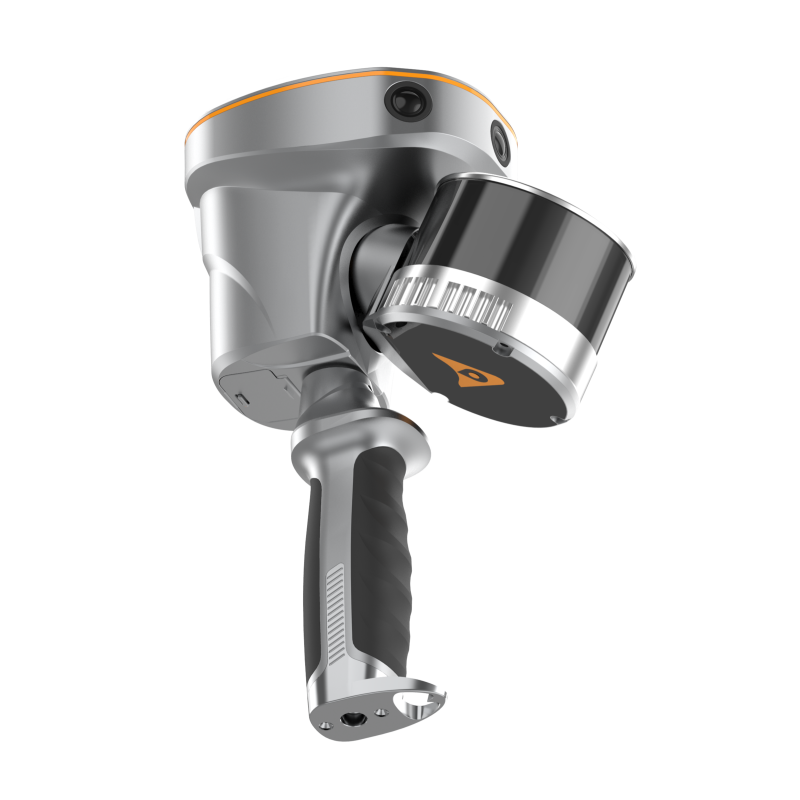

CHCNAV RS10 Handheld SLAM 3D Scanner and GNSS RTK Receiver
R439,399
Inclusive all taxes
-
R439,399Sold by Surveying Tech
Description
CHCNAV RS10 Handheld SLAM 3D Scanner and GNSS RTK Receiver
The RS10 brings a new approach to geospatial surveying by integrating GNSS RTK, laser scanning and visual SLAM technologies into a single platform designed to improve the efficiency and accuracy of indoor and outdoor 3D scanning and surveying tasks.
RS10
looks like standard handheld SLAM device, but it’s more than just it. This
innovative design cleverly addresses the challenge of RTK's inability to
measure in areas with weak or fully lost GNSS signals, while giving the RS10
the ability to efficiently survey in areas that are difficult to reach
manually, making field job simpler and more reliable.
High Performance Quick Specs:
- Absolute accuracy 5 cm
- Relative accuracy < 1 cm
- RTK accuracy H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS
- Field of view 360°× 270°
- Scanning range up to 120 m (300 m optional)
- 200 Hz data rate IMU
- 512GB data storage
- IP64 protection
- 1.9 kg total weight
- Loop-free data acquisition
- Visual-assisted positioning
- Working time from a single battery 1 hour, supports hot-swapping and portable charger
SLAM Laser Scanner Quick Specs:
- Level 1 laser class
- 16 channel with XT16 (optional 32 with XT32M2X)
- Scanning range from 0.05 m to 120 m (300 m with XT32M2X)
- 360°FOV (horizontal) , 30°FOV (vertical)
- 320 000 pts/sec scanning speed (1.9M pts/sec with XT32M2X)
- Rotation speed: 10 Hz
- Echo returns 2
High-precision RTK Quick Specs:
- Channels 1408
- Real
time kinematic (RTK) accuracy
- H: 8mm + 1ppm RMS
- V: 15mm + 1ppm RMS
- Initialization time: <10 s
- Initialization reliability: >99.9%
- Post-processing
kinematic (PPK)
- H: 3mm + 1ppm RMS
- V: 5mm + 1ppm RMS - GPS: L1C/A, L2C, L2P(Y), L5
- GLONASS: L1, L2, L3*
- Galileo: E1, E5a, E5b, E6*
- BeiDou: B1I, B2I, B3I, B1C, B2a, B2b
- QZSS: L1C/A, L1C, L2C, L5, L6*
- NavIC/ IRNSS: L5*
- PPP: B2b-PPP
- SBAS:
EGNOS
(L1, L5)
