DJI
dji Mavic 3 Enterprise RTK Worry-Free Basic Combo
R106,099
Inclusive all taxes
-
R106,099Sold by SOM Survey Instruments
Specifications
01 AIRCRAFT
- DIAGONAL LENGTH: DIAGONAL: 380.1 MM
- DIMENSIONS (FOLDED / UNFOLDED): FOLDED (WITHOUT PROPELLERS): 223 MM X 96.3 MM X 122,2 MM (LENGTH X WIDTH X HEIGHT)
- DIMENSIONS (FOLDED / UNFOLDED): UNFOLDED (WITHOUT PROPELLERS): 347.5 X 283 MM X 139.6 MM (LENGTH X WIDTH X HEIGHT)
- GNSS: GPS + GALILEO + BEIDOU + GLONASS (GLONASS IS SUPPORTED ONLY WHEN RTK MODULE IS ENABLED)
- HOVERING ACCURACY RANGE: VERTICAL: ± 0.1 M (VISION POSITIONING ENABLED); ± 0.5 M (GNSS POSITIONING ENABLED); ±0.1 M (D-RTK ENABLED)
- HOVERING ACCURACY RANGE: HORIZONTAL: ± 0.3 M (VISION POSITIONING ENABLED); ± 0.5 M (HD POSITIONING ENABLED); ± 0.1 M (RTK ENABLED)
- INTERNAL SOTRAGE: N/A
- LIGHT SENSOR: BUILT-IN MODULE
- MAX ANGULAR VELOCITY: 200° / S
- MAX ASCEND SPEED: 6 M / S (NORMAL MODE)
- MAX ASCEND SPEED: 6 M / S ( SPORT MODE)
- MAX DESCEND SPEED: 6 M / S (NORMAL MODE)
- MAX DESCEND SPEED: 6 M / S (SPORT MODE)
- MAX FLIGHT DISTANCE: 32 KM (TO THE POWER 6)
- MAX FLIGHT SPEED ( AT SEA LEVEL, NO WIND): 15 M / S (NORMAL MODE)
- MAX FLIGHT SPEED (AT SEA LEVEL, NO WIND): FLYING FORWARD: 21 M / S, FLYING SIDEWAYS: 20 M / S, FLYING BACKWARDS: 9 M / S (SPORT MODE)²
- MAX FLIGHT TIME (WITHOUT WIND): 43 MINUTES (TO THE POWER 4)
- MAX HOVER TIME (WITHOUT WIND): 37 MINUTES (TO THE POWER 4)
- MAX PITCH ANGLE: 30° (NORMAL MODE)
- MAX PITCH ANGLE: 35° (SPORT MODE)
- MAX TAAKE-OFF ALTITUDE ABOCE SEA LEVEL: 6000 M (WITHOUT A PAYLOAD)
- MAX TAKEOFF WEIGHT: 1,050 G
- MAX WIND SPEED RESISTANCE: 12 M / S (³)
- MOTOR NUMBER MODEL: 2008
- NET WEIGHT (NET PROPELLERS AND RTK MODULE): 951 G
- OPERATING TEMPERATURE: -10° TO 40° C (14° TO 104°F)
- PROPELLER MODEL NUMBER: 9453F ENTERPRISE EDITION
02 RGB CAMERA
- IMAGE FORMAT: JPEG/ DNG (RAW)
- IMAGE SENSOR: 4/3 CMOS
- IMAGE SENSOR: EFFECTIVE PIXELS: 20 MP
- ISO RANGE: 100 - 6400
- LENS: FOV: 84°
- LENS: EQUIVALENT FOCAL LENGTH: 24 MM
- LENS: APERATURE: F / 2.8 TO F / 11
- LENS: FOCUS: 1 M TO ∞
- MAX IMAGE SIZE: 5280 X 3956
- MAX VIDEO BITRATE: 4K: 130 MBPS
- MAX VIDEO BITRATE: FHD: 70 MBPS
- PHOTO SHOOTING MODE: SINGLE SHOT: 20 MP
- PHOTO SHOOTING MODE: TIMELAPSE: 20 MP
- PHOTO SHOOTING MODE: JPEG: 0.7 / 1 / 2 / 3 / 5 / 7 / 10 / 15 / 20 / 30 60 S`
- PHOTO SHOOTING MODE: JPEG + RAW: 3 / 5 / 7 10 / 15 /20 30 /60 S
- PHOTO SHOOTING MODE: PANORAMA: 20 MP (ORIGINAL MATERIAL)
- SHUTTER SPEED: ELECTRONIC SHUTTER: 8 - 1 / 8000 S
- SHUTTER SPEED: MECHANICAL SHUTTER: 8 - 1 / 2000 S
- SUPPORTED FILE SYSTEM: EXFAT
- VIDEO FORMAT: MP4 (MPEG-4 AVC / H.264
- VIDEO RESOLUTION: H.264
- VIDEO RESOLUTION: 4K: 3840 X 2160 @ 30FPS
- VIDEO RESOLUTION: FHD: 1920 X 1080 @ 30 FPS
03 MULTISPECTRAL CAMERA
- GAIN RANGE: 1 X - 32 X
- IMAGE FORMAT: TIFF
- IMAGE SENSOR: 1 / 2.8 - INCH CMOS, EFFECTIVE PIXELS: 5 MP
- LENS: FOV: 73.91° (61.2 X 48.10°)
- LENS : EQUIVALENT FOCAL LENGTH: 25 mm
- LENS: APERATURE: F / 2.0
- LENS: FOCUS: FOXED FOCUS
- MAX IMAGE SIZE: 2592 X 1944
- MAX VIDEO BITRATE: STREAM: 60 MBPS
- MULTISPECTRAL CAMERA BAND: GREEN (G): 560 ± 16 NM;
- MULTISPECTRAL CAMERA BAND: RED (R): 650 ± 16 NM
- MULTISPECTRAL CAMERA BAND: RED EDGE (RE): 730 ± 16 NM
- MULTISPECTRAL CAMERA BAND: NEAR INFRARED (NIR): 860 ± 26 NM
- PHOTO SHOOTING MODE: SINGLE SHOT: 5 MP
- PHOTO SHOOTING MODE: TIMELAPSE: 5 MP
- PHOTO SHOOTING MODE: TIFF: 2 / 3 /5 /7 / 10 / 15 / 20 /30 / 60 S
- SHUTTERE SPEED: ELECTRONIC SHUTTER: 1/30~/12800 S
- VIDEO FORMAT: MP4 (MPEG - 4 AVC / H.264)
- VIDEO RESOLUTION: H.264
- VIDEO RESOLUTION: FHD: 1920 X 1080 @ 30 FPS
- VIDEO RESOLUTION: VIDEO CONTENT: NDVI/GDVI/NDRE
04 GIMBAL
- ANGULAR VIBRATION RANGE: ± 0.007°
- CONTROLLABLE RANGE: TILT: -90° TO 35°
- CONTROLLABLE RANGE: PAN: UNCONTROLLABLE
- MAX CONTROL SPEED (TILT): 100° / S
- MECHANICAL RANGE: TILT: -135° TO 45°
- MECHANICAL RANGE: ROLL: -45° TO 45°
- MECHANICAL RANGE: PAN: -27° TO 27°
- STABILIZATION SYSTEM: 3 - AXIS MECHANICAL GIMBAL (TILT, ROLL, PAN)
05 SENSING SYSTEM
- BACKWARD: DISTANCE MEASURING RANGE: 0.5 M TO 16 M
- DOWNWARD: FOV: FRONT AND REAR 130° , LEFT AND RIFGHT 160°
- FORWARD: DISTANCE MEASURING RANGE: 0.5 M TO 20 M
- FORWARD: DETECTION RANGE: 0.5 M TO 200 M
- FORWARD: EFFECTIVE OBSTACLE AVOIDANCE SPEED: FLIGHT SPEED ≤ 15 M / S
- FORWARD: FOV: HORIZONTAL 90°, VERTICAL 103°
- OPERATING ENVIRONMENT: FRONT, REAR, LEFTM RIGHT, ABOVE: SURFACES OTH CLEAR PATTERNS AND ADEQUATE LIGHTING (> 15 LUX, ENVIRONMENTS ITH NORMAL INDOOR FLUORESCENT LIGHT EXPOSURE)
- OPERATING ENVIRONMENT: BELOW: SURFACES WITH DIFFUSE RELFECTION MATERIAL AND A REFLECTIVITY OF > 20 % (SUCH AS WALLS, TREES, PEOPLE, ETC.)
- OPERATING ENVIRONMENT: ADEQUATE LIGHTING (>15 LUX, ENVIRONMENTS WITH NORMAL INDOOR FLUORESCENT LIGHT EXPOSURE)
- SENSING SYSTEM TYPE: OMNIDIRECTIONAL BONICULAR VISION SYSTEM. ITH AN INFRARED SENSOR AT THE BOTTOM OF THE AIRCRAFT
06 VIDEO TRANSMISSION
- ANTENNA: 4 ANTENNAS, 2T4R
- LATENCY (DEPENDING ON ENVIRONMENTAL CONDITIONS AND MOBILE DEVICE): APPROX. 200MS
- LIVE VIEW QUALITY: REMOTE CONTROLLER: 1080P / 30FPS
- MAX DOWNLOAD SPEED (TO THE POWER 9): 15 MB/S (WITH DJI RC PRO ENTERPRISE)
- MAX EFFECTIVE SIGNAL DISTANCE: FCC: 15 KM
- MAX EFFECTIVE SIGNAL DISTANCE: CE: 8 KM
- MAX EFFECTIVE SIGNAL DISTANCE: SRRC: 8 KM
- MAX TRANSMISSION DISTANCE (OBSTRUCTED)(TO THE POWER 9): STRONG INTERFERENCE (URBAN LANDSCAPES, RESIDENTIAL AREAS, ETC.): .5-3KM (FCC/CE/SRRC/MIC)
- MAX TRANSMISSION DISTANCE (OBSTRUCTED)(TO THE POWER 9): MEDIUM INTERFERENCE (SUBURBAN LANDSCAPES, CITY PARKS, ETC.): 3-9KM (FCC), 3-6 KM (CE/SRRC/MIC)
- MAX TRANSMISSION DISTANCE (OBSTRUCTED)(TO THE POWER 9): LOW INTERFERENCE (REMOTE FIELDS, OPEN FARMLAND, ETC.): 9 - 15 km (fcc), 6-8 km (CE / SRRC/ MIC)
- OPERATING BAND (TO THE POWER 7): 2.400 - 2.4835 GHZ
- OPERATING BAND (TO THE POWER 7): 5.725 - 5.850 GHZ
- TRANSMISSION POWER (EIRP): 2.4 GHZ: <33 DBM (FCC), <20 DBM (CE/SRRC/MIC)
- TRANSMISSION POWER (EIRP): 5.8 GHZ: <33 DBM (FCC), < 30 DBM (SRRC), <14 DBM (CE)
- VIDEO TRANSMISSION SYSTEM: DJI 03 IMAGE TRANSMISSION INDUSTRY EDITION
07 DJI RC PRO ENTERPRISE
- ANTENNA: 4 ANTENNAS, 2T4R
- BATTERY: LI-ION (5000 MAH @ 7.2 V)
- BLUETOOTH OPERATING FREQUENCY : 2.400 - 2.4835 GHZ
- BLUETOOTH PROTOCOL: BLUETOOTH 5.1
- BLUETOOTH TRANSMITTER POWER (EIRP): < 10 DBM
- BRIGHTNESS: 1,000 NITS
- CHARGING TEMPERATURE: 50° TO 40° C (41° TO 104° F)
- CHARGING TIME: APPROX. HOUR 30 MINUTES (WITH THE INCLUDED DJI USB - C POWER ADAPTER (100W) ONLY CHARGING THE REMOTE CONTROLLER OR A USB CHARGER AT 15 V)
- CHARGING TIME: APPROX. 2 HOURS (WITH A USB CHARGER AT 12 V)
- CHARGING TIME : PPROX. 2 HOURS 50 MINUTES(WITH THE INCLUDED DJI USB-C POWER ADAPTER (100 W) CHARGING THE AIRCRAFT AND REMOTE CONTROLLER SOMULTANEOUSELY)
- CHARGING TYPE: RECOMMEDED TO BE CHARGED WITH THE INCLUDED DJI USB-C POWER ADAPTER (100 W ) OR USB CHARGER AT 12 V OR 15 V
- DIMENSIONS: ANTENNAS FOLDED AND CONTROLLER STICKS UNMOUNTED: 183.27 MM X 203.35 MM X 47.6 MM (L X W X H)
- DIMENSIONS: ANTENNAS UNFOLDED AND CONTROLLER STICKS MOUNTED: 183.27 MM X 203.35 MM X 59.84 MM (L X W X H)
- GNSS: GPS + GALILEO + GLONASS
- MAX TRANSMISSION DISTANCE (UNOBSTRUCTED, FREE OF INNTERFERENCE) (TO THE POWER 7): FCC: 15 KM
- MAX TRANSMISSION DISTANCE (UNOBSTRUCTED, FREE OF INTERFERENCE) (TO THE POWER 7): CE / SRRC / MIC: 8 KM
- MODEL: RM510B
- OPERATIG TEMPERATURE RANGE: -10° TO 40° C (14° TO 104° F)
- OPERATING TIME: APPROX 3 HOURS
- RATED POWER: 12 W
- SCREEN: 60 FPS
- SCREEN RESOLUTION: 1920 X 1080
- SOTRGE CAPACITY: INTERNAL STORAGE (ROM): 64 GB
- STORAGE CAPACITY: SUPPORTS A MICROSD CARD FOR EXPANDED CAPACITY
- STORAGE TEMPERATURE: -30° TO 60° C (-22° TO 140° F ) (WITHIN ONE MONTH)
- STORAGE TEMPERATURE: -30° TO 45°C (-22° TO 113° F) (ONE TO THREE MONTHS)
- STORAGE TEMPERATURE: -30° C TO 35° C (-22° TO 95° F) (THREE TO SIX MONTHS)
- STORAGE TEMPERATURE: -30° TO 25° C (-22° C TO 77° F) (MORE THAN SIX MONTHS)
- SUPPORTED DJI AIRCRAFT (TO THE POWER 10): DJI MAVIC 3E
- SUPPORTED DJI IRCRAFT (TO THE POWER 10): DJI MAVIC 3T
- TOUCHSCREEN CONTROL: 10-POINT MULTI - TOUCH
- VIDEO OUTPUT PORT: MII-HDMI PORT
- VIDEO TRANSMISSION OPERATING FREQUENCY (TO THE POWER 6): 2.400 - 2.4835 GHZ
- VIDEO TRANSMISSION OPERATING FREQUENCY (TO THE POWER 6): 5.725 - 5.850 GHZ
- VIDEO TRANSMISSION SYSTEM: DJI 03 ENTERPRISE TRANSMISSION
- VIDEO TRANSMISSION TRANSMITTER POWER (EIRP): 2.4 GHZ: < 33 DBM (FCC), <0 DBM (CE / SRRC/ MIC)
- VIDEO TRANSMISSION TRANSMITTER POWER (EIRP): 5.8 GHZ: < 33 DBM (FCC), <14DBM (CE), < 23 DBM (SRRC)
- WEIGHT: APPROX. 680 G
- WI-FI OPERATING FREGUENCY (TO THE POWER 6): .400 - 2.4835 GHZ
- WI-FI OPERATING FREQUENCY (TO THE POWER 6): 5.150 - 5.250 GHZ
- WI-FI OPERATING FREQUENCY (TO THE POWER 6): 5.725 - 5.850 GHZ
- WI-FI PROTOCOL: 802.11 A B / G / N / AC/ AX
- WI-FI PROTOCOL: SUPPORT X 2 MIMO WI-FI
- WI-FI TRANSMITTER POWER (EIRP): 2.4 GHZ: <5 DBM (FCC), <20 DBM (CE/SRRC/MIC)
- WI-FI TRANSMITTER POWER (EIRP): 5.1 GHZ: < 26 DBM (FCC), <23 DBM (CE/SRRC/MIC)
- WI-FI TRANSMITTER POWER (EIRP): 5.8 GHZ: <26 DBM (FCC/SRRC), < 14 DBM (CE)
08 STORAGE
- RECOMMENDED MICRO USB CARDS: AIRCRAFT: SANDISK EXTREME 32GB V30 A1 MICROSDHC SANDISK EXTREME PRO 32GB V30 A1 MICROSDHC SANDISK EXTREME 512GB V30 A2 MICROSDXC LEXAR 1066X 64GB V30 A2 MICROSDXC KINGSTON CANVAS GO! PLUS 64GB V30 A2 MICROSDXC KINGSTON CANVAS REACT PLUS 64GB V90 A1 MICROS
- SUPPORTED MEMORY CARDS: AIRCRAFT: U3/CLASS10/V30 OR AABOVE IS REQUIRED. A LIST OF RECOMMENDED MICRO SD CARDS CAN BE FOUND BELOW
09 BATTERY
- CAPACITY: 5000 MH
- CHARGING TEMPERATURE: 5° TO 400° C (41° TO 104° F)
- CHEMICAL SYSTEM: LICO 02
- ENERGY: 77 WH
- MAX CHARGING VOLTAGE: 17.6 V
- STANDARD VOLTAGE: 15.4 V
- TYPE: LIPO 4S
- WEIGHT: 335.5 G
10 CHARGER
- INPUT: 100 - 240 V (AC POWER), 50-60 HZ, 2.5 A
- OUTPUT: MAX. 100 W (TOTAL)
- OUTPUT: WHEN BOTH PARTS ARE USED, THE MAXIMUM OUTPUT POWER OF EACH ITERFACE IS 82 W, AND THE CHARGER WILL DYNAMICALLY ALLOCATE THE OUTPUT POWER OF THE TWO PORTS ACCORDING TO THE LOAD POWER.
- OUTPUT POWER: 100 W
11 CHARGER
- INPUT: USB-C: 5-20 V, 5.0 A
- OUTPUT: MAX. 100 W (TOTAL)
- OUTPUT: WHEN BOTH PORTS ARE USED, THE MAXIMUM OUTPUTPOWER OF EACH INTERFACE IS 8 W, AD THE CHARGER WILL DYAMICALLY ALLOCATE THE OUTPUT POWER OF THE TWO PORTS ACCORDIG TO THE LOAD POWER.
- OUTPUT POWER: 100 W
12 CHARGING HUB
- CHARGING TEMPERATURE RANGE: 5° TO 40° C (41° TO 104° F)
- CHARGING TYPE: THREE BATTERIES CHARGED IN SEQUENCE
- INPUT: USB-C; 5- 0V, 5.0 A
- OUTPUT: BATTERY PORT: 1 - 17.6 V , 8.0 A
- RATED POWER: 100 W
13 RTK MODULE
- DIMENSIONS: 50.2 MM X 40.2 MM X 66.2 MM (L X W X H)
- INTERFACE: USB-C
- WEIGHT: 24±2 G
14 SPEAKER
- BIT RATE: 16 KBPS / 32 KBPS
- DIMENSIONS: 114.1 MM X 82.0 MM X 54.7 MM X (L X W X H)
- EFFECTIVE BROADCAST DISTANCE (TO THE POWER 11): 100 M @ 70 DB
- INTERFACE: USB-C
- MAX VOLUME: (TO THE POWER 11)
- OPERATING TEMPERATURE RANGE: -10° TO 40° C (14° TO 104° F)
- RATED POWER: 3 W
- WEIGHT: 85±2 G
15 OTHER
- NOTES: [1] THE STANDARD WEIGHT OF THE AIRCRAFT (INCLUDING THE BATTERY, PROPELLERS, AND A MICROSD CARD). THE ACTUAL PRODUCT WEIGHT MAY VARY DUE TO DIFFERENCES IN BATCH MATERIALS AND EXTERNAL FACTORS
- OTHER: [2] MAXIMUM SPEED IN SPORT MODE IS 19M/S WHEN OPERATING IN EU REGIONS.
- OTHER: [3] MAX WIND SPEED RESISTANCE DURING TAKEOFF AND LANDING
- OTHER: [4] MEASURED WITH MAVIC 3 ENTERPRISE SERIES FLYING AT A CONSTANT SPEED OF 32.4 KPH IN A WINDLESS ENVIRONMENT AT SEA LEVEL UNTIL THE BATTERY REACHED 0%. DATA IS FOR REFERENCE ONLY. PLEASE PAY ATTENTION TO RTH REMINDERS IN THE DJI PILOT 2 APP DURING FLIGHT
- OTHER: [5] DO NOT EXPOSE THE INFRARED CAMERA LENSES TO STRONG SOURCES OF ENERGY SUCH AS THE SUN, LAVA, OR LASER BEAMS. OTHERWISE, THE CAMERA SENSOR MAY BE BURNED, LEADING TO PERMANENT DAMAGE
- OTHER: [6] IN SOME COUNTRIES AND REGIONS, THE 5.8 AND 5.1GHZ FREQUENCIES ARE PROHIBITED, OR THE 5.1GHZ FREQUENCY IS ONLY ALLOWED FOR INDOOR USE. CHECK LOCAL LAWS AND REGULATIONS FOR MORE INFORMATION
- OTHER: [7] MEASURED IN AN UNOBSTRUCTED ENVIRONMENT FREE OF INTERFERENCE. THE ABOVE DATA SHOWS THE FARTHEST COMMUNICATION RANGE FOR ONE-WAY, NON-RETURN FLIGHTS (WITH NO PAYLOAD) UNDER EACH STANDARD. DURING YOUR FLIGHT, PLEASE PAY ATTENTION TO RTH REMINDERS IN THE
- OTHER: [8] DATA TESTED UNDER DIFFERENT STANDARDS IN UNOBSTRUCTED ENVIRONMENTS WITH TYPICAL INTERFERENCE. USES FOR REFERENCE PURPOSES ONLY AND PROVIDES NO GUARANTEE AS TO THE ACTUAL FLIGHT DISTANCE
- OTHER: [9] MEASURED IN A LABORATORY ENVIRONMENT WITH LITTLE INTERFERENCE IN COUNTRIES/REGIONS THAT SUPPORT BOTH 2.4 GHZ AND 5.8 GHZ. WITH FOOTAGE SAVED ON THE OFFICIALLY RECOMMENDED MICROSD CARDS. DOWNLOAD SPEEDS MAY VARY DEPENDING ON ACTUAL CONDITIONS
- OTHER: [10] WILL SUPPORT MORE DJI AIRCRAFT IN THE FUTURE. VISIT THE OFFICIAL WEBSITE FOR THE LATEST INFORMATION
- OTHER: [11] DATA WAS MEASURED IN A CONTROLLED ENVIRONMENT AND IS FOR REFERENCE ONLY. ACTUAL USE EXPERIENCE MAY VARY DEPENDING ON SOFTWARE VERSION, SOUND SOURCE, SPECIFIC ENVIRONMENT, AND OTHER CONDITIONS
Description

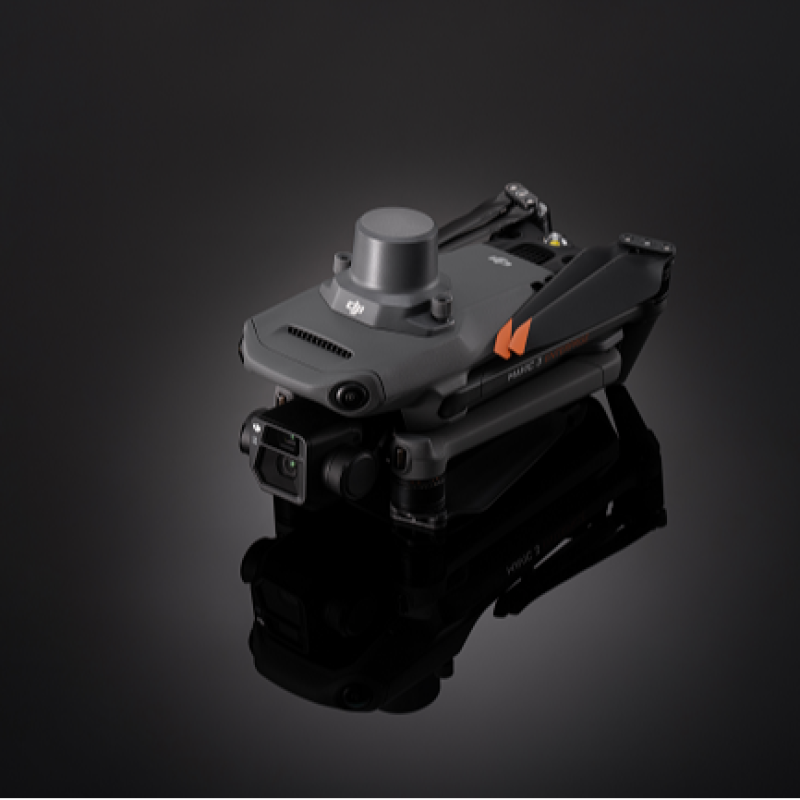

dji Mavic 3 Enterprise with RTK module included

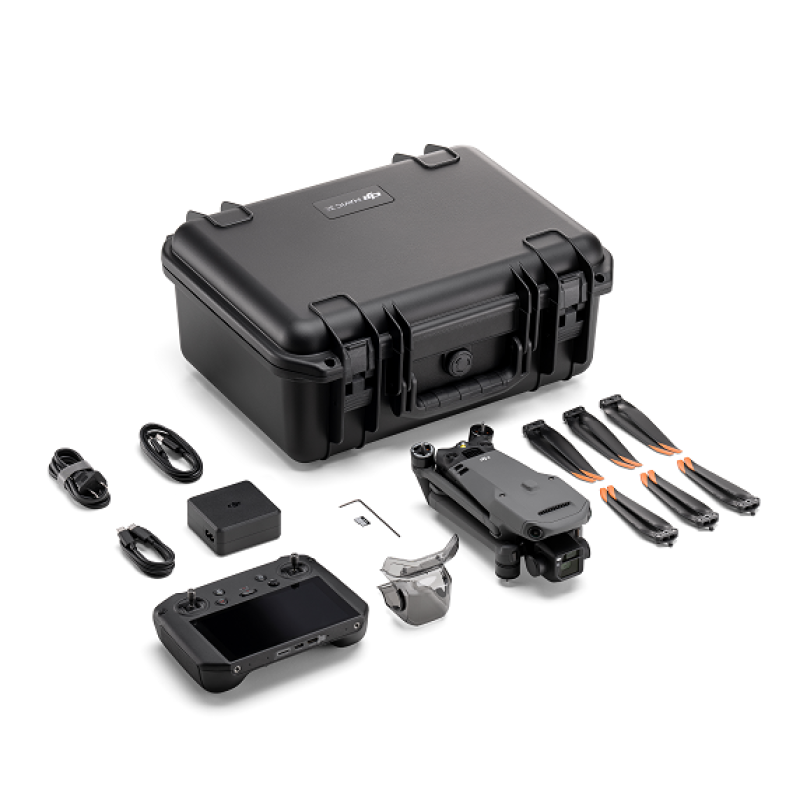

In the box:

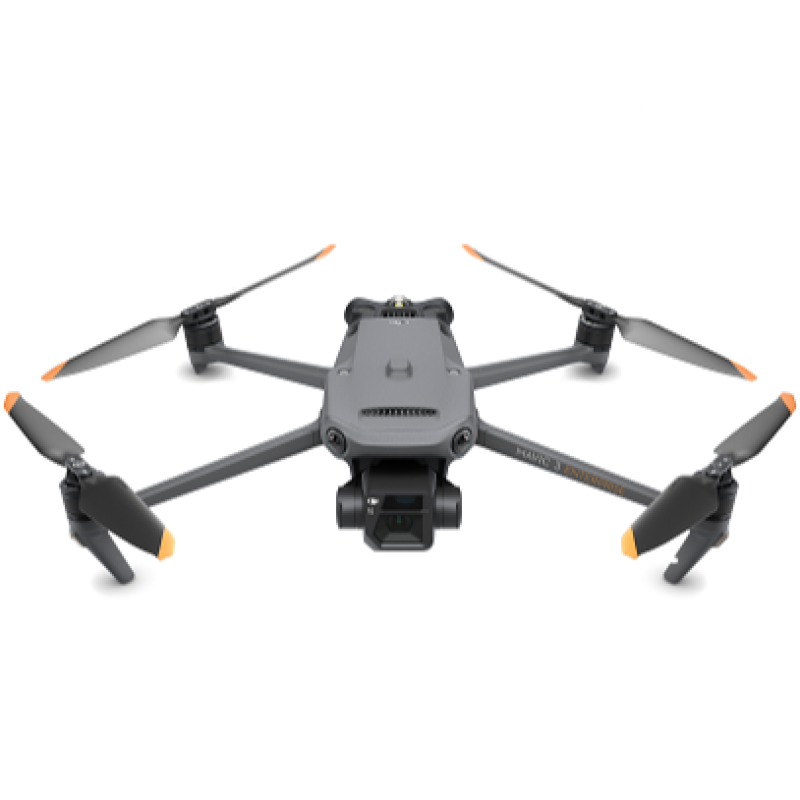

1x Mavic 3E Aircraft

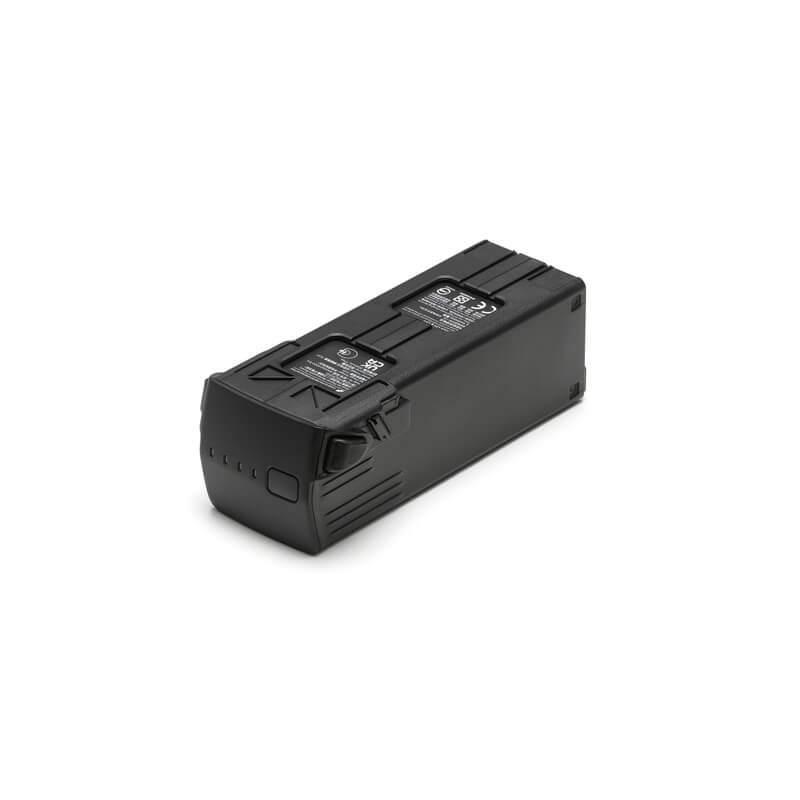

1x Mavic 3 Intelligent Flight Battery

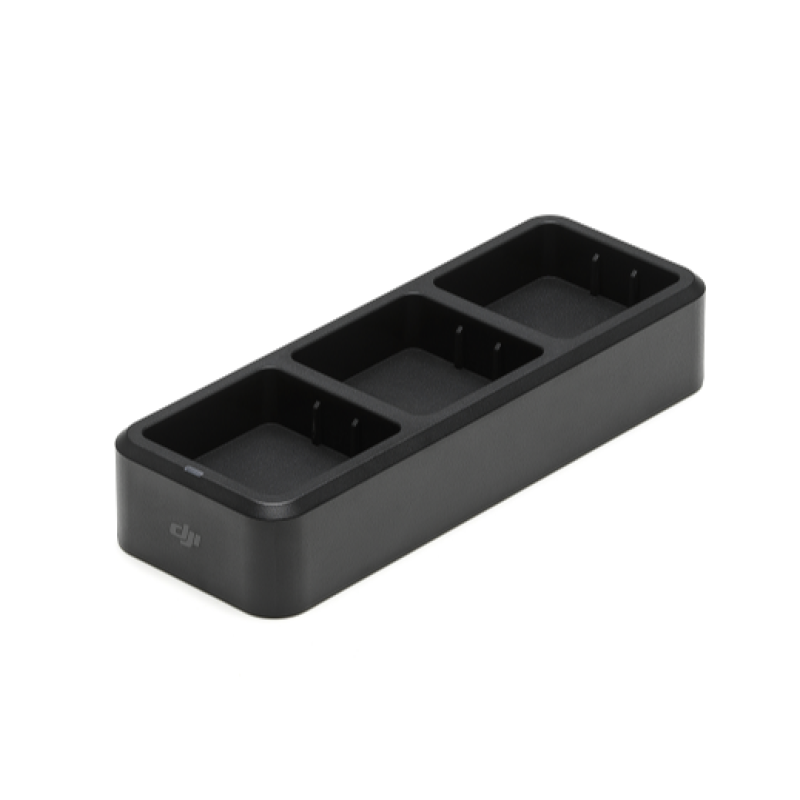

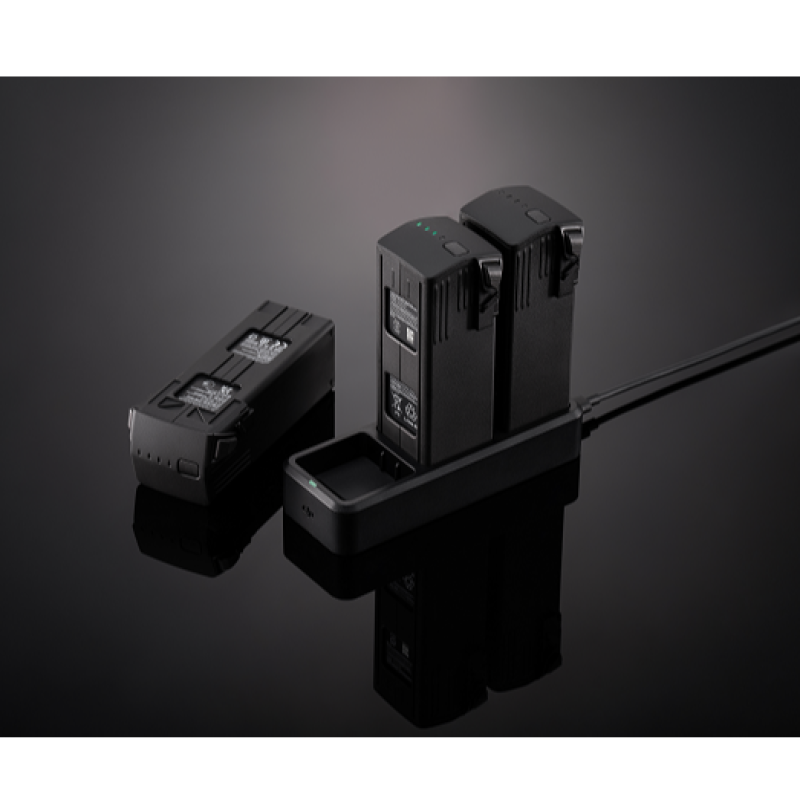

1x Mavic 3E Battery kit (3x batteries and 1x charging hub)
(Kit includes 4x Intelligent Flight batteries in total)

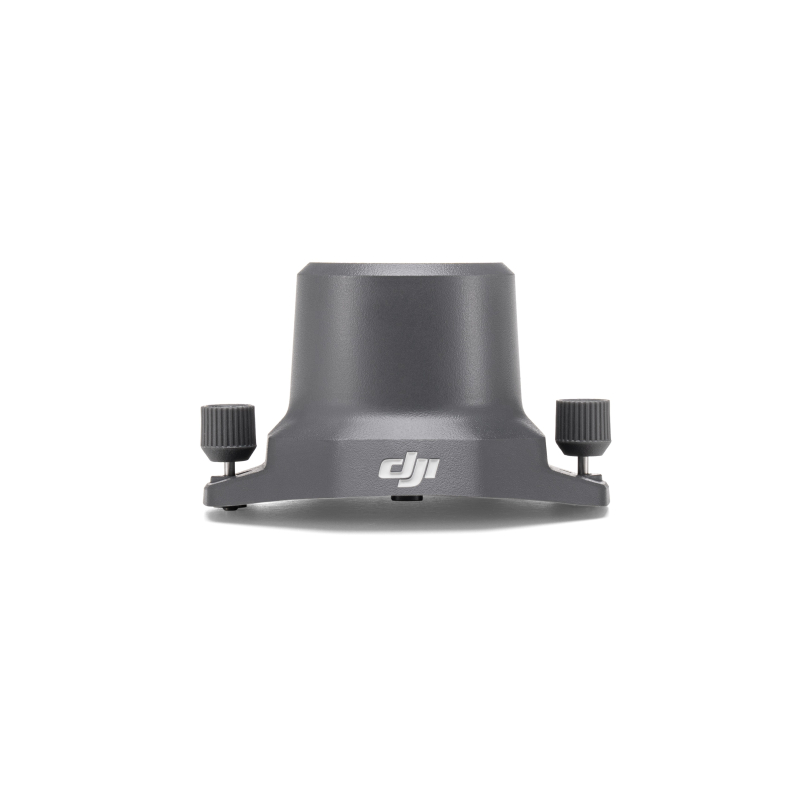

1x RTK Module
1x Gimbal Protector
1x Mavic 3 Enterprise Series Propellers (Pair)
1x Remote control Pro Enterprise
1x Screwdriver
1x USB-C Power Adapter (100W)
1x 100W Power Adaptor AC Cable
1x USB-C Cable
1x USB-C to USB-C Cable
1x Protector (Carry) Case
