Specifications
01 GENERAL

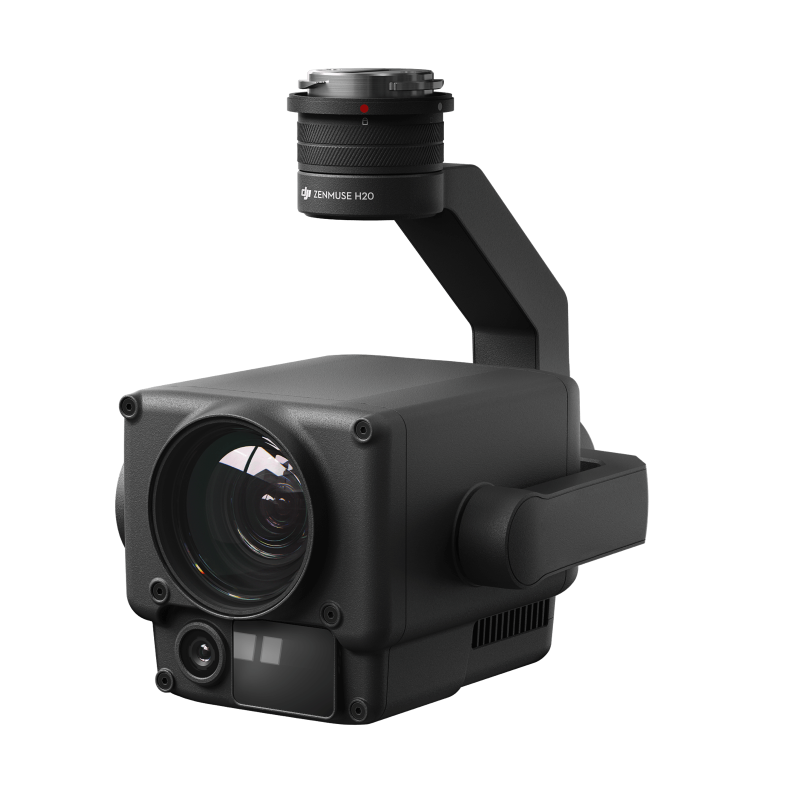

- DIMENSIONS: ZENMUSE H20: 167 MM X 135 MM X 161 MM
- INGRESS PROTECTION RATING: IP 44
- LASER SAFETY: CLASS 1M (IEC 60825 - 1: 2014)
- OPERATING TREMPERATURE: -20° TO 50° C (TEMEPERATURE MEASUREMENT IS ONLY AVAILABLE BETWEEN -10° TO 50° C)
- STORAGE TEMPERATURE: -20° TO 60° C
- SUPPORTED AIRCRAFT: MATRICE 300 RTK
- WEIGHT: ZENMUSE H20: 678±5 G
02 GIMBAL
- ANGULAAR VIBRATION RANGE: ±0.01°
- CONTROLLABLE RANGE: PITCH: -120° TO +30°
- CONTROLLABLE RANGE: YAW: ±320°
- MECHANICAL RANGE: PITCH: 132.5° TO +42.5°
- MECHANICAL RANGE: YA: ±320°
- MECHANICAL RANGE: ROLL: -90° TO 60°
- MOUNT: DETACHABLE
03 ZOOM CAMERA
- AE LOCK : SUPPORTED
- ELECTRONIC SHUTTER SPEED: ~ / 8000 S
- EXPOSURE COMPENSATION : ±3.0 (1 / 3 INCREMENTS)
- EXPOSURE MODE: AUTP, MANUAL
- FOCUS MODE: MF / AF - C / AF -S
- ISO RANGE: VIDEO: 100 - 25600
- ISO RANGE: PHOTO: 100 - 25600
- LENS : FOCUS: 1 M TO ∞ (WIDE), 8 M TO ∞ (TELEPHOTO)
- LENS: APERATURE: F / 2.8 - F / 11 (NORMAL), F / 1.6 - F / 11 (NIGHT SCENE)
- LENS: DFOV: 66.6° -4°
- METERING LOCK: SPOT METERING, CENTER-WEIGHTED METERING
- PHOTO FORMAT: JPEG
- PHOTO SIZE : 5184 X 3888
- SENSOR : 1/11.7
- VIDEO FORMAT: MP4
- VIDEO RESOLUTION: 3840 X 2160 @ 30 FPS, 1920 X 11080 @ 30FPS
- VIDEO SUBTITLES : SUPPORTED
04 WIDE CAMERA
- AE LOCK : SUPPORTED
- EXPOSURE COMPENSATION: ±3.0 (1/3 INCREMENTS)
- EXPOSURE MODE: AUTO
- ISO RANGE: VIDEO: 100 - 25600
- ISO RANGE: PHOTO: 100 - 25600
- LENS : APERTURE: F/2.8
- LENS : FOCAL LENGTH: 4.5 MM (EQUIVALENT: 24 MM)
- LENS : FOCUS: 1 M TO ∞
- LENS : DFOV: 82.9°
- METERING MODE : SPOT METERING, CENTER - EIGHTED METERING
- PHOTO FORMAT: JPEG
- PHOTO SIZE: 4056 X 3040
- SENSOR: 1/2.3
- SHUTTER SPEED : 1 ~ /8000
- VIDEO FORMAT: MP4
- VIDEO RESOLUTION : 1920 X 1080 @ 30 FPS
- VIDEO SUBTITLES: SUPPORTED
05 THERMAL CAMERA (ZENMUSE H20T)
- DIGITAL ZOOM: 1 X, 2 X, 4 X, 8 X
- FFC: AUTO / MANUAL
- IMAGE FORMAT: R-JPEG (16 BIT)
- IMAGE RESOLUTION : `640 X 512
- LENS: DFOV: 40.6°
- LENS: FOCAL LENGTH: 3.5 MM (EQUIVALENT: 58 MM)
- LENS: APERATURE: F /1 .0
- LENS : FOCUS: 5 M TO ∞
- NOISE EQUIVALENT TEMPERATUREDIFFERENCE (NETD): ≤ 59 MK @ F / 1/0
- PALETTE: WHITE HOT / FULGURITE/ IRON RED / HOT IRON / MEDICAL / ARCTIC / RAINBOW 1 / RAAINBOW 2 / TINT / BLACK HOT
- PIXEL PITCH: 12 µM
- SENSOR: UNCOOLED VOX MICROBOLOMETER
- SPECTRAL BAND: 8 - 14 µM
- TEMPERATURE ALERT: SUPPORTED
- VIDEO FORMAT: MP4
- VIDEO RESOLUTION: 640 X 51 @ 30 HZ
06 LASER RANGEFINDER
- ACCESSIBLE EMISSION LIMIT (AEL): 327.84 NJ
- MAX LASER PULSE EMISSION POWER WITHIN 5 NANOSECONDS: 65.6 W
- MEASUREMENT ACCURACY : ± (0.2 M + D X 0.15%)
- MEASUREMENT ACCURACY: D IS THE DISTANCE TO A VERTICAAL SURFACE
- MEASUREMENT RANGE: 3 - 1200 M (TO A VERTICAL SURFACE WITH ≥ 12M DIAMETER AND 20% REFLECTION RATE)
- REFERENCE APERATURE: 18 MM LENGTH, 18 MM WIDTH (20.3 MM DIAMETER IF EQUIVALENT TO CIRCULAR)
- SAFETY REGULATION LEVEL : CLASS 1 M
- WAVE LENGTH : 905 NM
07 FEATURES
- HIGH-RES GRID PHOTO : FRAME AN AREA OF INTEREST IN WIDE CAMERA VIEW, AND THE ZOOM CAMERA WILL AUTOMATICALLY CAPTURE A SET OF 2 MP IMAGES OF THE AREA. THESE IMAGES ARE STORED TOGETHER WITH AN OVERVIEW IMAGE THAT CAN BE VIEWED IN GREATER DETAIL
- HYBRID OPTICAL ZOOM: 23 X (DFOV: 4° , EQV: 556.2MM
- MAX. ZOOM: 200 X (DFOV: 0.5° , EQV: 4800MM)
- NIGHT SCENE : SUPPORTED (ZOOM CAMERA)
- ONE CLICK CAPTURE: ONE CLICK TO SAVE THE VIDEO OR PICTURE OF 03 CAMERAS (ZOOM, WIDE AND THERMAL CAMERA SIMULTANEOUSLY
- POINT TO AIM: DOUBLE CLICK ON THE WIDE / THERMAL CAAMERA VIEW, THEN THE SYSTEM WILL AUTOMATICALLY MOVE THE GIMBAL TO FOCUS ON THE POINT OF INTEREST
- TIMESTAMP: INCLUDING GPS, DATE, AND TIME
08 STORAGE
- RECOMMENDED MICRO SD CARDS: TOSHIBA EXCERIA PRO 32GB MICRO SD HC II SANDISK_EXTREME PRO_32GB_3_A1_MICRO SD V30 HC I TOSHIBA EXCERIA PRO 64GB MICRO SD XC II SANDISK_EXTREME PRO_64GB_3_A2_MICRO SD V30 XC I SAMSUNG_EVO_128GB_MICRO SD 3 XC I TOSHIBA EXCERIA M303E 32GB MICRO SD HC I TOSH
- SUPPORTED FILE SYSTEMS : FAT32 (≤ 32 GB), EXFAT (> 32 GB)
- SUPPORTED SD CARD: MICRO SD CARD (MAX CAPACITY: 128 GB, UHS - 1 SPEED GRADE 3 REQUIRED)
