Specifications
01 GENERAL

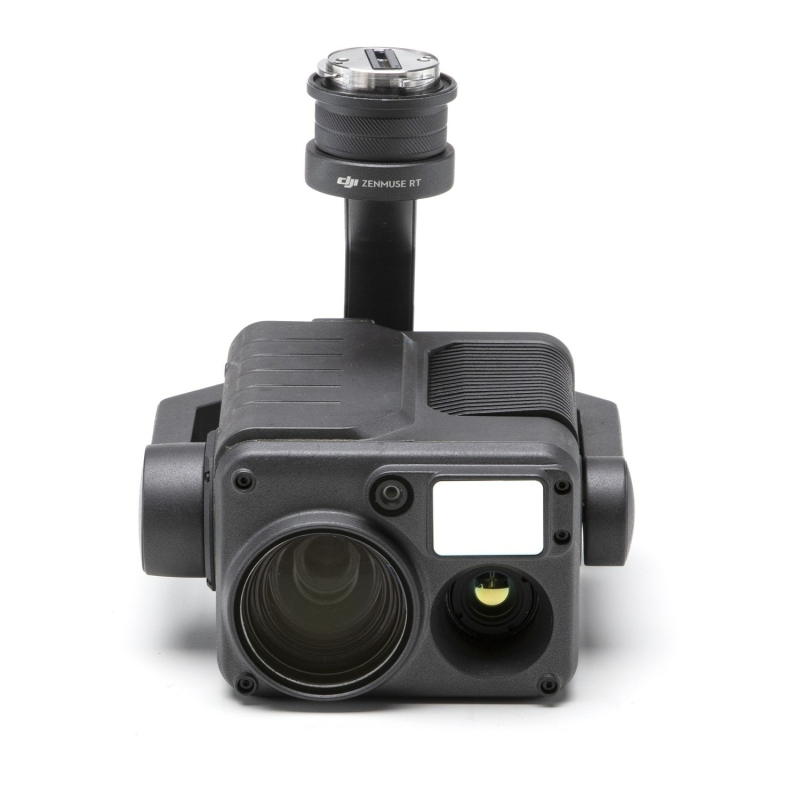

- DIMENSIONS : ZENMUSE H20: 150 MM X 114 MM X 151 MM

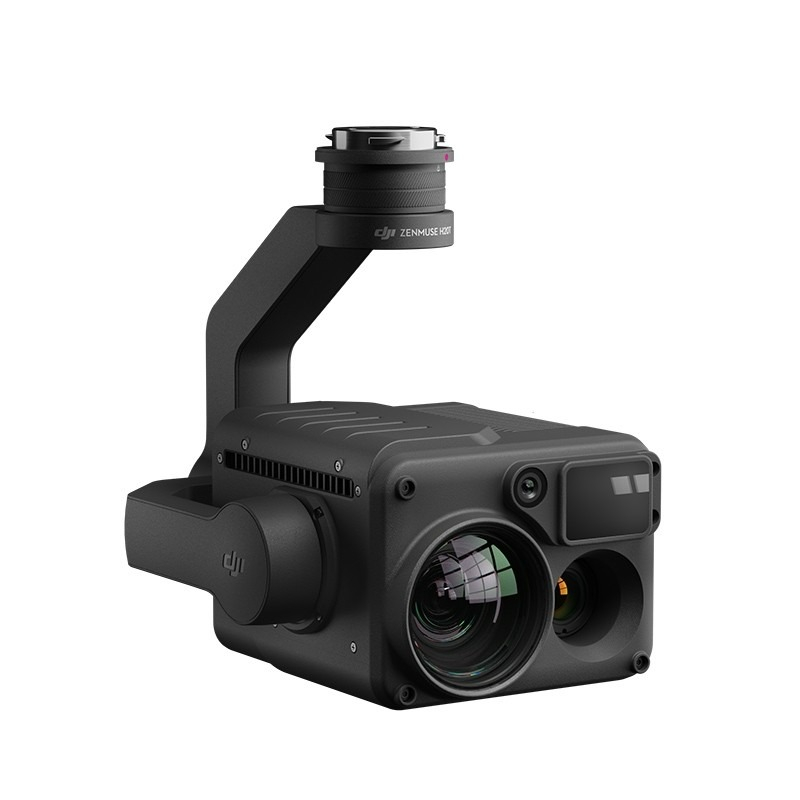

- DIMENSIONS : ZENMUSE H20T: 167 MM X 135 MM X 161 MM
- INGRESS PROTECTION RATING : IP44
- LASER SAFETY: CLASS 1M (IEC 60825-1:2014)
- OPERATING TEMPERATURE: -20° TO 50° C (TEMPERATURE MEASUREMENT IS ONLY AVAILABLE BETWEEN -10° TO 50° C)
- STORAGE TEMPERATURE: -20° TO 60° C
- SUPPORTED AIRCRAFT: MATRICE 300 RTK
- WEIGHT : ZENMUSE H0T: 828±5 G
- WEIGHT : ZENMUSE H20: 678±5 G
02 GIMBAL
- ANGULAR VIBRATION RANGE: ±0.01°
- CONTROLLABLE RANGE: YAW:± 320°
- COTROLLABLE RANGE: PITCXH: -120° TO + 30°
- MECHANICAL RANGE: PITCH: -132.5° TO +42.5°
- MECHANICAL RANGE: YAW: ±330°
- MECHANICAL RANGE: ROLL: -90° TO +60°
- MOUNT: DETATCHABLE
03 ZOOM CAMERA
- AE LOCK : SUPPORTED
- ELECTRONIC SHUTTER SPEED: 1 ~ 1 / 8000 S
- EXPOSURE COMPENSATION : ±3.0 (1 / 3 INCREMENTS)
- EXPOSURE MODE : AUTO, MANUAL
- FOCUS MODE : MF / AF - C/AF - S
- ISO RANGE : PHOTO: 100 - 25600
- ISO RANGE : VIDEO: 100 - 5600
- LENS : APERATURE: F/2.8 - F/11 (NORMAL), F / 1.6 - F/11 (NOGHT SCENE)
- LENS: FOCAL LENGTH: 6.83 - 119.94 MM (EQUIVALENT: 31.7 - 556.2 MM)
- LENS: DFOV: 66.6° -4°
- METERING MODE: SPOT METERING, CENTER-WEIGHTED METERING
- PHOTO FORMAT: JPEG
- PHOTO SIZE: 5184 X 3888
- SENSOR : /1/7
- VIDEO FORMAT: MP4
- VIDEO RESOLUTION : 3840 X 2160 @ 30 FPS, 1920 X 1080 @ 30 FPS
- VIDEO SUBTITLES : SUPPORTED
04 WIDE CAMERA
- AE LOCK: SUPPORTED
- EXPOSURE COMPENNSATION: ± 3.0 (1 / 3 INCREMENTS)
- EXPOSURE MODE: AUTO
- ISO RANGE: VIDEO: 100 - 25600
- ISO RANGE : PHOTO: 100 - 25600
- LENS : APERATURE: F 2.8
- LENS: FOCAL LENGTH: 4.5 MM (EQUIVALET: 24 MM)
- Lens: DFOV: 82.9°
- LENS: FOCUS: 1 M TO ∞
- METERING LOCK: SPOT METERING, CENTER-WEIGHTED METERING
- PHOTO FORMAT: JPEG
- PHOTO SIZE: 4056 X 3040
- SENSOR : 1 / 2.3
- SHUTTER SPEED: 1 ~ 1 / 800
- VIDEO FORMAT: MP4
- VIDEO RESOLUTION: 1920 X 1080 @ 30 FPS
- VIDEO SUBTITLES: SUPPORTED
05 THERMAL CAMERA (ZENMUSE H20T)
- DIGITAL ZOOM: 1 X, 2X, 4X, 8X
- FFC: AUTO / MANUAL
- IMAGE FORMAT: R-JPEG (16 BIT)
- LENS: FOCAL LEGTH: 13.5 MM (EQUIVALENT: 58 MM)
- LENS: FOCUS: 5 M TO ∞
- LENS: APERTURE: F / 1.0
- LENS: DFOV: 40.6°
- NOISE EQUIVALENT TEMPERATURE: DIFFERENCE (NETD) ≤50 MK @ F / 1.0
- PALETTE: WHITE HOT / FULGURITE / IRO RED / HOT IRON / MEDICAL ARCTIC / RAINNBOW 1 / RAINBOW 2 / TINT / BLACK HOT
- PIXEL PITCH: 12 µM
- SCENE RANGE: -40° TO 150° C (HIGH GRAIN)
- SCENE RANGE: -40°C TO 550° C (LOW GRAIN)
- SENSOR: UNCOOLED VOX MICROBOLOMETER
- SPECTRAL BRAND: 8 - 14 µM
- TEMPERATURE ALERT: SUPPORTED
- TEMPERATURE MEASUREMENT METHOD: SPOT METER, AREA MEASUREMENT
- VIDEO FORMAT : MP4
- VIDEO RESOLUTION: 640 X 512 @ 30 HH
06 LASER RANGEFINDER
- ACCESSIBLE EMISSION LIMIT (AEL): 327.84 NJ
- MAX LASER PULSE EMISSION POWER WITHIN 5 NANOSECONDS: 65.6 W
- MEASUREMENT ACCURACY : ± (0.2 + D X 0.15%)
- MEASUREMENT ACCURACY : D IS THE DISTANCE TO A VERTICAL SURFACE
- MEASUREMENT RANGE: 3 - 1200 M (TO A VERTICAL SURFACE WITH ≥ 12 M DIAMETER AND 20% REFLECTION RATE)
- REFERENCE APERATURE: 18MM LENGTH, 18 MM WIDTH (0.3 MM DIAMETER IF EQUIVALENT TO CICULAR)
- SAFETY REGULATION LEVEL : CLASS 1M
- WAVE LENGTH: 905 NM
07 FEATURES
- HIGH-RES GRID PHOTO : FRAME AN AREA OF INTEREST IN WIDE CAMERA VIEW, AND THE ZOOM CAMERA WILL AUTOMATICALLY CAPTURE A SET OF 20 MP IMAGES OF THE AREA. THESE IMAGES ARE STORED TOGETHER WITH AN OVERVIEW IMAGE THAN CAN BE VIEWED INN GREATER DETAIL.
- HYBRID OPTICAL ZOOM: 23 X (DFOV: 4° , EQV: 556.2 MM)
- MAX. ZOOM : 200 X (DFOV: 0.5° , EQV: 4800 MM)
- NIGHT SCENE: SUPPORTED (ZOOM CAMERA)
- ONE CLICK CAPTURE: ONE CLICK TO SAVE THE VIDEO OR PICTURE OF 3 CAMERAS (ZOOM, WIDE AND THERMAL CAMERA) SIMULTANEOUSLY
- POINT TO AIM : DOUBLE CLICK ON THE WIDE . THERMAL CAMERA VIEW, THEN THE SYSTEMS WILL AUTOMATICALLY MOVE THE GIMBAL TO FOCUS ON THE POINT OF INTEREST.
- TIMESTAMP : ICLUDING GPS, DATE, AND TIME
08 STORAGE
- RECOMMENDED MICRO SD CARDS: TOSHIBA EXCERIA PRO 32GB MICRO SD HC II SANDISK_EXTREME PRO_32GB_3_A1_MICRO SD V30 HC I TOSHIBA EXCERIA PRO 64GB MICRO SD XC II SANDISK_EXTREME PRO_64GB_3_A2_MICRO SD V30 XC I SAMSUNG_EVO_128GB_MICRO SD 3 XC I TOSHIBA EXCERIA M303E 32GB MICRO SD HC I TOSH
- SUPPORTED FILE SYSTEMS: FAT32 (≤ 32 GB), EXFAT (> 32 GB)
- SUPPORTED SD CARD: MICRO SD (MAX CAPACITY: 18 GB, UHS-1 SPEED GRADE 3 REQUIRED)
