EFIX

EFIX eBase Kit

R77,199

Inclusive all taxes

Quantity
Product Terms
  • 12 Months warranty
  • 3 Days Return Back Policy
  • 3 Days Cancellation Policy
  • Ship Only

Specifications

01 GNSS PERFORMANCE
  • BEIDOU : B1L, B2L, B3L, B1C, B2A, B2B
  • CHANNELS: 1608 CHANNELS
  • GLONASS : L1, L2
  • GPS : L1C/A/L2P(Y)L2C/L5
  • PPP : B2B-PPP
  • QZSS : L, L2, L5, L6*
  • SBAS: L1, L2
01 GNSS PERFORMANCE
  • GALILEO : E1, E5A, E5B, E6*
02 GNSS ACCURACIES (2)
  • POST-PROCESSING KINEMATICS (PPK): HORIZONTAL: 3 MM + 1 PPM RMS
02 GNSS ACCURACIES (²)
  • AUTONOMOUS: VERTICAL: 0.8M RMS
  • AUTONOMOUS: HORIZONTAL: 1 M RMS
  • CODE DIFFERENTIAL : VERTICAL: 0.8 M RMS
  • CODE DIFFERENTIAL: HORIZONTAL: 0.4 M RMS
  • POSITIOING RATE: UP TO 10 HZ
  • POST-PROCESSING KINEMATICS (PPK): VERTICAL: 5 MM + 1 PPM RMS
  • POST-PROCESSING STATIC: VERTICAL: 5 MM + 0.5 PPM RMS
  • POST-PROCESSING STATIC: HORIZONTAL: 2.5 MM + 0.5 PPM RMS
  • REAL TIME KINEMATICS (RTK): INITIALIZTION RELIABILITY: >99.9%
  • REAL TIME KINEMATICS (RTK) : INITIALIZATION TIME: < 10 SECONDS
  • TIME TO FIRST FIX (³): COLD START: < 45 SECONDS
  • TIME TO FIRST FIX (³): HOT START: < 30 SECONDS
  • TIME TO FIRST FIX (³): SIGNAL RE-ACQUISITION: <2 SECONDS
02 GNSS ACCURACIES (²)
  • REAL TIME KINEMATICS (RTK) : HORIZONTAL: 8 MM + 1 PPM RMS
02 GNSS ACCURACIES ²
  • REAL TIME KINEMATICS (RTK): VERTICAL: 5 MM + 1 PPM RMS
03 HARDWARE
  • ENVIRONMENT: OPERATING: -40°C TO +65°C (-40°F TO +149°F)
  • EVIRONMENT: STORAGE: -40°C TO +85°C (-40°C TO + 185°F)
  • FRONT PANEL: 2 LED
  • FRONT PANEL: 0.96
  • HUMIDITY: 100% CONDENSATION
  • INGRESS PROTECTION: IP67 WATERPROOF AND DUSTPROOF, PROTECTED FROM TEMPORARY IMMERSION TO DEPTH 1M
  • SHOCK : SURVIVE A 2 METER POLE DROP
  • WEIGHT: 1.73 KG (3.81 LB)
03 HARDWARE
  • SIZE (L X W X H) : 160.5 MM X 103 MM (6.32 IN X 4.06 IN)
04 COMMUICATION
  • NETWORK MODEM: DC - HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
  • NETWORK MODEM: LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B20
04 COMMUNCATION
  • BLUETOOTH: BT4.1
  • NETWORK MODEM: EDGE/GPRS/GSM850/900/1800/1900MHZ
  • UHF RADIO (TO THE POWER 4): TRANSMIT POWER: UP O 5 W
04 COMMUNICATION
  • DATA FORMATS: 8 GB MEMORY
  • DATA FORMATS: RINEX2.11 , 3.02 NMEA 0183 OUTPUT
  • DATA FORMATS: RTCM2.X, RTCM3.X, CMR INPUT / OUTPUT
  • NETWORK MODEM: INTEGRATED 4G MODEM
  • OTHERS: NFC

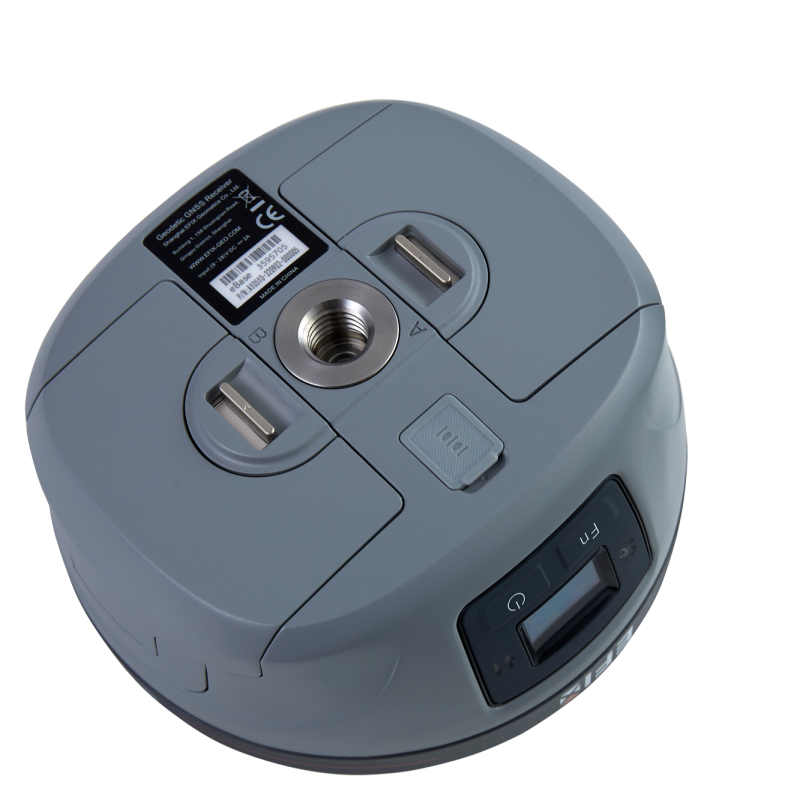

  • PORTS: 1 X 7-PIN LEMO PORT (EXTERNAL POWER, RS - 232)
  • PORTS: 1 X UHF ANTENNA PORT (TNC FEMALE)
  • UHF RADIO (TO THE POWER 4): STADARD INTERNAL RX/TX: 450 - 470 MHZ
  • WI-FI: 802.11 B/G/N, ACCESS POINT MADE
04 COMMUNICATION
  • UHF RADIO (TO THE POWER 4): RANGE: TYPICAL 15 KM WITH FARRADIO, UP TO 25KM WIHT OPTIMAL CONDITIONS
04 COMMUNICATION`
  • UHF RADIO (TO THE POWER 4): PROTOCOL: EFIX, TRANPARENT, TT450, SATEL
04 COMMUNICTION
  • UHF RADIO (TO THE POWER 4): LINK RATE: 9600 BPS / 19200 BPS
05 ELECRTRICAL
  • POWER COSUMPTION: 12 W (DEPENDING ON USER SETTINGS)
05 ELECTRICAL
  • EXTERAL POWER INPUT : 9 V DC TO 28 V DC
  • LI-ION BATTERY CAPACITY: 2 X 7000 MAH, 7.4 V
  • OPERATING TIME ON INTERNAL BATTERY ( TO THE POWER 5): UHF RECEIVER / TRANSMIT (5 W): 8 H TO 12 H
  • OPERATING TIME ON INTERNAL BATTERY ( TO THE POWER 5): STATIC: UP TO 15 H

Boost your working range, pair EFIX eBase with with EFIX F7+ or F8 rovers for the ultimate GNSS experience

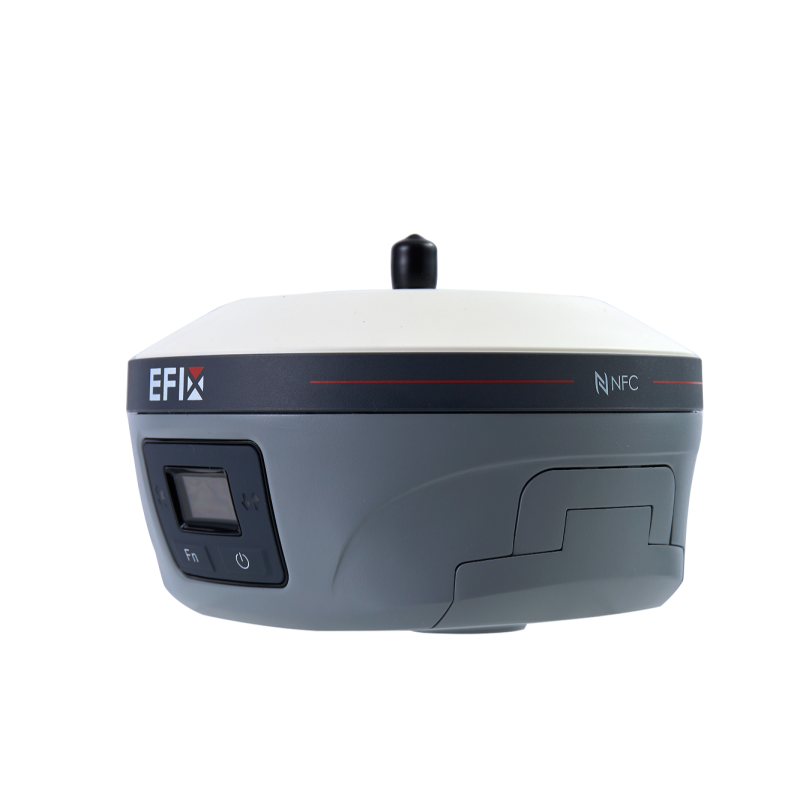

Integrated and portable GNSS Base Solution
· Easy to carry, reducing overall package weight by over 70%.
· Easy to set up, get started in the field at least 3 times more efficiently.
· Integrated 5W UHF and 4G modem for multi-mode RTK corrections transmission via UHF and TCP/IP services.

1608-Channel GNSS and Multi-Constellations Algorithms
· Provide full GPS + GLONASS + Galileo + BeiDou + QZSS costellation tracking, even in harsh environments.
· Output standard DGNSS corrections in RTCM 3.x format for optimum performance.
· 8 GB internal memory to store GNSS raw data for post-procesing or quality control.

Broader Coverage and Longer Duration
·  Low power consumption, in a typical survey operation the 5W
FarRadio UHF modem can operate for over 12 hours with 15km coverage.
·  In more challenging surveys, such as forests and suburban areas, coverage can be up to 5 km.
·  In open areas coverage can reach up to 25 km.

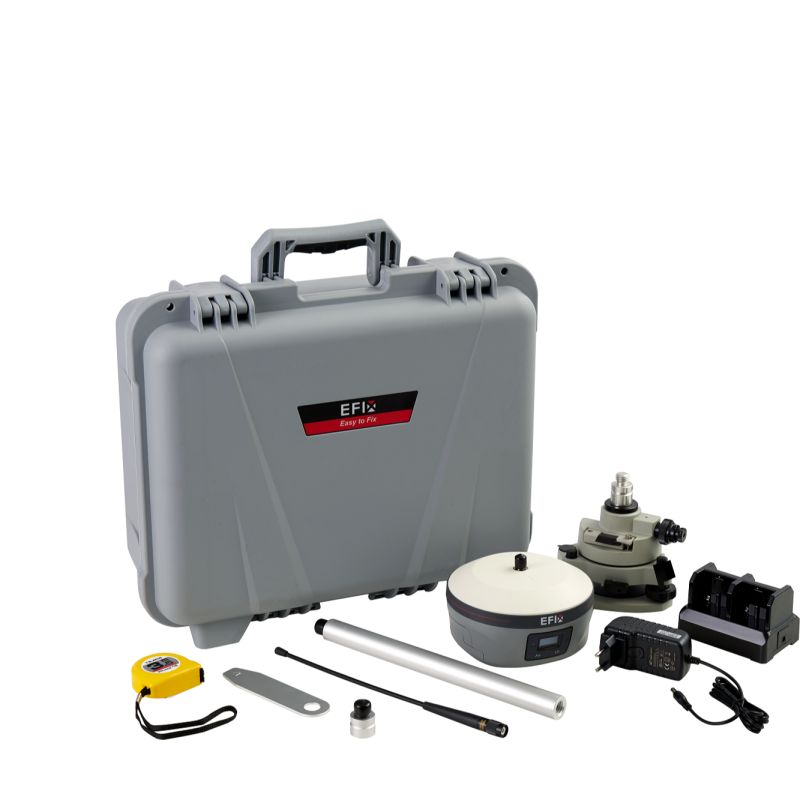

 EFIX eBase Kit Includes:
-eBase W/InnteralL UHF Base Kit
-eBase GNSS Receiver Kit

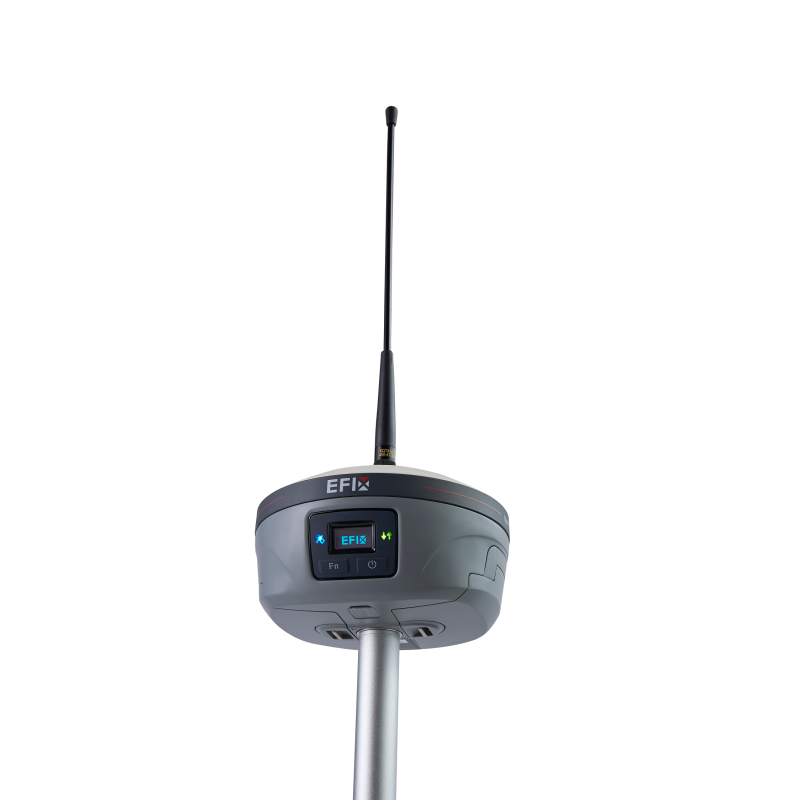

-UHF Whip Antenna
-Tribrach Adaptor
-Tribrach with Optical Plummet
-H.I. Tape
-Extension Pole (30cm)
-Tripod - Wood
-Auxiliary H.I. Tool(SILVER)
-7000MAH Lithium Battery (EFIX)
-C300 Battery Charger W/Power Adapter with Cable

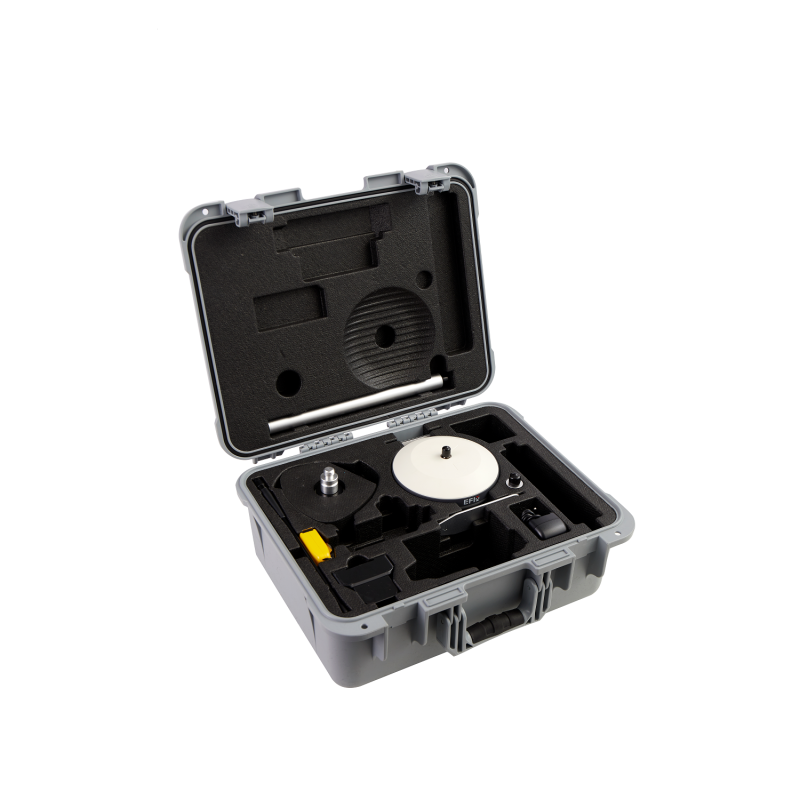

-EFIX Base Hard Carry Case

Payment Policy

Pay the full order amount through the Buy Surveying Instruments platform. Payment will only be released to us once the customer is satisfied with the purchase.


Delivery Policy

Delivery will be arranged in 1 - 3 days once the order is placed through the Buy Surveying Instruments Platform. From there it's in the hands of our courier partner and will be delivered as soon as possible.


Refund Policy

After the order is delivered, the customer has 3 days to cancel the order or request a return. When a return is requested, the money will be transferred from the Buy Surveying Instruments secure holding account back to the purchaser. If for some or other reason the customer is unhappy after the initial 3 days elapsed, we have a 30 day many back guarantees, where we will pay the full order amount minus marketplace fee back into the customer's account.

Please contact us regarding stock. When is stock, lead time 2 - 3 working days. When out of stock you can still purchase but please note lead time of 10 - 14 working days.
