Specifications
04 COMMUNICATION AND DATA RECORDING
- UHF RADIO : TRANSMIT POWER: 0.5 W AND 1 W
01 GNSS PERFORMANCE
- BEIDOU: B1I, B2I, B3I, B1C, B2A, B2B
- GALILEO: E1, E5A, E5B, E6
- GPS : L1C/A, L2C, L2P(Y), L5
- QZSS: L1, L2, L5, L6*
01 GNSS PERFORMANCE
- CHANNELS: 1608 CHANNELS
- GLONASS: L1, L2
- PPP: B2B-PPP
- SBAS: L1, L2
02 GNSS ACCURACIES ²
- CODE DIFFERENTIAL: HORIZONTAL: 0.4 M RMS
- CODE DIFFERENTIAL:: VERTICAL: 0.8 M RMS
- POST - PROCESSING STATIC: VERTICAL: 5 MM + 0.5 PPM RMS
- REAL TIME KINEMATIC (RTK): INITIALIZATION TIME: < 10 SECONDS
- TIME TO FIRST FIX (TO THE POWER 4): COLD START: < 45 SECONDS
02 GNSS ACCURACIES ²
- AUTONOMOUS: VERTICAL: 3.0 M RMS
- AUTONOMOUS: HORIZONTAL: 1.5 M RMS
- POSITIONING RATE ³ : 1 HZ, 5 HZ AND 10 HZ
- POST - PROCESSING STATIC: HORIZONTAL: 2.5 MM + 0.5 PPM RMS
- POST-PROCESSING KINEMATICS (PPK): VERTICAL: 5 MM + 1 PPM RMS
- REAL TIME KINEMATIC (RTK): INITIALIZATION RELIABILITY: > 99.9%
- REAL TIME KINEMATIC (RTK): HORIZONTAL: 8 MM + 1 PPM RMS
- REAL TIME KINEMATICS (RTK): VERTICAL: 15 MM + 1 PPM RMS
- RTK TILT - COMPENSATION: ADDITIONAL HORIZONTAL POLE-TILT UNCERTAINTY TYPICALLY LESS THAN 10 MM + 0.7 MM/° TILT
- TIME TO FIRST FIX (TO THE POWER 4) : SIGNAL RE-ACQUISITION: < 1 SECOND
- TIME TO FIRST FIX (TO THE POWER 4): HOT START: < 10 SECONDS
02 GNSS ACCURACIES²
- POST-PROCESSING KINEMATICS (PPK): HORIZONTAL: 3 MM + 1 PPM RMS
03 HARDWARE
- ENVIRONMENT: OPERATING: -40°C TO +65°C (-40 °F TO +149°F)
- FRONT PANEL: 2 BUTTONS
- SHOCK: SURVIVE 2-METER POLE DROP
- SIZE (L A W X H): 119 MM X 119 MM X 85 MM
03 HARDWARE
- ENVIRONMENT: STORAGE: -40 °C TO +85 °C (-40 °F TO + 185 ° C)
- FRONT PANEL: 4 STATUS LED
- INGRESS PROTECTION: IP67 DUST AND WATERPROOF, PROTECTED FROM TEMPORARY IMMERSION TO DEPTH 1 M
- SIZE (L X W X H): (4.7 IN X 4.7 IN X 3.3 IN)03
- TILT SENSOR: CALIBRATION-FREE IMU FOR POLE-TILT COMPENSATION. IMMUNE TO NMAGNETIC DISTURBANCE
03 HARDWARE
- HUMIDITY : 100% CONDENSATION
04 COMMUNICATION AND DATA RECORDING
- BLUETOOTH: V 4.1
- UHF RADIO: STANDARD INTERNAL RX/TX: 410 - 470 MHZ
04 COMMUNICATION AND DATA RECORDING
- DATA FORMATS: NTRIP CLIENT (ON PDA NETWORK)
- DATA FORMATS: HCN, HRC AND RINEX STATIC FORMATS
- DATA FORMATS: RTCM 2.X, RTCM 3.X INPUT AND OUTPUT
- DATA FORMATS: CMR INPUT AND OUTPUT
- DATA FORMMATS: NMEA 0183 OUTPUT
- DATA STORAGE: 8 GB HIGH-SPEED MMORY
- UHF RADIO: LINK RATE: 9,600 BPS
- UHF RADIO: RANGE: TYPICAL 3 KM, UP TO 8KM WITH OPTIMAL CONDITIONS
- UHF RADIO: PROTOCOL: EFIX, TRANSPARENT, TT450 SATEL (TO THE POWER 5)
- WI-FI: 803.1 B/G/N, ACCESS POINT MADE
04 COMMUNICTION AND DATA RECORDING
- PORTS: 1 X USB TYPE-C PORT (DAT DOWNLOAD, CHARGING, FIRMWARE UPDATE)
04 COMMUNICTION AND DATA RECORDING
- PORTS: 1 X UHF ANTENNA PORT (TNC FEMALE)
05 ELECTRICAL
- LI-ION BATERY CAPACITY: BUILT-IN NON-REMOVAABLE BATTERY 6,800 MAH
- OPERATING TIME ON INTERNAL BATTERY: UHF RTK BASE: UP TO 10.5 H
05 ELECTRICAL
- EXTERNAL POWER: 5 V / 2 A
- OPERATING TIME ON INTERNAL BATTERY: STATIC: UP TO 25H
- OPERATING TIME ON INTERNAL MEMORY: RTK ROVER: UP TO 24H
05 ELECTRICL
- POWER CONSUMPTION: 2.2 W (DEPENDING ON USER SETTINGS)
Description

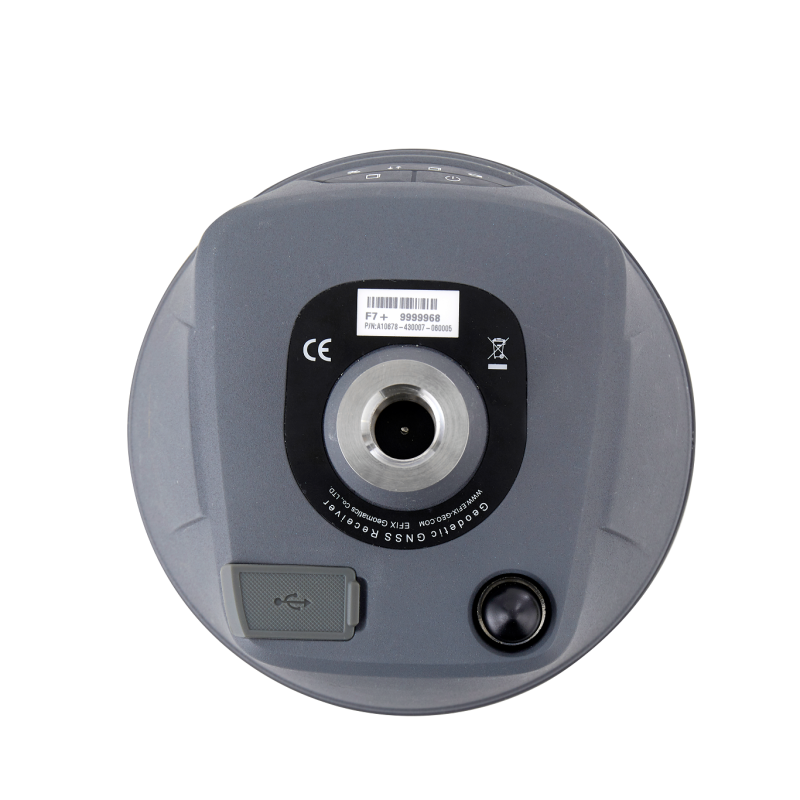

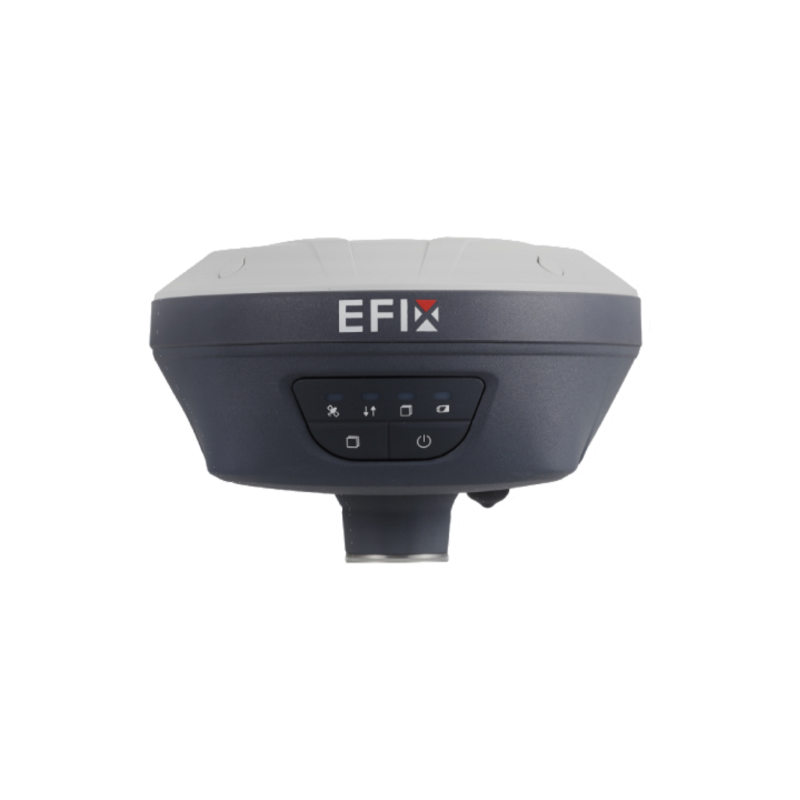

PALM-SIZE GNSS+IMU RECEIVER
Reduced weight, but performance is never compromised.
The F7+ GNSS receiver integrated IMU-RTK technology provides a robust and accurate positioning in any circumstances. Unlike the standard MEMS-based GNSS receivers, the F7+ GNSS IMU-RTK combines state-of-the-art GNSS RTK engine, a calibration-free high-end IMU sensor and advanced GNSS tracking capabilities to dramatically increase RTK availability and reliability.
The F7+ automatic pole-tilt compensation boosts survey and stakeout speed by up to 30%. Construction and land surveying projects are achieved with high productivity and reliability pushing the boundaries of conventional GNSS RTK survey.
What's more, with all these features and performances, F7+ is successfully designed to be only palm-size, which is only 0.73kg and perfectly fit in hand.

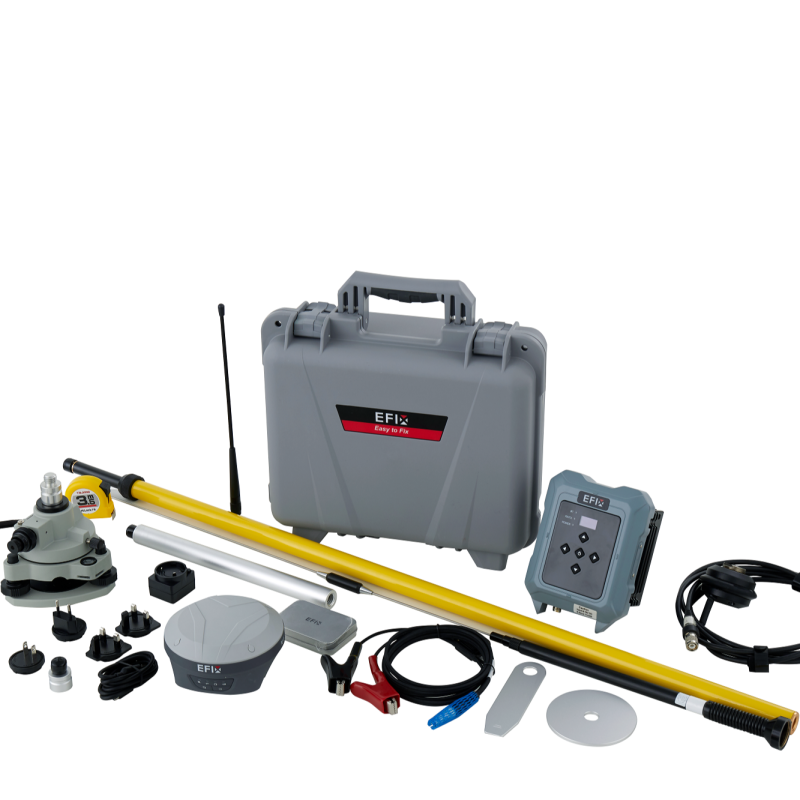

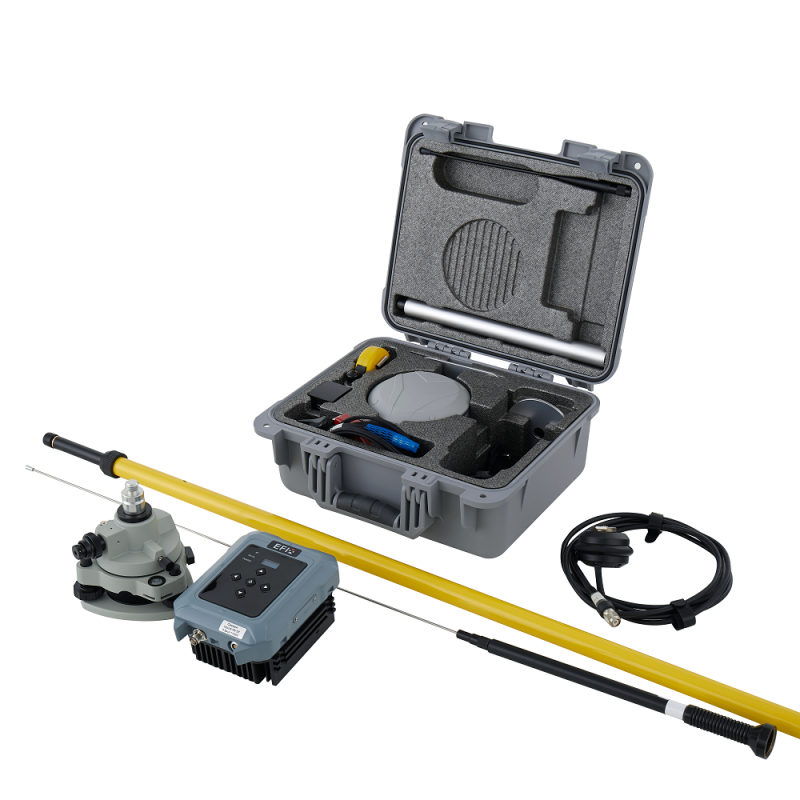

F7+ BASE KIT INCLUDES:
-F7+ GNSS RECEIVER
-EFIX BASE TRNSPORT HARD CASE
-TRANSPORT HARD CASE FOAM/POCKET RTK
-HARD CASE NAMEPLATE/LABEL WITH EFIX LOGO
-F7+ POWER ADAPTER
-UHF WHIP ANTENNA (450-470 MHZ)
-TRIBRACH ADAPTER
-H.I TAPE
-AUXILIARY
-EXTENSION POLE (30CM)
-HARD CASE NAMEPLATE/LABEL WITH EFIX LOGO
-USB TYPE-C CABLE
-FL3 DATALINK (410-470 MHZ)
-EXTERNAL RADIO POWER CABLE (2M 5PIN)
-POLE MOUNTING
-CM3 ENGLISH MANUAL
-TRIBRACH W/ OPTICAL PLUMMET
-DATALINK ANTENNA
-DATALINK ANTENNA MOUNTING POLE KIT
