Specifications
03 HARDWARE
- FRONT PANEL : 2 BUTTONS
01 GNSS PERFORMANCE
- BEIDOU: B1I, B2I, B3I, B1C, B2A, B2B
- CHANNELS: 1608 CHANNELS
- GALILEO: E1, E5A, E5B, E6
- GLONASS: L1, L2
- GPS : L1C/A, L2C, L2P(Y), L5
- PPP: B2B-PPP
- QZSS: L1, L2, L5, L6*
- SBAS: L1, L2
02 GNSS ACCURACIES ²
- AUTONOMOUS: VERTICAL: 3.0 M RMS
- AUTONOMOUS: HORIZONTAL: 1.5 M RMS
- CODE DIFFERENTIAL: HORIZONTAL: 0.4 M RMS
- CODE DIFFERENTIAL:: VERTICAL: 0.8 M RMS
- POSITIONING RATE ³: 1 HZ, 5 HZ AND 10 HZ
- POST - PROCESSING STATIC: HORIZONTAL: 2.5 MM + 0.5 PPM RMS
- POST - PROCESSING STATIC : VERTICAL: 5 MM + 0.5 PPM RMS
- POST-PROCESSING KINEMATICS (PPK): VERTICAL: 5 MM + 1 PPM RMS
- REAL TIME KINEMATIC (RTK): INITIALIZATION RELIABILITY: > 99.9%
- REAL TIME KINEMATIC (RTK): INITIALIZATION TIME: < 10 SECONDS
- REAL TIME KINEMATIC (RTK): HORIZONTAL: 8 MM + 1 PPM RMS
- REAL TIME KINEMATICS (RTK): VERTICAL: 15 MM + 1 PPM RMS
- TIME TO FIRST FIX (TO THE POWER 4): COLD START: < 45 SECONDS
- TIME TO FIRST FIX (TO THE POWER 4): HOT START: < 10 SECONDS
- TIME TO FIRST FIX (TO THE POWER 4): SIGNAL RE-ACQUISITION: < 1 SECOND
02 GNSS ACCURACIES ²
- RTK TILT - COMPENSATION : ADDITIONAL HORIZONTAL POLE-TILT UNCERTAINTY TYPICALLY LESS THAN 10 MM + 0.7 MM/° TILT
02 GNSS ACCURACIES²
- POST-PROCESSING KINEMATICS (PPK): HORIZONTAL: 3 MM + 1 PPM RMS
03 HARDWARE
- ENVIRONMENT: STORAGE: -40 °C TO +85 °C (-40 °F TO + 185 ° C)
- ENVIRONMENT: OPERATING: -40°C TO +65°C (-40 °F TO +149°F)
- FRONT PANEL: 4 STATUS LED
- HUMIDITY: 100% CONDENSATION
- INGRESS PROTECTION: IP67 DUST AND WATERPROOF, PROTECTED FROM TEMPORARY IMMERSION TO DEPTH 1 M
- SHOCK: SURVIVE 2-METER POLE DROP
- SIZE (L A W X H): 119 MM X 119 MM X 85 MM
- SIZE (L X W X H): (4.7 IN X 4.7 IN X 3.3 IN)03
- TILT SENSOR: CALIBRATION-FREE IMU FOR POLE-TILT COMPENSATION. IMMUNE TO NMAGNETIC DISTURBANCE
04 COMMUNICATION AND DATA RECORDING
- BLUETOOTH: V 4.1
- DATA FORMATS: NTRIP CLIENT (ON PDA NETWORK)
- DATA FORMATS: HCN, HRC AND RINEX STATIC FORMATS
- DATA FORMATS: RTCM 2.X, RTCM 3.X INPUT AND OUTPUT
- DATA FORMATS: CMR INPUT AND OUTPUT
- DATA FORMMATS: NMEA 0183 OUTPUT
- DATA STORAGE: 8 GB HIGH-SPEED MMORY
- UHF RADIO: PROTOCOL: EFIX, TRANSPARENT, TT450 SATEL (TO THE POWER 5)
- UHF RADIO: LINK RATE: 9,600 BPS
- UHF RADIO: RANGE: TYPICAL 3 KM, UP TO 8KM WITH OPTIMAL CONDITIONS
- UHF RADIO: STANDARD INTERNAL RX/TX: 410 - 470 MHZ
- WI-FI: 803.1 B/G/N, ACCESS POINT MADE
04 COMMUNICATION AND DATA RECORDING
- UHF RADIO: TRANSMIT POWER: 0.5 W AND 1 W
04 COMMUNICTION AND DATA RECORDING

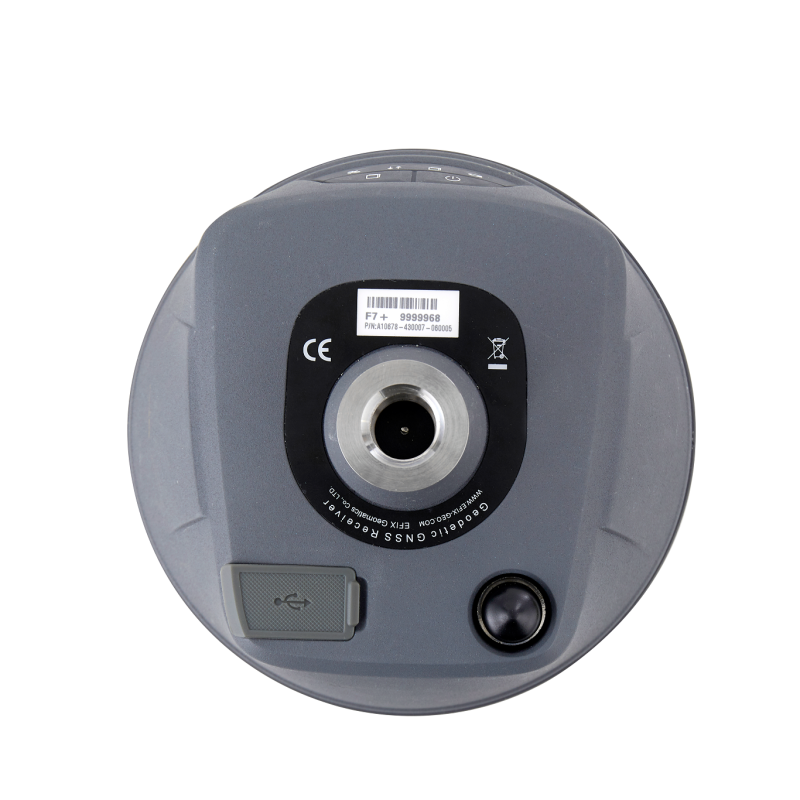

- PORTS: 1 X UHF ANTENNA PORT (TNC FEMALE)
- PORTS: 1 X USB TYPE-C PORT (DAT DOWNLOAD, CHARGING, FIRMWARE UPDATE)
05 ELECTRICAL
- EXTERNAL POWER: 5 V / 2 A
- LI-ION BATERY CAPACITY: BUILT-IN NON-REMOVAABLE BATTERY 6,800 MAH
- OPERATING TIME ON INTERNAL BATTERY: STATIC: UP TO 25H
- OPERATING TIME ON INTERNAL MEMORY: RTK ROVER: UP TO 24H
05 ELECTRICAL
- OPERATING TIME ON INTERNAL BATTERY : UHF RTK BASE: UP TO 10.5 H
05 ELECTRICL
- POWER CONSUMPTION: 2.2 W (DEPENDING ON USER SETTINGS)
Description

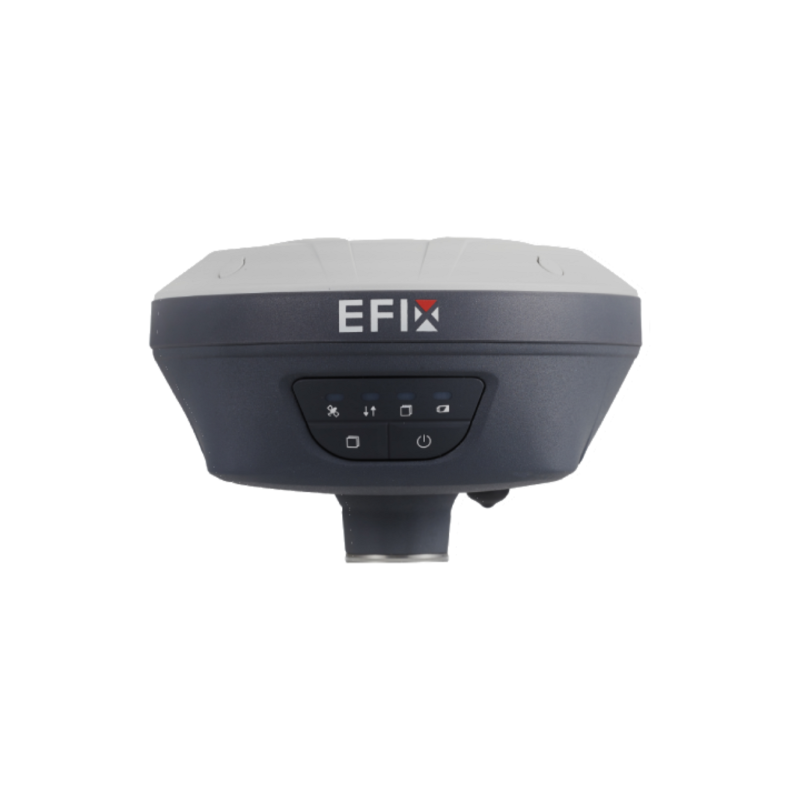

PALM-SIZE GNSS+IMU RECEIVER
Reduced weight, but performance is never compromised.
The F7 GNSS receiver integrated IMU-RTK technology provides a robust and accurate positioning in any circumstances. Unlike the standard MEMS-based GNSS receivers, the F7 GNSS IMU-RTK combines state-of-the-art GNSS RTK engine, a calibration-free high-end IMU sensor and advanced GNSS tracking capabilities to dramatically increase RTK availability and reliability.
The F7 automatic pole-tilt compensation boosts survey and stakeout speed by up to 30%. Construction and land surveying projects are achieved with high productivity and reliability pushing the boundaries of conventional GNSS RTK survey.
What's more, with all these features and performances, F7 is successfully designed to be only palm-size, which is only 0.73kg and perfectly fit in hand.

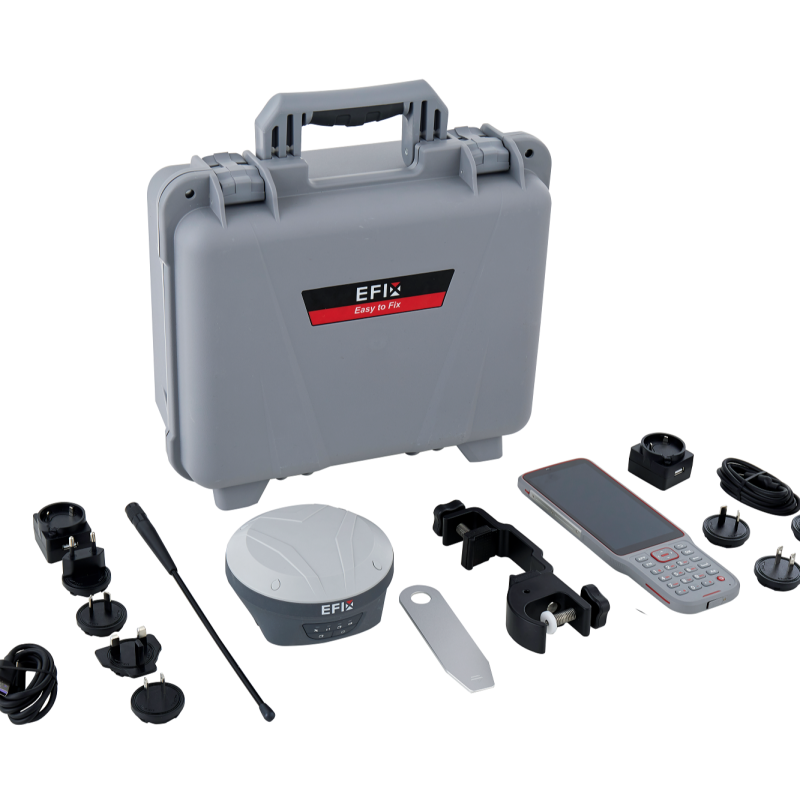

F7 + ROVER KIT INCLUDES:
-F7 + GNSS RECEIVER
-HARD CASE NAMEPLTE/LABEL WITH EFIX LOGO

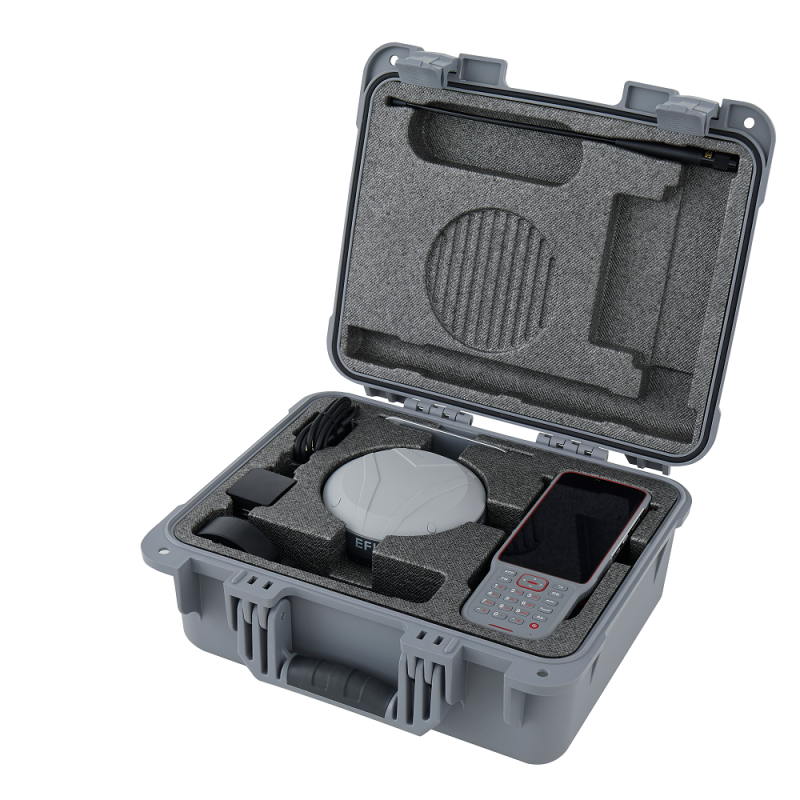

-F7 + ROVER TRANSPORT HARD CASE
-F7 + POWER ADAPTER
-UHF WHIP ANTENNA (450-470 MHZ)
-AUXILIARY H.I TOOL
-HARD CASE NAAMEPLATE/LABELWITH EFIX LOGO
-USB TYPE-C CABLE
-FC2 HANDHELD GNSS DATA COLLECTOR
-EFIELD DATA COLLECTION SOFTWARE (ANDROID)
-ANDROID STYLUS
-FC2 CONTROLLER BRACKET (NON MAGNETIC)/ FC
-CM3 ENGLISH MANUAL
-2M RANGE POLE W/BAG
Store Policies
Payment Policy
Pay the full order amount through the Buy Surveying Instruments platform. Payment will only be released to us once the customer is satisfied with the purchase.
Delivery Policy
Delivery will be arranged in 1 - 3 days once the order is placed through the Buy Surveying Instruments Platform. From there it's in the hands of our courier partner and will be delivered as soon as possible.
Refund Policy
After the order is delivered, the customer has 3 days to cancel the order or request a return. When a return is requested, the money will be transferred from the Buy Surveying Instruments secure holding account back to the purchaser. If for some or other reason the customer is unhappy after the initial 3 days elapsed, we have a 30 day many back guarantees, where we will pay the full order amount minus marketplace fee back into the customer's account.
Offer to Buyer
Please contact us regarding stock. When is stock, lead time 2 - 3 working days, out of stock can still purchase with a lead time of 10 - 14 working days.
