Specifications
01 GNSS PERFORMANCE
- BEIDOU: B1L, B2L, B3L, B1C, B2A, B2B
- CHANNELS: 1608 CHANNELS
- GALILEO: E1, E5A, E5B, E6*
- GLONASS: L1, L2, L3
- GPS: L1C/A, L2C, L2P(Y), L5
- PPP: B2B-PPP
- QZSS: L1, L2, L5, L6*
- SBAS: L1, L2
02 GNSS ACCURACIES (²)
- AUTONOMOUS: VERTICAL: 2.5 M RMS
- AUTONOMOUS: HORIZONTAL: 1.5 M RMS
- CODE DIFFERENTIAL: HORIZONTAL: 0.4 M RMS
- CODE DIFFERENTIAL: VERTICAL: 0.8 M RMS
- POSITIONING RATE (³): 1HZ, 5 HZ AND 10 HZ
- POST - PROCESSING KINEMATICS (PPK): HORIZONTAL: 3 MM + 1 PPM RMS
- POST - PROCESSING KINEMATICS (PPK): VERTICAL: 5 MM + 1 PPM RMS
- POST - PROCESSING STATIC: HORIZONTAL: 2.5 MM + 0.5 PPM RMS
- POST - PROCESSING STATIC: VERTICAL: 5 MM + 0.5 PPM RMS
- REAL TIME KINEMATIC (RTK): INITIALIZATION RELIABILITY: >99.9%
- REAL TIME KINEMATIC (RTK): HORIZONTAL: 8 MM + 1 PPM RMS
- REAL TIME KINEMATIC (RTK): VERTICAL: 15 MM + 1 PPM RMS
- REAL TIME KINEMATIC (RTK): INITIALIZATION TIME: < 10 seconds
- TIME TO FIRST FIX (TO THE POWER 4): COLD START: < 45 SECONDS
- TIME TO FIRST FIX (TO THE POWER 4): HOT START: < 10 SECONDS
- TIME TO FIRST FIX (TO THE POWER 4): SIGNAL RE-ACQUISITION: < 1SECONDS
- VISION SURVEY: TYPICAL 2-4 CM, RANGE 2-10 M
03 IMU SENSOR
- ADDITIONAL HORIZONTAL POLE-TILT: TYPICALLY, LESS THAN 2.5 CM WITH 30°
- IMU TILT ANGLE: 0-60°
- IMU TYPE: 4D AUTO-IMU
- IMU UPDATE RATE: 200 HZ
04 HARDWARE
- 04 HARDWARE: IMMUNE TO MAGNETIC DISTURBANCE
- DROP: SURVIVE A 2-METER POLE DROP
- ENVIRONMENT: STORAGE: -40°C TO +85°C (-40°F TO + 185°F)
- ENVIRONMENT: OPERATING: -40°C TO +65°C (-40°F TO + 149°F)

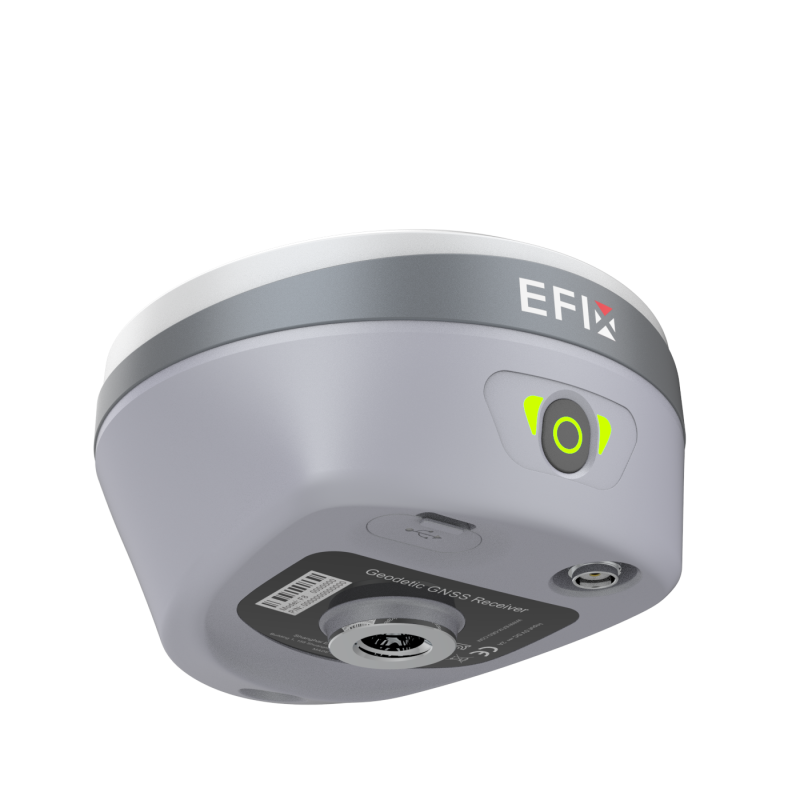

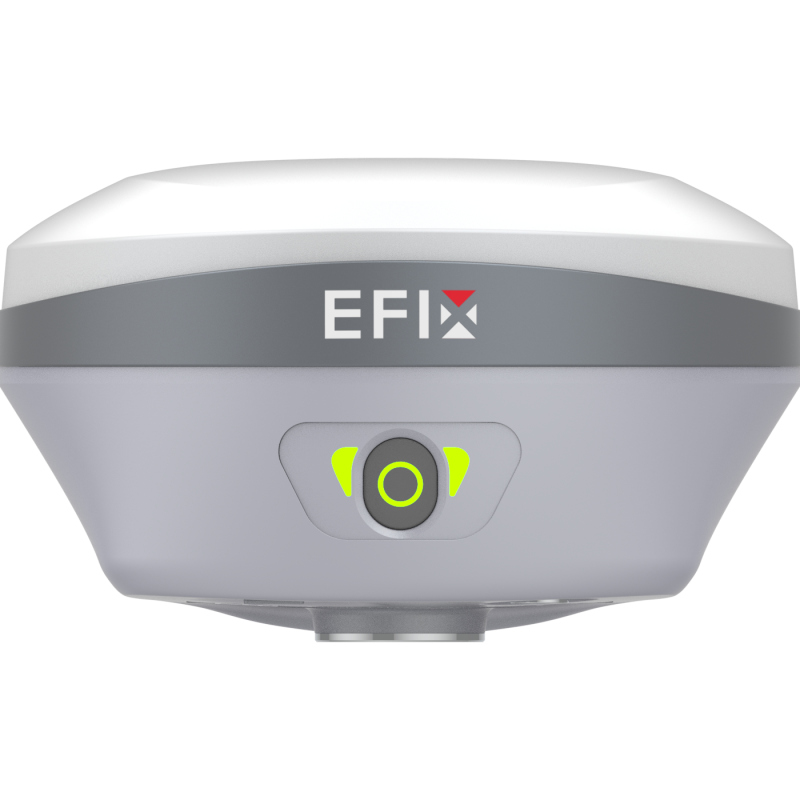

- FRONT PANEL: 1 LED + 1 BUTTON
- HUMIDITY: 100% NON-CONDENSATION
- INGRESS PROTECTION: IP67 WATERPROOF AND DUSTPROOF, PROTECTED FROM TEMPORARY IMMERSION TO DEPTH OF 1 M
- SHOCK RESISTANCE GRADE: IK08
- SIZE (L X W X H): (134 MM X 80 MM) (5.28 IN X 3.15 IN)
- TILT SENSOR: CALIBRATION-FREE IMU FOR POLE-TILT COMPENSATION.
- WEIGHT: 750 G (1.65 LB)
05 CAMERA
- FIELD OF VIEW: 75°
- IMAGE GROUP CAPTURE: TYPICAL 2 HZ CAPTURING RATE, UP TO 25 HZ MAX. CAPTURING TIME: 60 S, SIZE OF AN IMAGE GROUP APPR. 60 MB
- SENSOR PIXELS: 2 MP
- VIDEO FRAME RATE: 25 FPS
06 COMMUNICATION
- BLUETOOTH: V 4.2
- DATA FORMATS: NTRIP CLIENT, NTRIP CASTER
- DATA FORMATS: HCNN, HRC AND RINEX STATIC FORMATS
- DATA FORMATS: RINEX2.11, 3.02 NMEA 0183 OUTPUT
- DATA FORMATS: RTCM2.X, RTCM3.X, CMR INPUT / OUTPUT, FULL STAR
- DATA STORAGE: 8 GB HIGH-SPEED MEMORY
- OTHERS: NFC

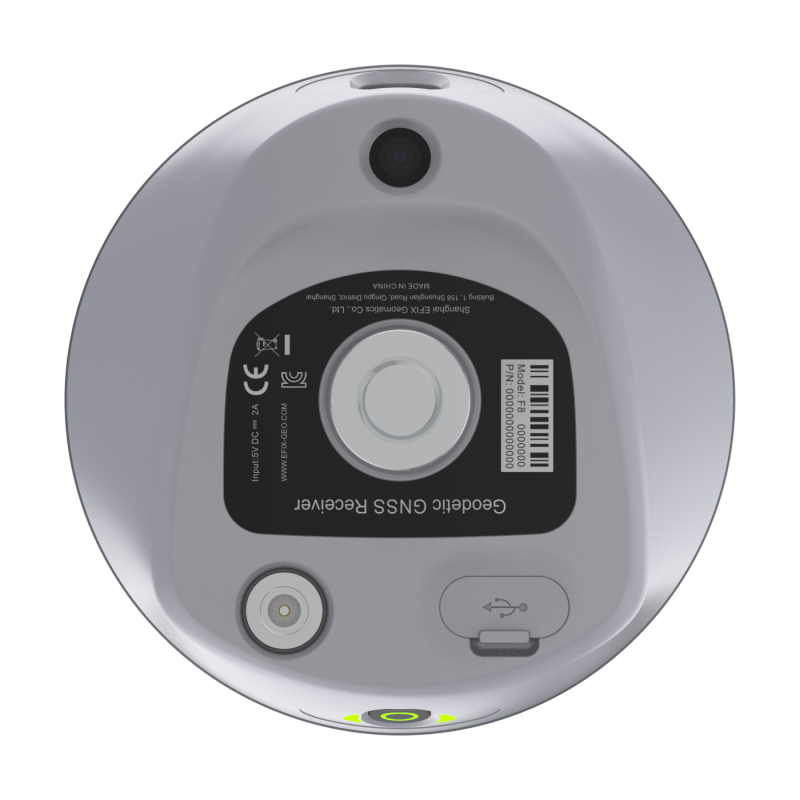

- PORTS: 1 X USB TYPE-C PORT (EXTERNAL POWER, DATA DOWNLOAD, FIRMWARE UPDATE) ,1 X UHF ANTENNA PORT (TNC FEMALE)
- UHF RADIO (TO THE POWER 5): STANDARD INTERNAL TX/RX: 410 - 470 MHZ
- UHF RADIO (TO THE POWER 5): RANGE: TYPICAL 3 KM, UP TO 8 KM WITH OPTIMAL CONDITIONS
- UHF RADIO (TO THE POWER 5): LINK RATE: 9,600 BPS TO 19,200 BPS
- UHF RADIO (TO THE POWER 5): PROTOCOL: EFIX, TRANSPARENT, TT450, SATEL (TO THE POWER 6)
- UHF RADIO (TO THE POWER 5): TRANSIT POWER: 0.5 W, 1W
- WI-FI: 802.11 B/G/N/AC, ACCESS POINT MODE
07 ELECTRICAL
- LI - ION BATTERY CAPACITY: RECHARGEABLE AND BUILT-IN LITHIUM BATTERY 4900MAH, 7.2 V
- OPERATING TIME ON INTERNAL BATTERU (TO THE POWER 7): STATIC: UP TO 22 H
- OPERATING TIME ON INTERNAL BATTERY (TO THE POWER 7): RTK ROVER, UHF / 4G MODE W/O CAMERA: UP TO 16.5 H
- OPERATING TIME ON INTERNAL BATTERY (TO THE POWER 7): RTK ROVER, VISION STAKEOUT/VISION SURVEY: UP TO 9.5 H
- OPERATING TIME ON INTERNAL BATTERY (TO THE POWER 7): UHF RTK BASE: UP TO 10H
- POWER CONSUMPTION: TYPICAL 2.2 W (DEPENDING ON USER SETTINGS)
Description
The eFix F8 seamlessly integrates cutting-edge VISION, GNSS, and IMU technologies to cater to the requirements of professional surveyors. It delivers exceptional accuracy and efficiency for surveying tasks.

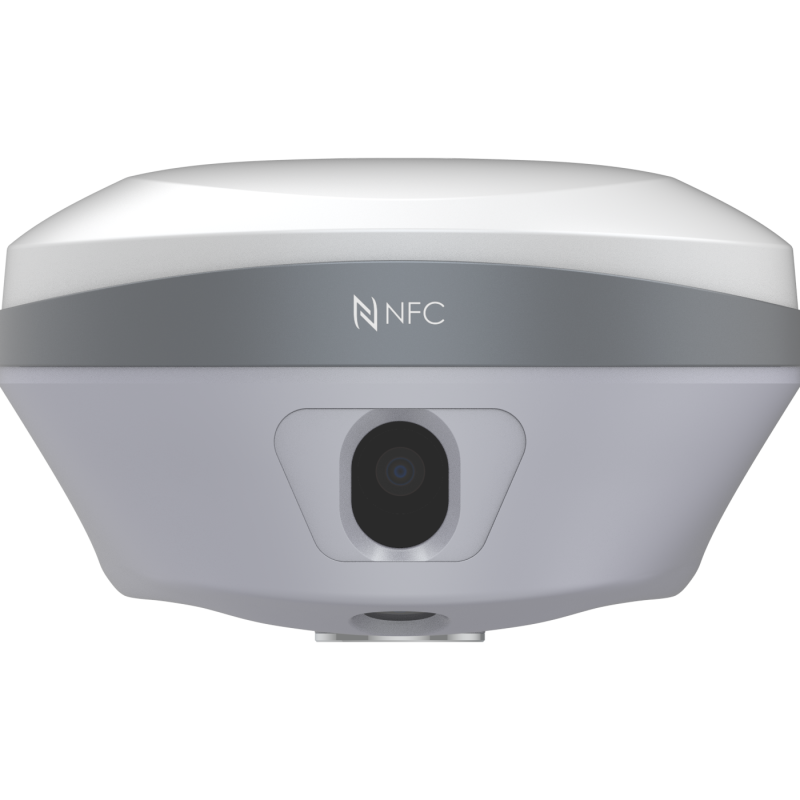

Through the incorporation of duplex cameras, the F8's advanced vision system empowers surveyors to effortlessly overcome obstacles and survey challenging terrain, including hard-to-fix, hard-to-reach, and perilous points. Real-time visual feedback facilitates precise stakeout without the complexity of offset methods, leading to enhanced efficiency and accuracy.
By harnessing the capabilities of the F8, surveyors can streamline their workflow, boost productivity, and achieve outstanding results in every project they undertake.
FULL CONSTELLATION SUPPORT AND ADVANCED RTK ENGINE: RTK SIGNAL BOOSTED BY 60%
• 1608 signal channels and advanced Full-Star algorithm to track full constellation and frequencies.
• High-efficiency SoC provides a 60% increase in processing speed.
EFFORTLESS AR VISION NAVIGATION + VISION STAKEOUT
• Convenient AR vision navigation with large arrows and accurate real-time distance indication.
• Immersive AR Visual Stakeout to vividly display ground stakeout points in the eField software, increasing efficiency by 50%.
VISION SURVEY: ACCURATELY MEASURE COMPLEX SCENES IN REAL-TIME
•
Easily obtain high-precision 3D coordinates from real-time video,
enabling accurate measurements of challenging scenes, including
signal-obscured, hard-to-reach, and hazardous points.
•
High-speed dynamic panoramic shooting, high-quality and distortion-free
image capture, automated image matching with up to 85% overlap rate.
EFFICIENT 3D MODELING FROM FIELD TO OFFICE
•
Capture POS photos with F8's Vision Survey for individual building
modeling and collaborative drone modeling to complement aerial surveys.
• Seamlessly integrate F8's engineering data into industry-standard software such as ContextCapture for 3D modeling.
FULLY INTEGRATED GNSS AND 4D AUTO-IMU
• Automatic 4D IMU initialization during motion eliminates initialization thresholds.
• Maintain IMU initialization throughout field operations to ensure continuous accuracy.
eField: EMPOWER ENGINEERING & CONSTRUCTION PROFESSIONALS
• Effortless stakeout with automatic rotation of the CAD base map based on the surveyor's perspective.
• Smooth handling of large CAD drawings for efficient graphical operations.
• Optimize Triangulated Irregular Networks (TIN) for accurate earthwork calculations using advanced filtering techniques.
• Simplify road stakeout with a graphical representation of cut-fill values imported via LandXML.
F8 BASE KIT INCLUDES:
- F8 GNSS Receiver
- EFIX Base Transport Hard Case
- Transport Hard Case Floam/Pocket RTK
- inner box for hardcase
- outside box for hardcase
- Hard case nameplate/label with EFIX LOGO
- Power Adapter (5V2.4A)
- UHF Whip Antenna (450-470 MHz)
- Tribrach Adaptor
- Tribrach w/ Opti
- H.I. Tape
- H.I. Tape (CHJC)
- H.I. Tape
- Auxiliary H.I. Tool
- Extension Pole(30cm)
- USB Tyep-C Cable
- FL3 Datalink (410-470 MHz)
- Datalink Antenna
- External radio power cable (2m 5pin)
- Pole Mounting
- EFIX Info card
- EFIX Warranty Card
- Datalink Antenna Mounting Pole Kit
- Vision Survey License
- 3D Modeling License
