Specifications
01 SYSTEM
- EXTESION: MICRO SD CARD, UP TO 128 GB
- FLASH MEMORY: 65 GB
- GPS : MEDIATEK MT6762 OCTA CORE 2.0 GHZ
- OPERATING SYSTEM: ANDROID 8.1
- RAM: 4 GB
02 PHYSICAL
- CAMERA: 3-MEGAPIXEL REAR CAMERA WITH AUTO-FOCUS FLASHLIGHT
- DISPLAY: CAPACTIY MULTI-TOUCH SCREEN
- DISPLAY: 5.5
- DUST AND WATERPROOF: IP67
- ENVIRONMENT: STORAGE: -40°C TO + 70°C
- ENVIRONMENT: (-40 °F TO +158 °C)
- ENVIRONMENT: OPERATING: -20°C TO +55°C
- ENVIRONMENT: (-4°C TO + 131 °F)
- SHOCK AND VIBRATION: 2 M (6.5 FT) TALL ONTO CONCRETE
- SIZE (L X W X H): (8.9 IN X 3.2 IN X 0.79 IN)
- SIZE (L X W X H): 25 MM X 80 MM X 17 MM
- WEIGHT: 375 G (13.2 OZ) WITH BATTERY
02 PHYSICAL
- DISPLAY: HS 1440 X 720 + 296 PPI SCRATCH RESISTANT GLASS
- KEYPAD: ALPHANUMERIC KEYBOARD
03 COMMUNICATIONS
- BLUETOOTH: V5.0
- NETWORK MODEM: TD-SCDMA B34/B39
- NETWORK MODEM: EV-DO BC0
- NETWORK MODEM: GSM 850/900/1800/1900
- NETWORK MODEM: WCDMA B1/B2/B4/B5/B8
- NETWORK MODEM: TDD-LTE B34/B38/B39/B40/B41
- NETWORK MODEM: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 AB
- USB : TYPE C, OTG
- WI-FI: 802.11 A/B/G/N/AC/D/E/H/I/K/R/V/W
04 ELECTRICAL
- CHARGING TIME: 4 H (TYPICAL)
- LI-ION BATTERY CAPACITY: 6,500 MAH
- OPERATING TIME: 14 H
05 SENSORS
- FEATURES : G-SENSOR/LIGHT SENSOR/NFC/GYROSCOPE/E-COMPASS/SPEAKER
06 CERTIFICATIONS
- CERTIFICATES: CE; FCC; MIL-STD-810H; ROHS; WPC
Description

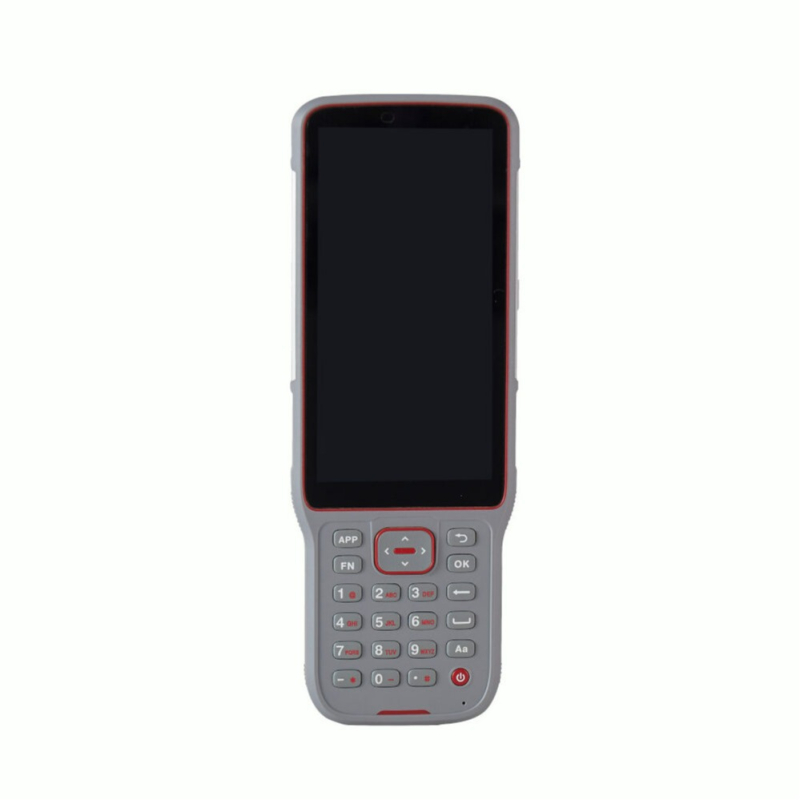

FC2 is a high-performance smart data controller developed by EFIX. FC2 integrates powerful navigation functions with better sensitivity, helping to achieve more accurate and faster positioning services.
This user Guide will provide useful information about your controller. It will also guide you through your first steps of using FC2 in the field.
1.1 Battery Considerations
GNSS HANDHLED CONTROLLER KIT:
-FC2 HANDHELD GNSS DATA COLLECTOR
-EFIELD DATA COLLECTION SOFTWARE (ANDROID)
-USB TYPE-C DATA CABLE
-ANDROID STYLUS
-POWER ADAPTER 5V2A
-FC2 CONTROLLER BRACKET (NON MAGNETIC)/FC2 CONTROLLER
