Specifications
01 MECHANICAL
- DIMENSIONS: 126 X 126 X 142 MM
- INGRESS PROTECTION : IP67
- OPERATING TEMPERATURE: -20 TO +65 °C
- WEIGHT: 950 G
02 ELECTRICAL
- AUTONOMY: 22 HRS OF LOGGING
- BATTERY : LI-ION 5200 MAH, 7.2 V37.44 WH
- CHARGING : USB TYPE-C 5 V, 3 A
02 ELECTRICALC
- AUTONOMY: 18 HRS AS AN RTK ROVER WITH TILT
03 POSITIONING
- CONVERGENCE TIME: ~5 S TYPICALLY
- PPK: H: 5 MM + 0.5 PPM
- PPK: V: 10 MM + 1 PPM
- RTK: V: 14 MM + 1 PPM
- RTK: H: 7 MM + 1 PPM
- STATIC: V: 8 MM + 1 PPM
- STATIC: H: 4 MM + 0.5 PPM
- TILT: RTK + 2 MM + 0.3 MM/°
04 CONECTIVITY
- REGION BANDS: TD-LTE: 38, 40, 41
04 CONNECTIVITY
- BLUETOOTH: 4.0/2.1 EDR
- DISTANCE: UP TO 8 KM
- FREQUENCY RANGE: 868/915 MHZ
- FREQUENCY RANGE: 410-470 MHZ
- LTE MODEM : REGION BANDS: GLOBAL
- MODULATION TYPE: GMSK
- PORTS: RS-232, USB TYPE-C
- POWER: 0.1 W
- PROTOCOLS: TRIMTALK 450S**
- RADIO: LORA TRANSMIT AND RECEIVER
- REGION BANDS: UMTS (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19
- REGION BANDS: QUAD-BAND, 850/1900/900/1800 MHZ
- REGION BANDS: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20 , 26, 28, 66
- SIM CARD : NANO-SIM
- UHF*: RECEIVE-ONLY
- WI-FI: 802.11 B/G/N
05 DATA
- CORRECTIONS: NTRIP, RTCM3
- DATA LOGGING : RINEX, NMEA, LLH/XYZ, UBX
- INTERNAL STORAGE: 16 GB
- POSITION OUTPUT: NMEA, LLH/XYZ
06 GNSS
- IMU : 6DOF
- NUMBER OF CHANNELS: 184
- SIGNAL TRACKED: BEIDOU B1I, B2I, GALILEO
- SIGNAL TRACKED: E1B/C, E5B
- SIGNALS TRACKED: GPS/QZSS L1C/A, L2C
- SIGNALS TRACKED: GLONASS L1OF, L2OF
- UPDATE RATES: UP TO 10 HZ
Description

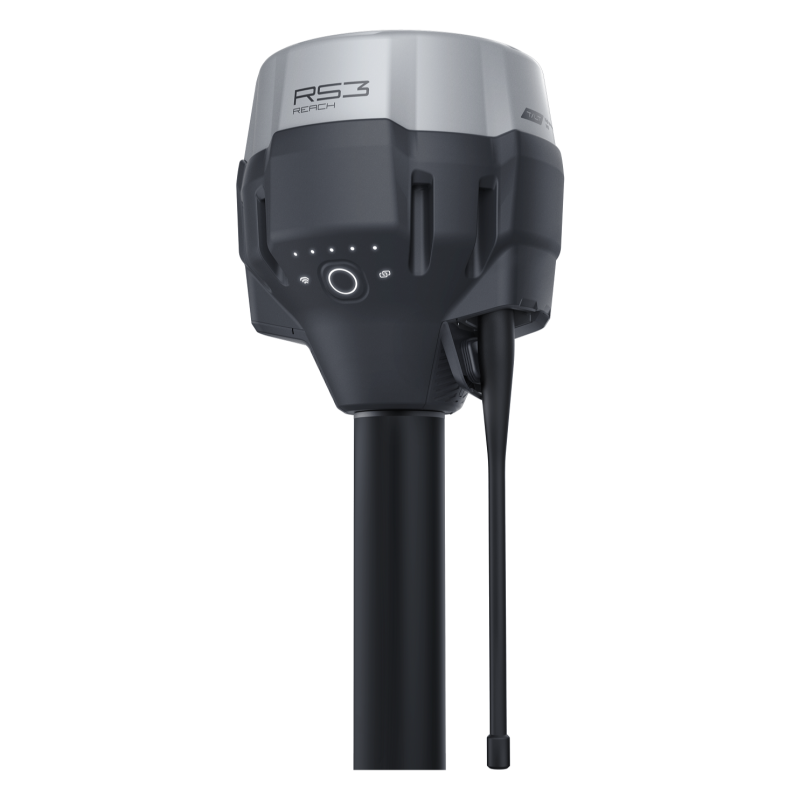

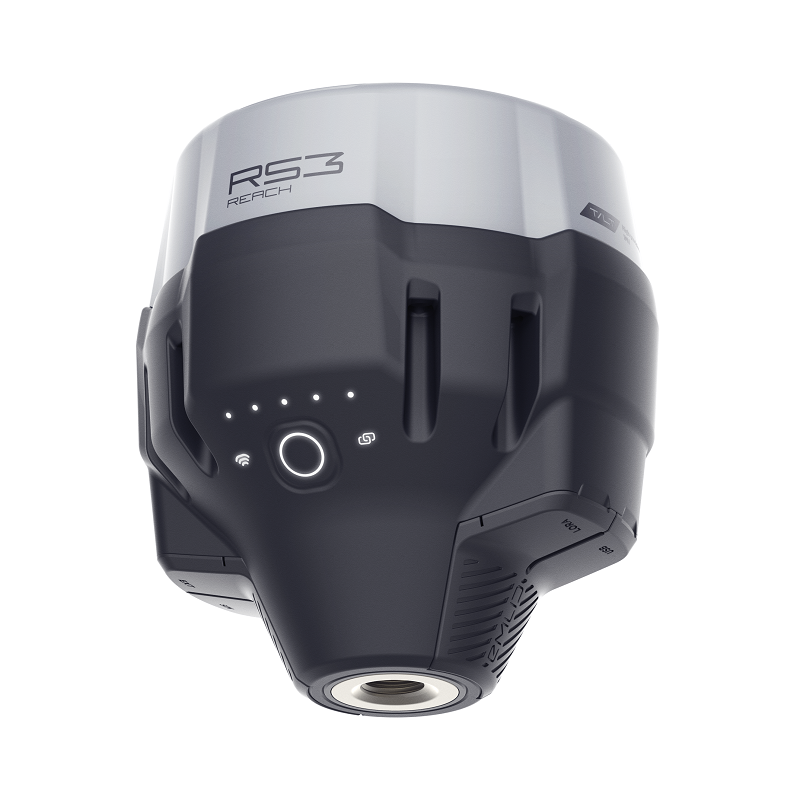

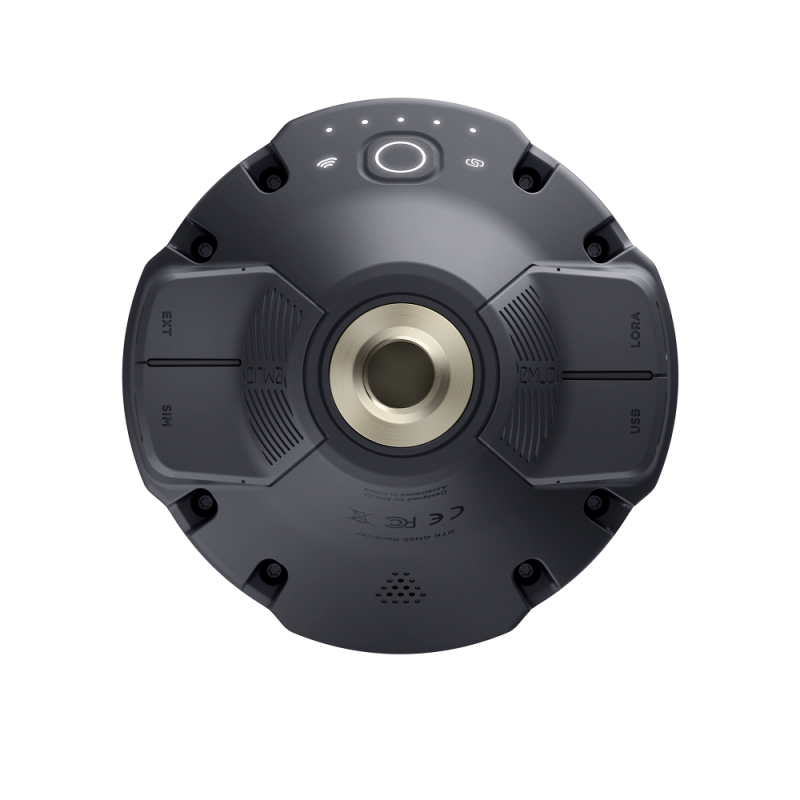

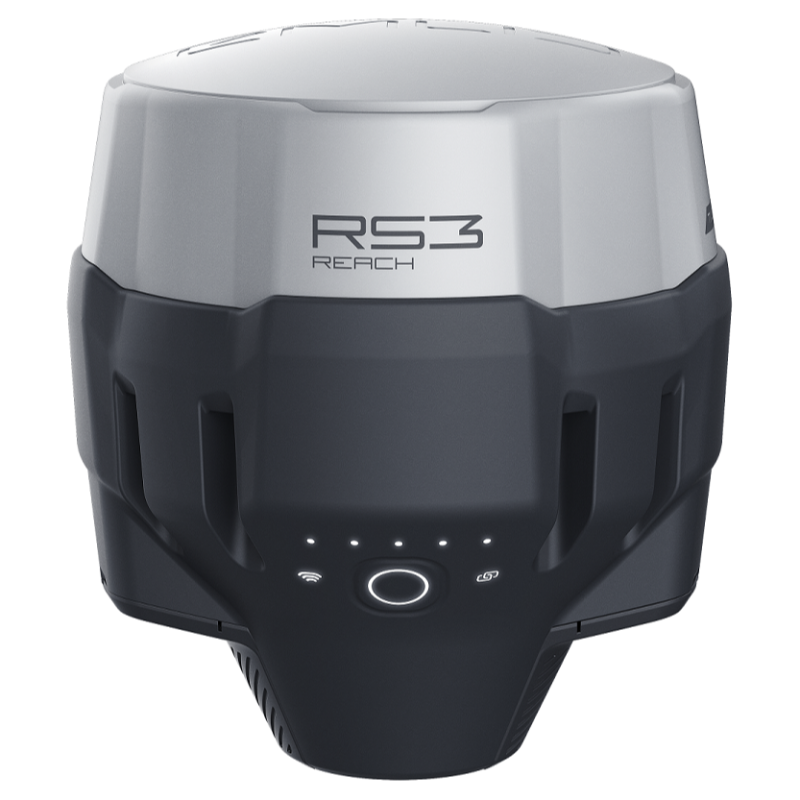

Reach RS3
Survey Grade Multi-band RTK GNSS receiver with next generation IMU Tilt Compensation.

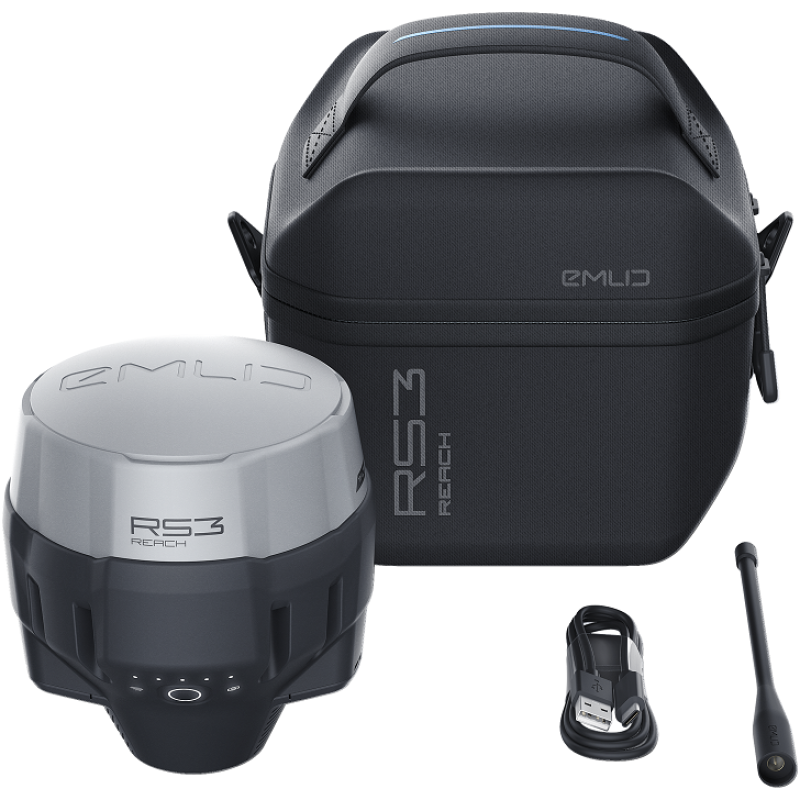

Package Includes:
— 1x Reach RS3 (With IMU Tilt Capabilities)
— Carry case with a strap
— Radio antenna
— USB Type-C cable

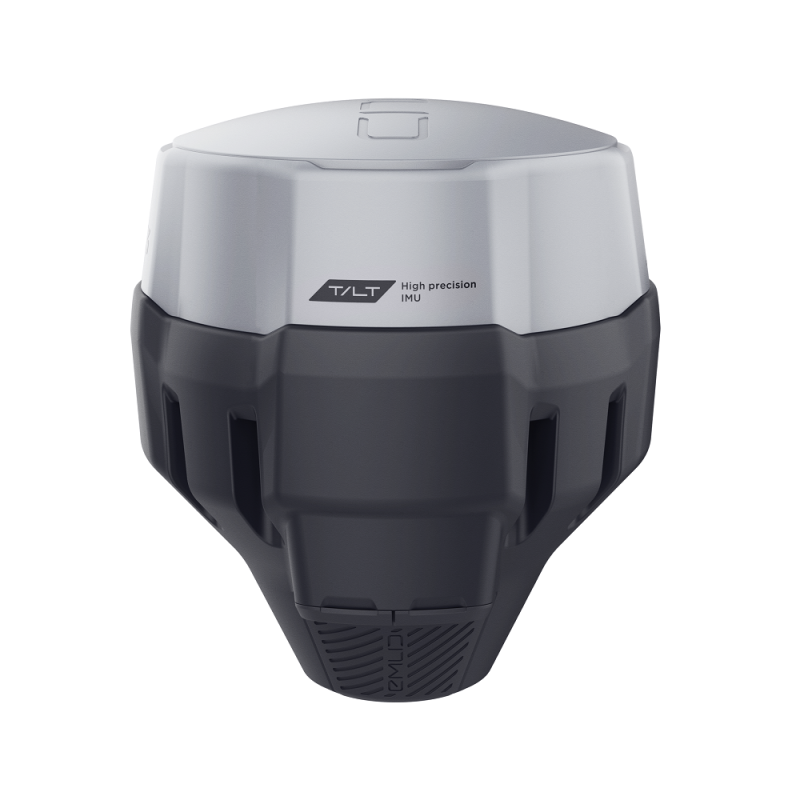

The Reach RS3 features cutting-edge IMU Tilt Compensation, providing survey-grade data acquisition in hard-to-reach locations. Industry-leading accuracy of RTK + 2 mm + 0.3 mm/°, all within a factory-calibrated IMU for seamless out-of-the-box functionality.
The Reach RS3 features cutting-edge IMU Tilt Compensation, providing survey-grade data acquisition in hard-to-reach locations. Industry-leading accuracy of RTK + 2 mm + 0.3 mm/°, all within a factory-calibrated IMU for seamless out-of-the-box functionality.
Key features:
- High precision IMU: RTK + 2 mm + 0.3 mm/°
- Immune to magnetic disturbances
- Dual-band radio: 868/915 MHz LoRa to receive and transmit corrections 450 MHz UHF to receive corrections
- Tracks GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
- Dual-band radio: 868/915 MHz LoRa to receive and transmit corrections 450 MHz UHF to receive corrections
- Tracks GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
- Get a fix in seconds
- Global LTE modem
- Global LTE modem
- Supports working in RTK, PPP and NTRIP
- NTRIP and RTCM3 to send and receive corrections
- Battery: 18 hrs with tilt compensation, 22 hours logging
- Works as base or rover
- NTRIP and RTCM3 to send and receive corrections
- Battery: 18 hrs with tilt compensation, 22 hours logging
- Works as base or rover
- Comes with the Emlid Flow app
