Specifications
01 CONNECTIVITY
- BLUETOOTH: 4.0/2.1 EDR
- DATA LOGGING: RINEX AT UPDATE RATE OF UP TO 10 HZ
- DATA PROTOCOLS: CORRECTIONS: NTRIP, RTCM3
- DATA PROTOCOLS: POSITION OUTPUT: NMA, LLH/XYZ
- INTERNAL STORAGE: 16 GB
- LTE MODEM : REGIONS : GLOBAL
- LTE MODEM: BANDS: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38, 40, 41 UMTS (WCDMA/FDD): 1, 2, 3, 4, 5, 6, 8, 19 QUAD-BAND (850/1900, 900/1800MHZ)
- LTE MODEM: SIM CARD: NANO-SIM
- PORTS: RS-232, USB TYPE-C
- UHF LORA RADIO : POWER: 0.1 W
- UHF LORA RADIO: FREQUENCY RANGE 868/915 MHZ
- UHF LORA RADIO: DISTANCE: UP TO 8 KM
- WI-FI: 802.11 B/G/N
02 POSITIONING
- CONVERGENCE TIME: -5S TYPICALLY
- NUMBER OF CHANNELS: 184
- POSITIONING: PRECISIONE STATIC: H: 4 MM + 0.5 PPM V: 8 MM + 1 PPM
- PRECISIONE: PPK: h: 5 MM + 0.5 PPM V: 10 MM + 1 PPM
- PRECISIONE: RTK: H: 7 MM + 1 PPM V: 14 MM + 1 PPM
- SIGNAL TRACKED: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BEIDOU B1I, B2I, GALILEO E1-B/C, E5B
- UPDATE RATE: UP TO 10 HZ
03 MECHANICAL
- DIMENSIONS: 126 X 126 X 142 MM
- INGRESS PROTECTION: IP67 WATER AND DUSTPROOF
- OPERATING TEMPERATURE: -20° C TO + 65° C
- WEIGHT : 950 G
04 ELECTRICAL
- AUTONOMY: 16 HRS AS LTE RTK ROVER
- BATTERY : LIFE PO4 6400 MAH, 6.4 V
- CHARGING : USB-C 5 V 3 A
- EXTERNAL POWER INPUT : 6 - 40 V
Description

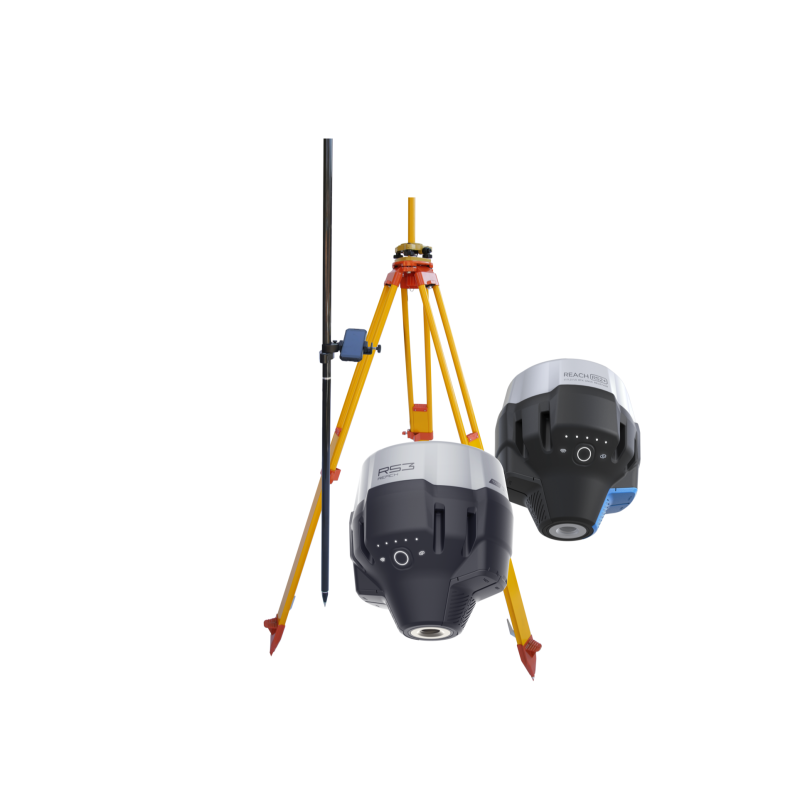

Emlid Reach RS3/RS2+ Combo Essentials Kit
Survey NOW!
All the essentials you need to start surveying immediately.
Two Reach RS2 receivers for surveying in RTK and PPK modes with all the essential accessories included.
Kit Includes:

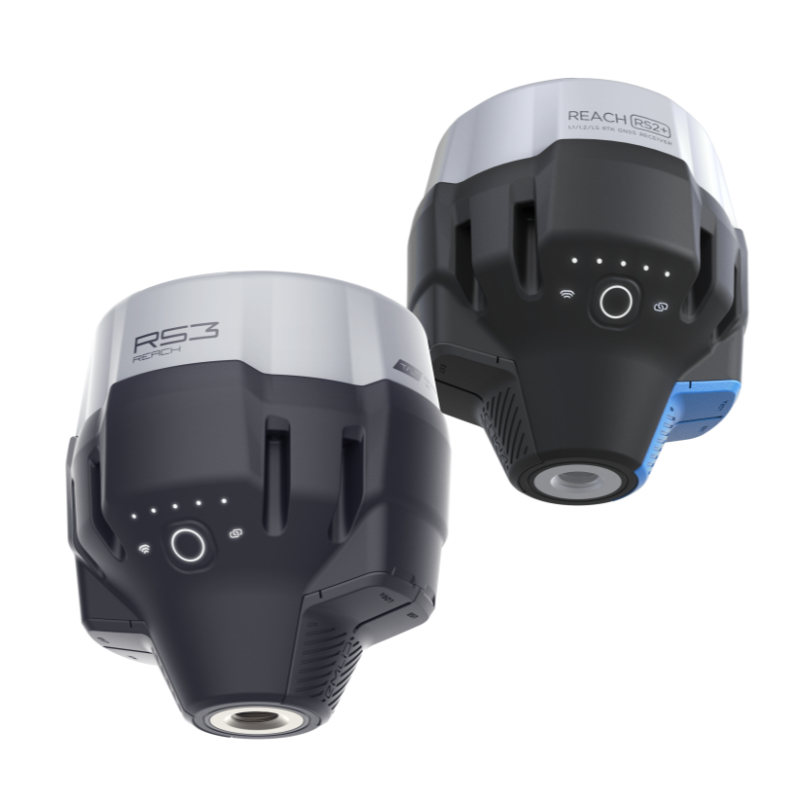

- 1x Emlid Reach RS2+ (Base)
- 1x Emlid Reach RS3 (Rover With IMU Tilt capabilities)
- 1x Rugged Android Controller

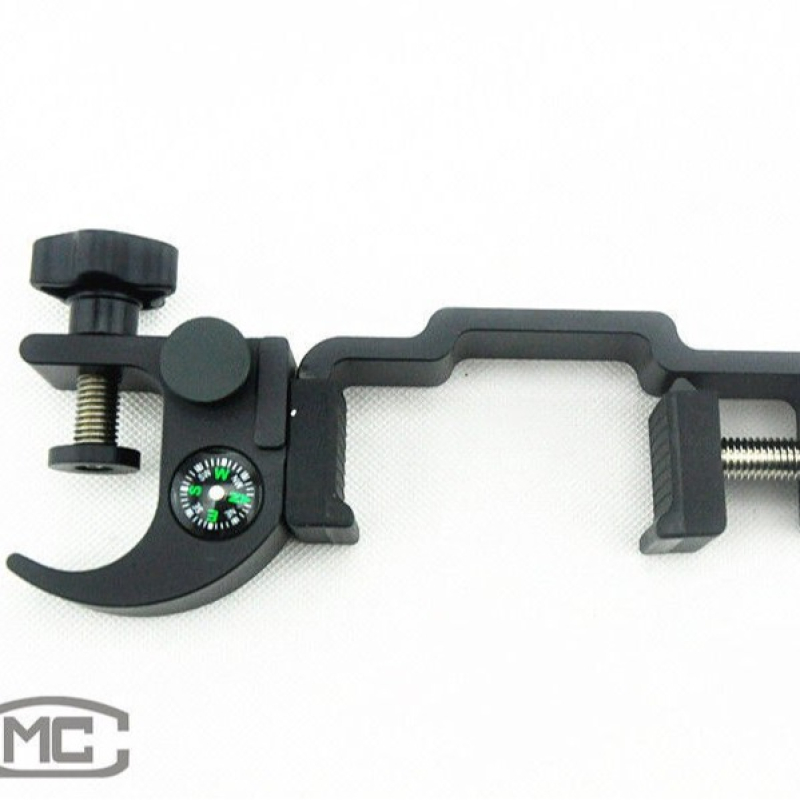

- 1x Controller Bracket

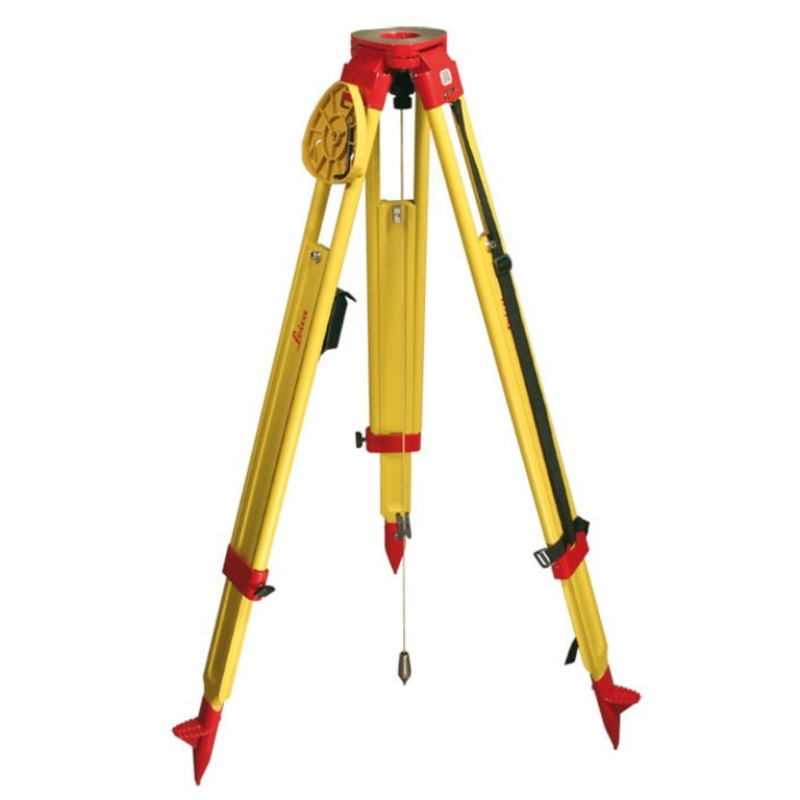

- 1x Tripod (Wood)

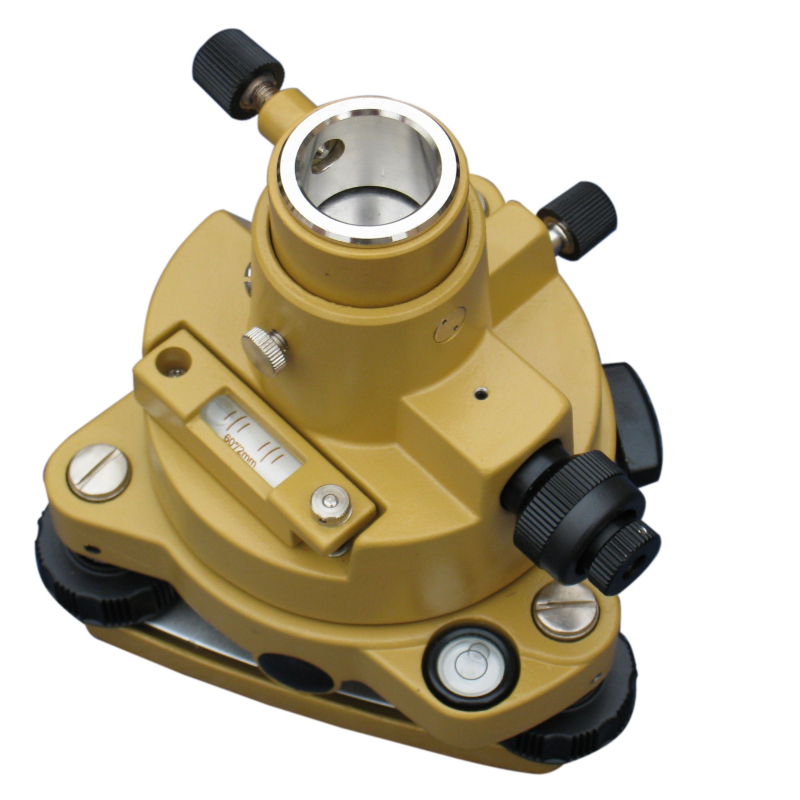

- 1x Tribrach

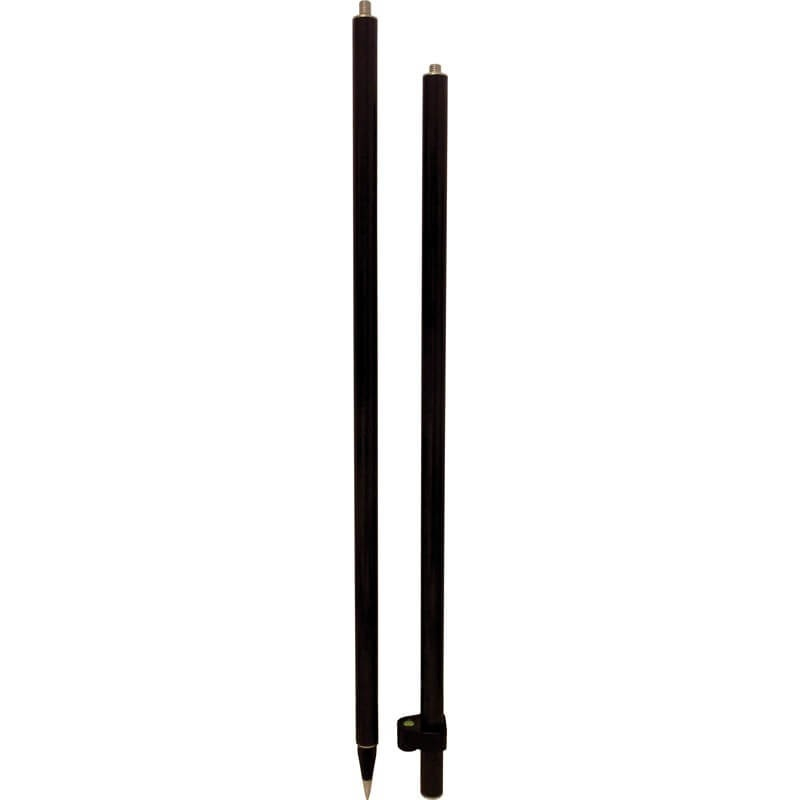

- 1x GPS Pole

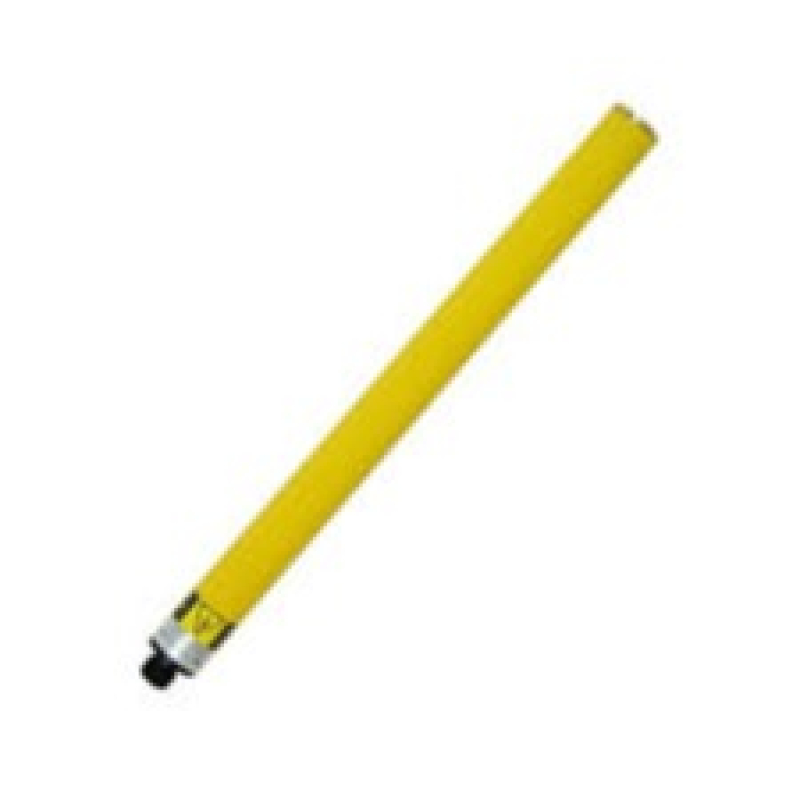

- 1x Extension Pole
- Survey with the free EmlidFlow software app
- Excludes: eField Surveying Software, Hard case, Training and Support
Key Features
- Get a fix in seconds
- Work as base or rover
- 22 hours of battery life
- Built in LTE modem
- RS3 Has IMU Tilt Capabilities
- Supports working in RTK, PPP and NTRIP
- Create your own NTRIP base station
- No 1 alternative base station for DJI drone
