Specifications
01 PRECISION
- PPK: H: 5 mm + 0.5 ppm V: 10 mm + 1 ppm
- RTK: H: 7 mm + 1 ppm V: 14 mm + 1 ppm
- Static: H: 4 mm + 0.5 ppm V: 8 mm + 1 ppm
- Tilt Compensation: RTK + 2 mm + 0.3 mm/°
02 TIME TO FIX
- Convergence time: ~5 s typically
03 POSITIONING
- IMU: 6DOF
- Number of Channels: 184
- Signals: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1-B/C, E5b
- Update Rate: Up to 10 Hz
04 LORA RADIO
- Communication: Transmit and receive
- Distance: Up to 8km (Terrain dependant)
- Frequency range: 868/915 MHz
- Power: 0.1 Watt
05 UHF RADIO
- Communication : Receive only
- Frequency range: 410–470 MHz
- Modulation type: GMSK
- Protocol: TRIMTALK 450S*
06 CONNECTIVITY
- Bluetooth : 4.0/2.1 EDR
- Corrections: NTRIP, RTCM3
- Data logging: RINEX, NMEA, LLH/XYZ, UBX
- Internal storage: 16 GB
- LTE Modem : Global
- Ports: RS-232, USB Type-C
- Position output: NMEA, LLH/XYZ
- Sim Card: Nano sim
07 MECHANICAL
- Dimensions : 126 x 126 x 142 mm
- Ingress protection : IP67
- Operating temperatures : -20 to +65 °C
- Weight : 950g
08 ELECTRICAL
- Autonomy (Battery Life): 18 hrs as an RTK rover with tilt compensation, 22 hrs of logging
- Battery: Li-Ion 5200 mAh, 7.2 V, 37.44 Wh
- Charging: USB Type-C 5 V, 3 A
Description

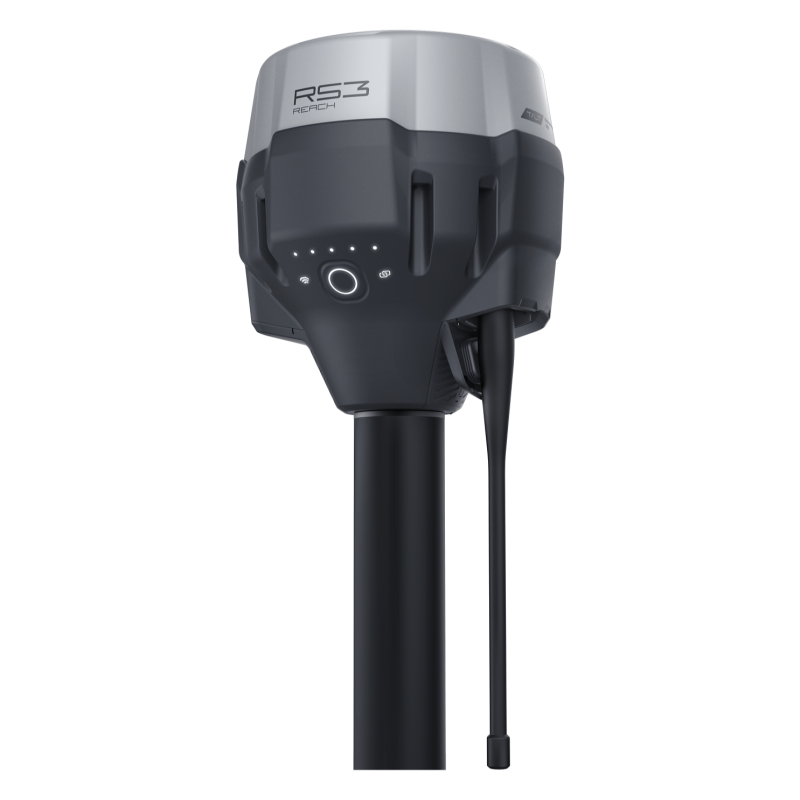

Reach RS3
Survey Grade Multi-band RTK GNSS receiver with next generation Tilt Compensation.
Package Includes everything you need in a Rover set:
— 1x Reach RS3 (With IMU and Tilt)

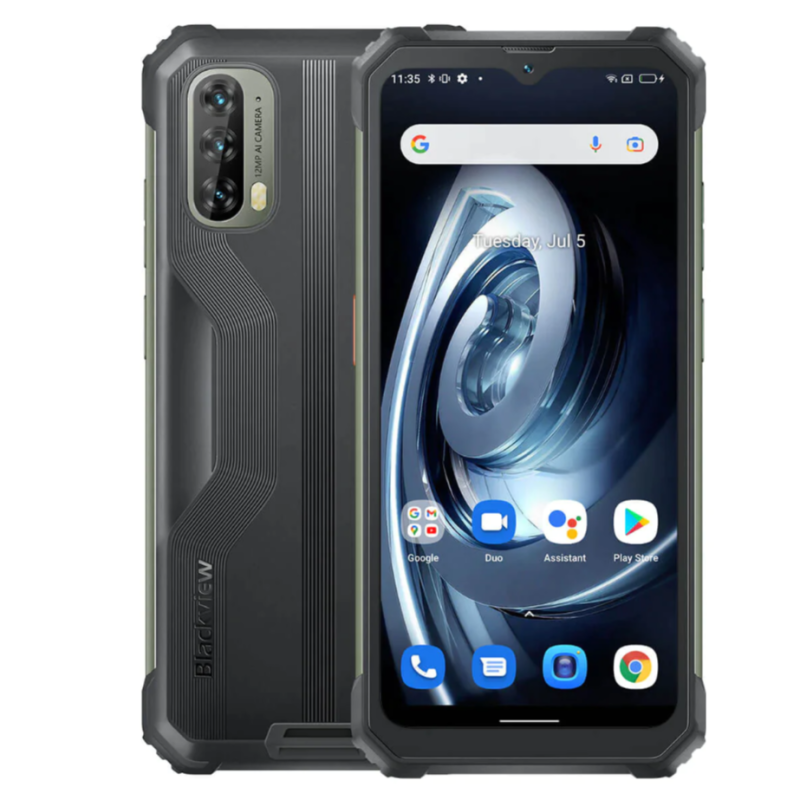

— Controller and Survey Software
— SOM Survey Complete GPS and Software Video Training
— Controller Bracket

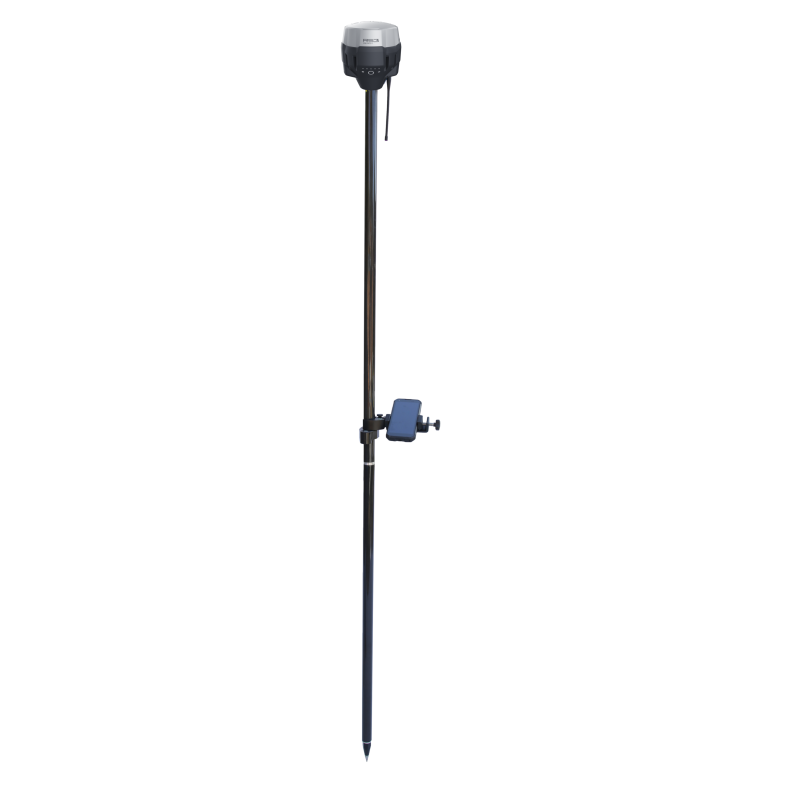

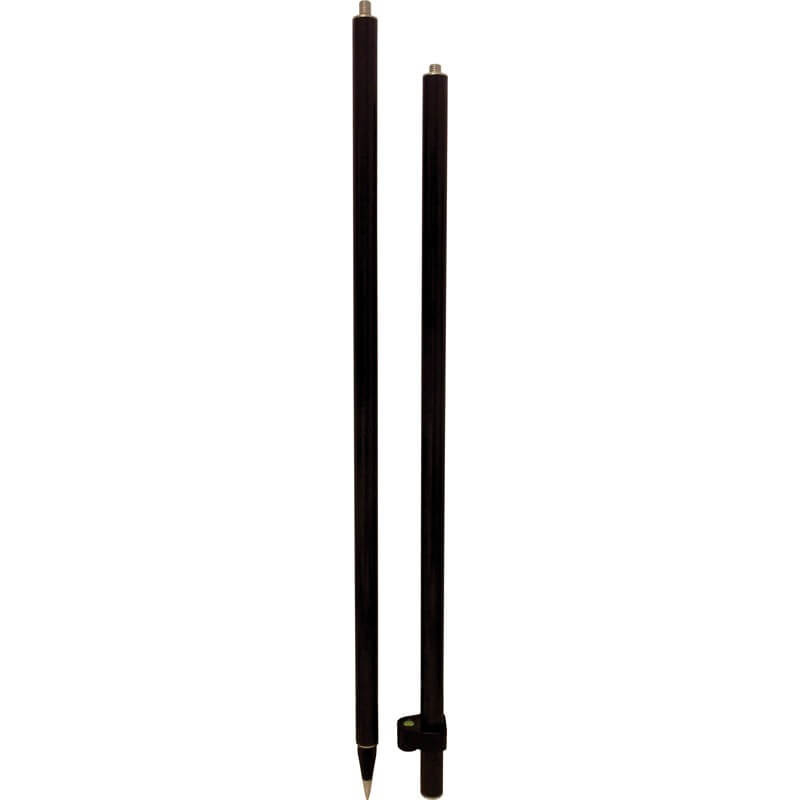

— GPS Pole (2m)
— Bi-Pod
— SOM Survey Complete GPS and Software Video Training
— Controller Bracket
— GPS Pole (2m)
— Bi-Pod

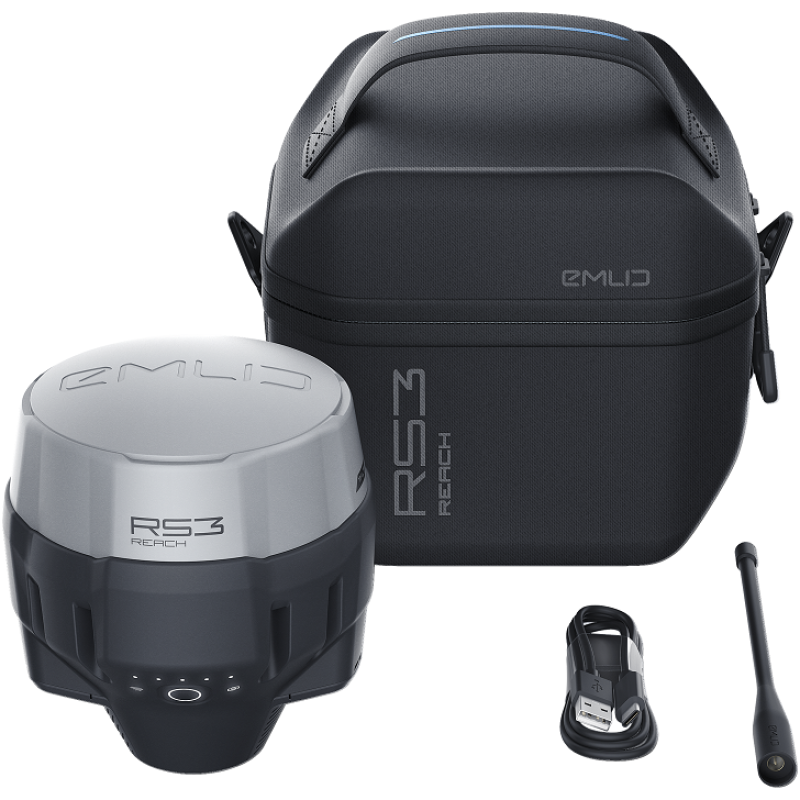

— Carry case with a strap
— Radio antenna
— USB Type-C cable
The Reach RS3 features cutting-edge IMU Tilt Compensation, providing survey-grade data acquisition in hard-to-reach locations. Industry-leading accuracy of RTK + 2 mm + 0.3 mm/°, all within a factory-calibrated IMU for seamless out-of-the-box functionality.
The Reach RS3 features cutting-edge IMU Tilt Compensation, providing survey-grade data acquisition in hard-to-reach locations. Industry-leading accuracy of RTK + 2 mm + 0.3 mm/°, all within a factory-calibrated IMU for seamless out-of-the-box functionality.
Key features
- High precision IMU: RTK + 2 mm + 0.3 mm/°
- Immune to magnetic disturbances
- Dual-band radio: 868/915 MHz LoRa to receive and transmit corrections 450 MHz UHF to receive corrections
- Tracks GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
- Dual-band radio: 868/915 MHz LoRa to receive and transmit corrections 450 MHz UHF to receive corrections
- Tracks GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
- Get a fix in seconds
- Global LTE modem
- Global LTE modem
- Supports working in RTK, PPP and NTRIP
- NTRIP and RTCM3 to send and receive corrections
- Battery: 18 hrs with tilt compensation, 22 hours logging
- Works as base or rover
- NTRIP and RTCM3 to send and receive corrections
- Battery: 18 hrs with tilt compensation, 22 hours logging
- Works as base or rover
