Leica Geosystems

Leica ATX900GG Base and Rover Kit

Used
R51,999

Inclusive all taxes

Quantity
Product Terms
  • 3 Days Return Back Policy
  • 3 Days Cancellation Policy
  • Ship Only

Description

Leica ATX900GG Base and Rover Kit


The Leica ATX900 GG is a 72-channel GNSS antenna with outstanding satellite tracking characteristics even to low satellites and in adverse conditions. Compatible with both the Leica RX900 and Leica RX900c the new ATX900 GG provides fast acquisition and low noise increasing the overall performance of GPS900 particularly in demanding situations.




Verified: Class B - Powers On and Appears Functional

This product has been visually inspected and matches the description provided. It powers on, but not all functions have been fully tested.

Condition: In a good used condition with noticeable normal wear and tear.

  • Control/Reference Line : Stakeout and measure relative to lines and arcs. Enter offsets and heights. Control/Reference lines can be defined using the map view. Set checks for quality control. Ideal for buildings, drainage, foundations etc
  • Stakeout: Stakeout points and digital terrain models (DTMs) with the stakeout program. Navigate directly using the map-view or usingthe large bull's eye
  • Topographic Survey: Record points with or without code and attribute information. Set criteria and measure points automatically. View the survey in the large, graphical map view display. Use the Survey program for detail, topo, title surveys etc
  • Alignment: Stakeout relative to a 3D alignment using the RoadRunner Lite option. Points can be staked out at any chainage (stationing) and offset. Work with any combination of geometric elements

Best antenna performance
Continue working even in difficult conditions. GPS900 provides the best RTK GPS performance with high accuracy measurements and fast satellite acquisition

Rugged rover
Built to military specifications the GPS900 RTK rover is incredibly robust. The cable-free all-on-the-pole rover is ideal for construction sites and other demanding workplaces.

One person, one case, one system
Increase productivity. The GPS900 is ideal for one person stakeout and survey work. Everything that is needed for a days work can be easily transported and setup

Hardware Specifications

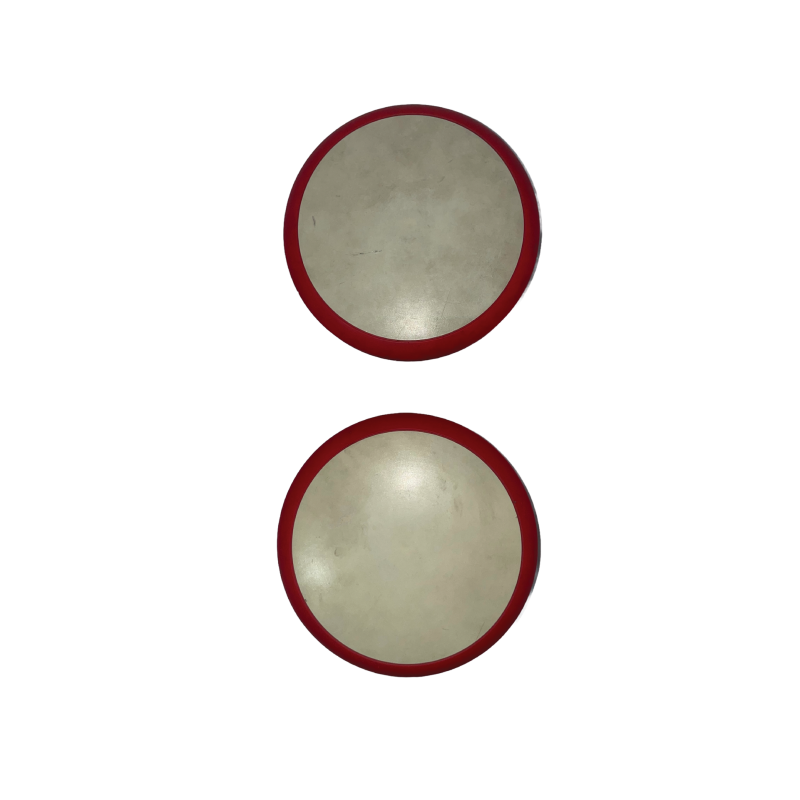

ATX900 GPS Antenna

  • Total reliability
  • Top quality measurements
  • Measure amongst trees and obstructions
  • Acquisition and initialization within seconds

RX900 Controller

  • 1/4 VGA Touch screen
  • User-definable keys
  • Bluetooth Wireless-Technology
  • 256 MB internal memory

Rugged

  • –30° C to +65° C operating temperature
  • Up to 100% humidity
  • Waterproof to 1 m temporary submersion
  • Withstands fall if pole topples over
Leica GPS900  Technical  Specifications
GPS technology  SmartTrack dual frequency 12 L1 + 12 L2
ATX900  GPS  Antenna Built-in groundplane with  SmartCheck and Bluetooth Wireless-Technology
RX900 Controller

1/4 VGA Touch  screen
Windows CE 5.0
256 MB internal memory
Bluetooth Wireless-Technology
RTK  range:  2500  m
SmartCheck  Horizontal accuracy: 10  mm  +1  ppm,  kinematic
Vertical accuracy: 20 mm +1 ppm, kinematic
Position update  rate: 1 Hz  standard,  option up  to 2 Hz
Power supply Li-Ion 1.9 Ah/7.2  V for GPS900 rover. Ni-MH  8.0  Ah/12  V for  GPS900 reference setup. Power RTK rover for about 5 hours
Temperature
ISO9022,  MIL-STD-810F		 Operation:  –30°  C  to  +65°  C
Storage:  –40°  C  to  +80°  C
Protection  against  water, dust and sand, IP67  (IEC60529), MIL-STD-810F Waterproof  to  1  m  temporary  submersion
Dust tight
Weight ATX900:  0.96  kg,  RX900:  0.71  kg
Entire  GPS900  RTK  rover:  3.49  kg

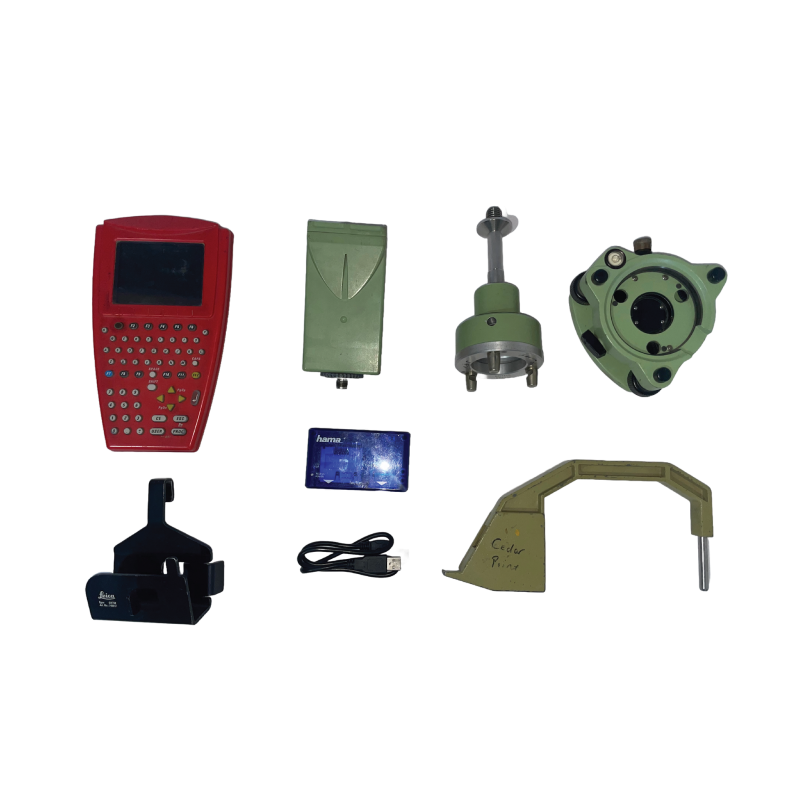

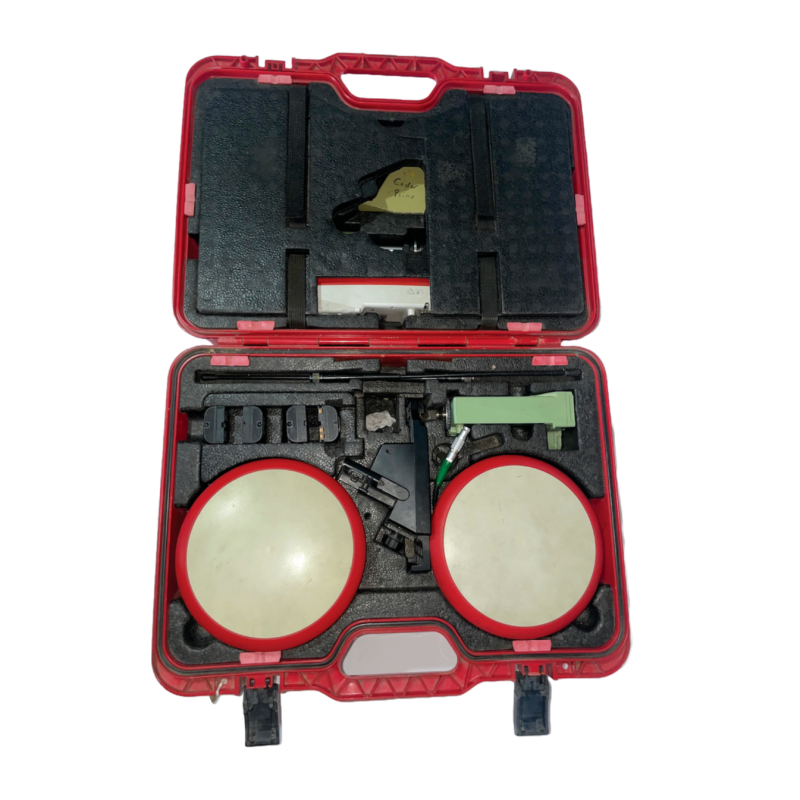

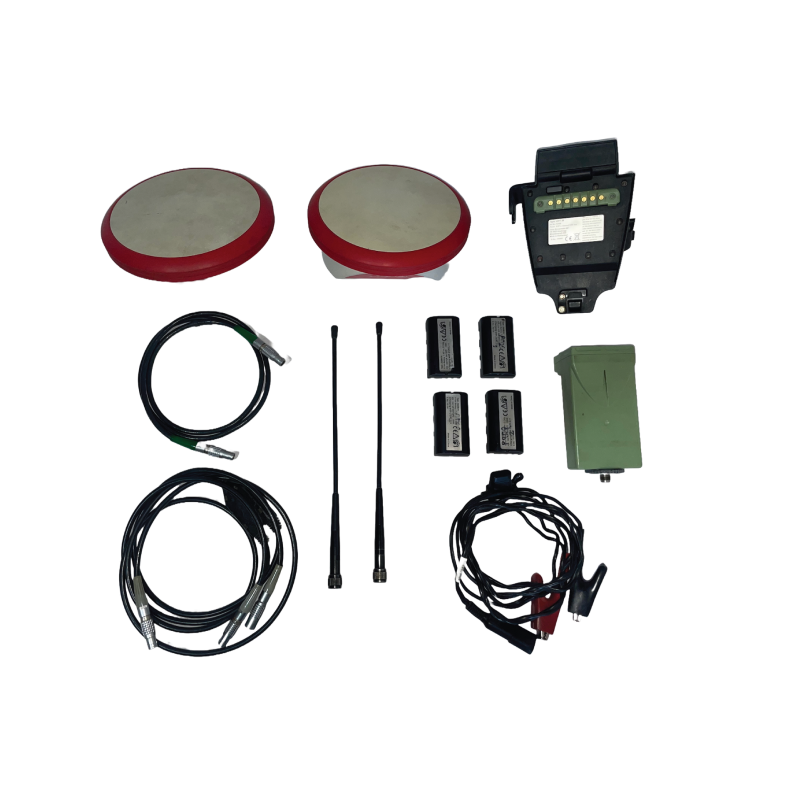

 Includes: Everything seen in images

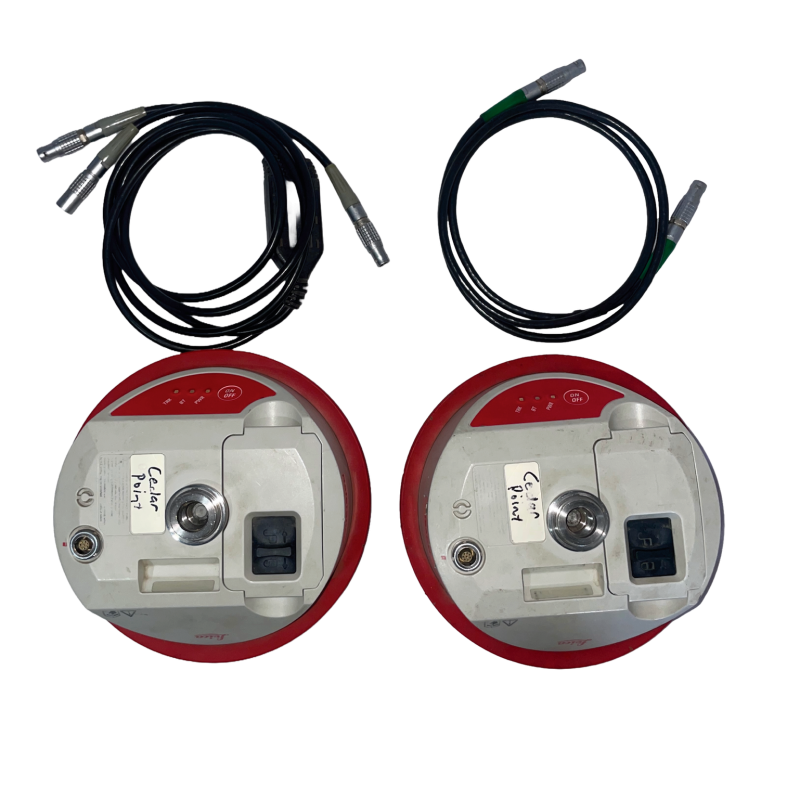

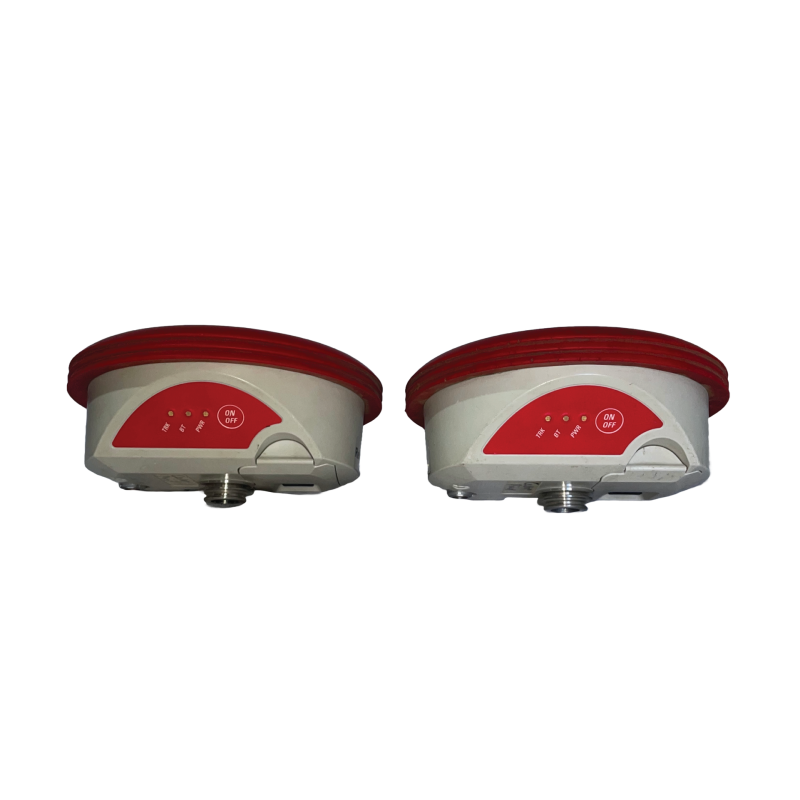

1 x Base SN: 160503

1x Rover SN:160508

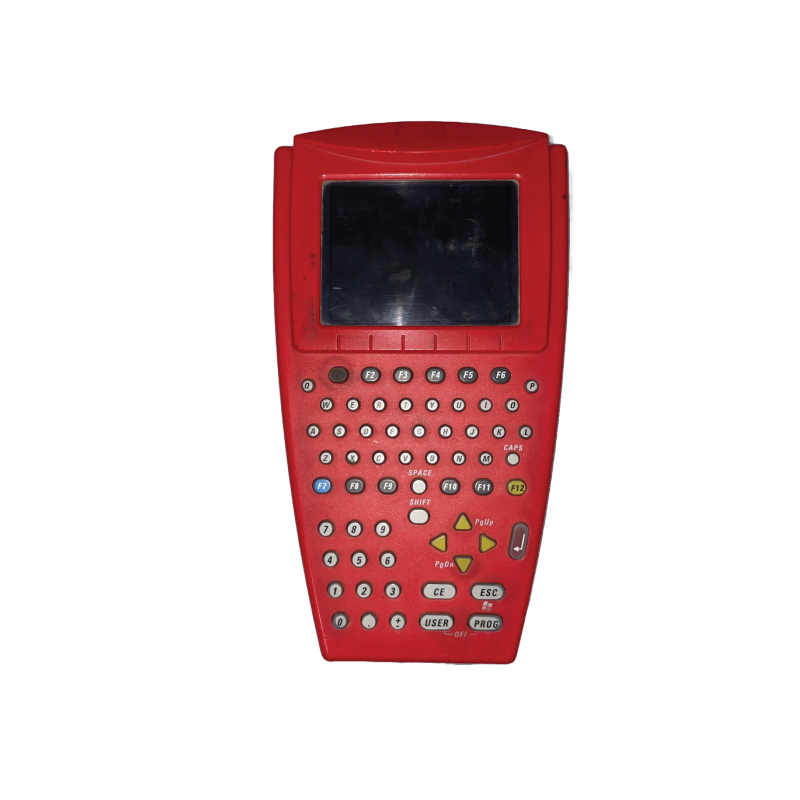

1 x Controller SN: 769647

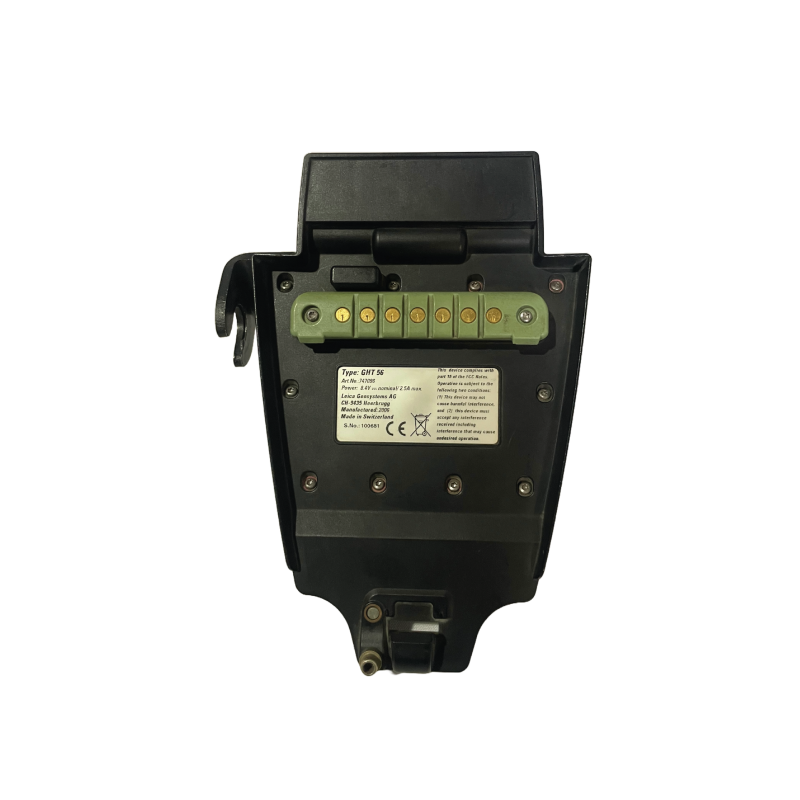

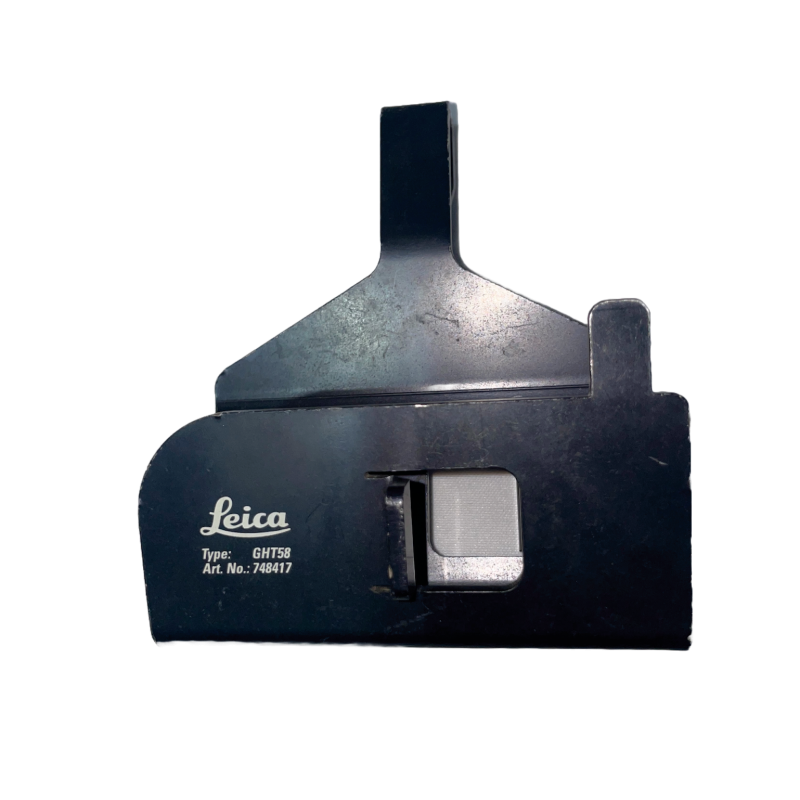

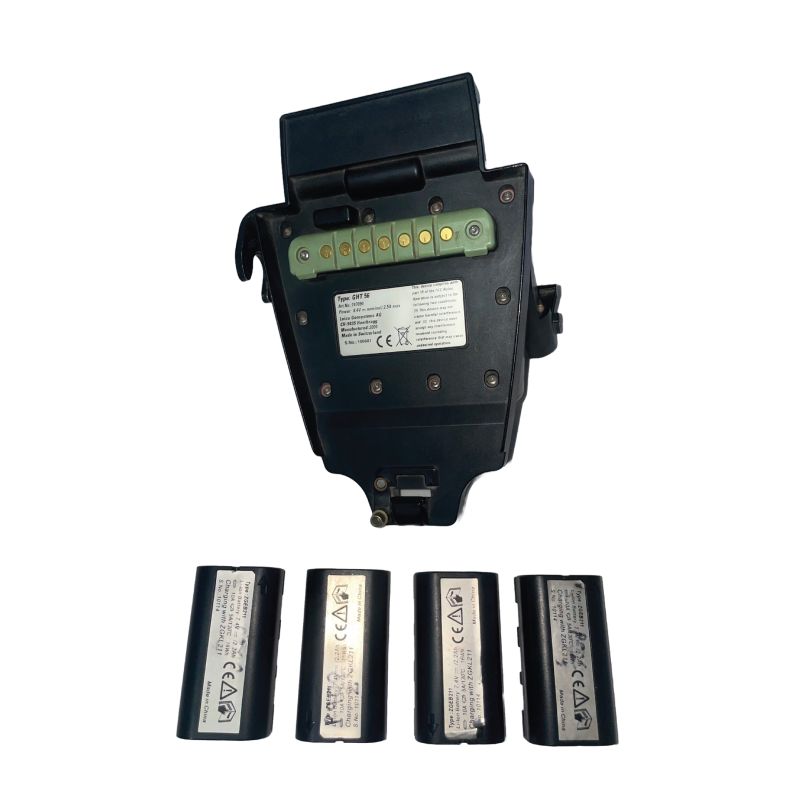

1 x Controller holder GHT 56 SN: 100681

4 x batteries

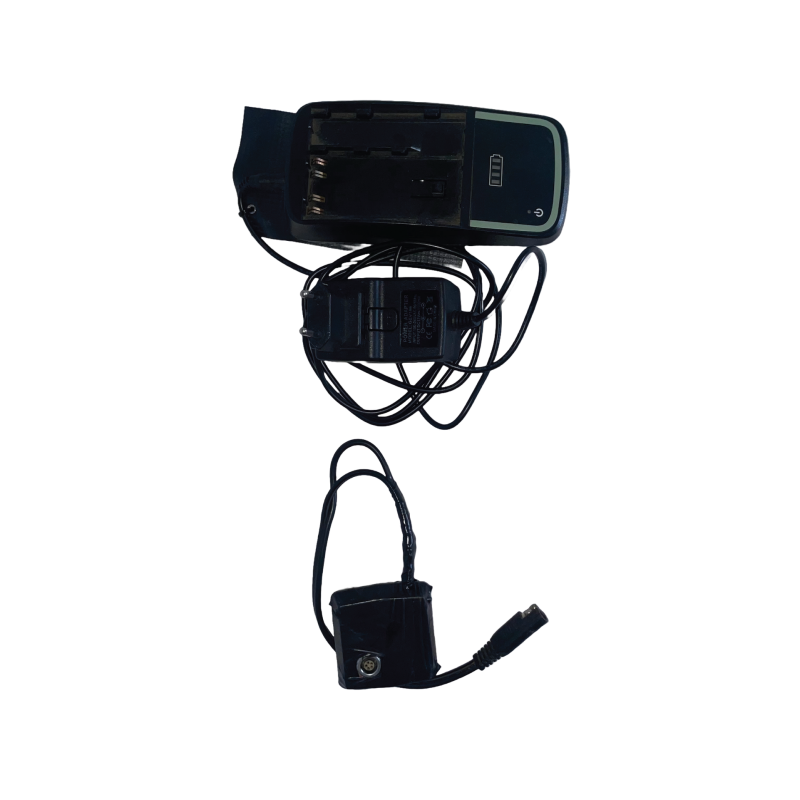

1 x battery charger SN:1096

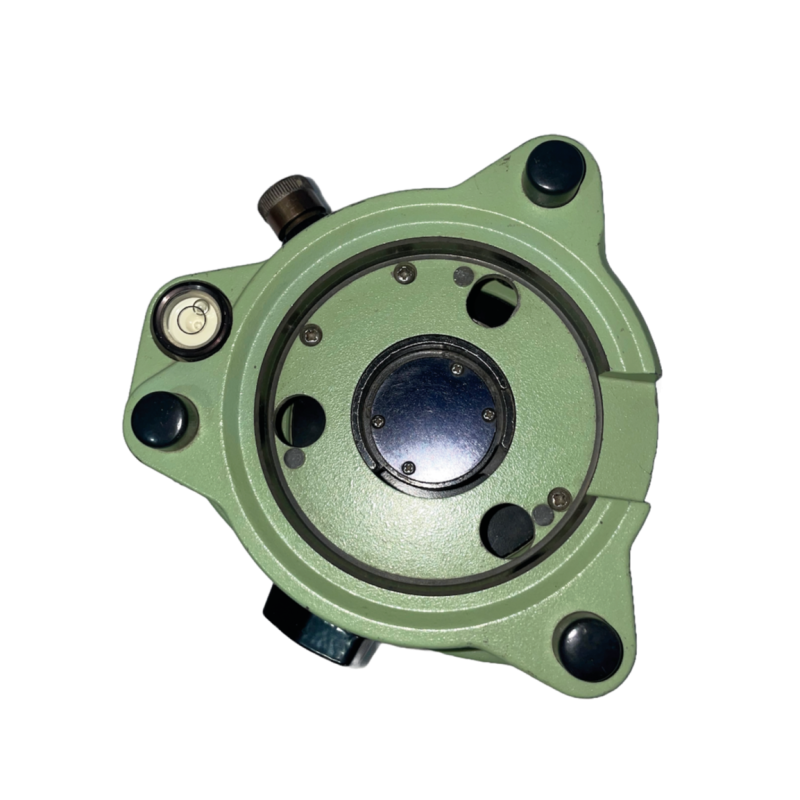

1 x Tribrach

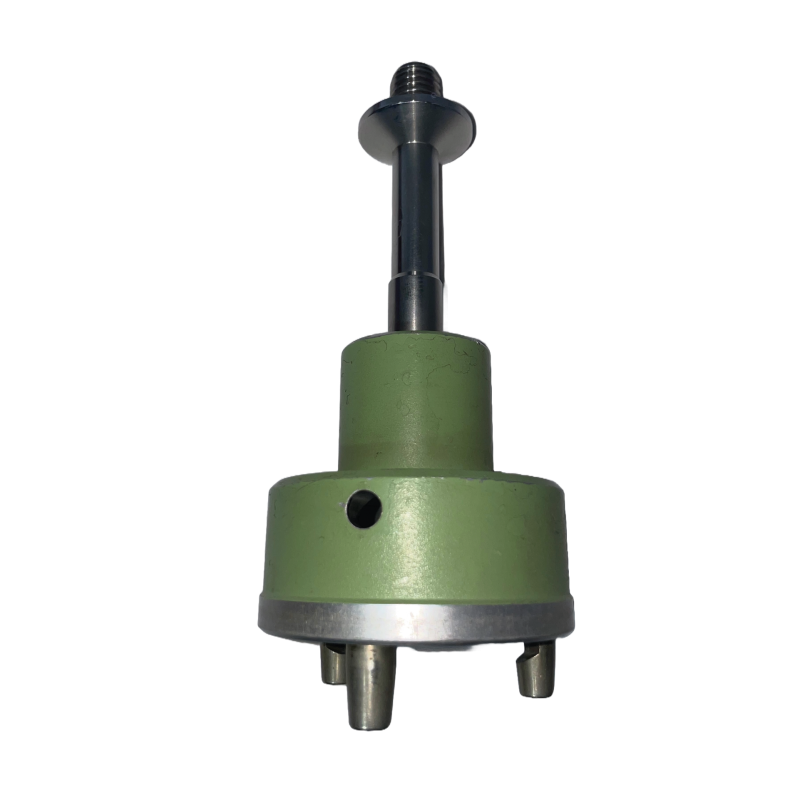

1 x GPS adapter

1 x GPS measuring Tape bracket _Tape missing

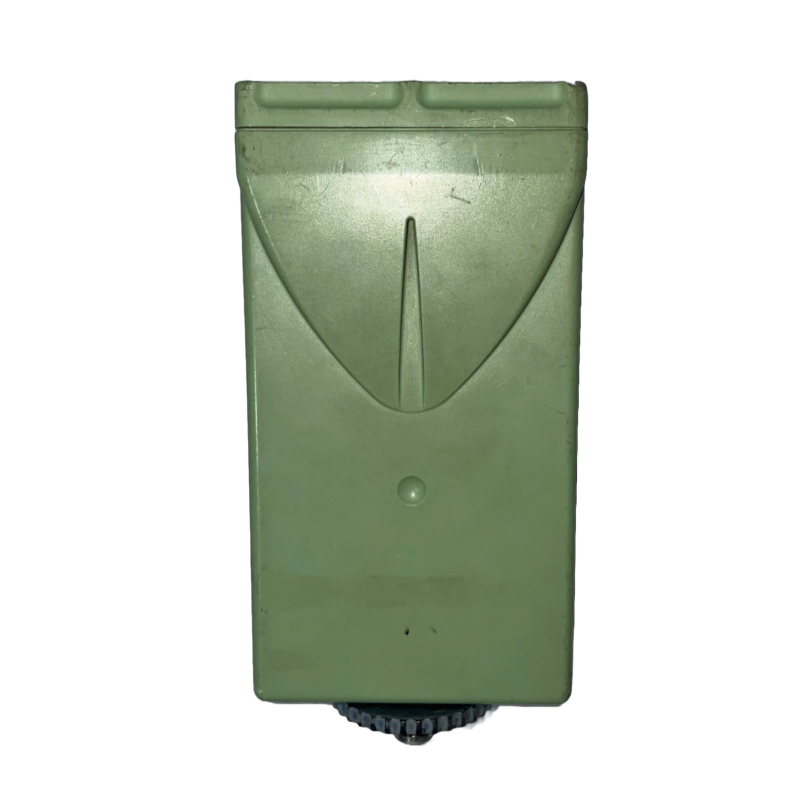

2 x UHF Radio

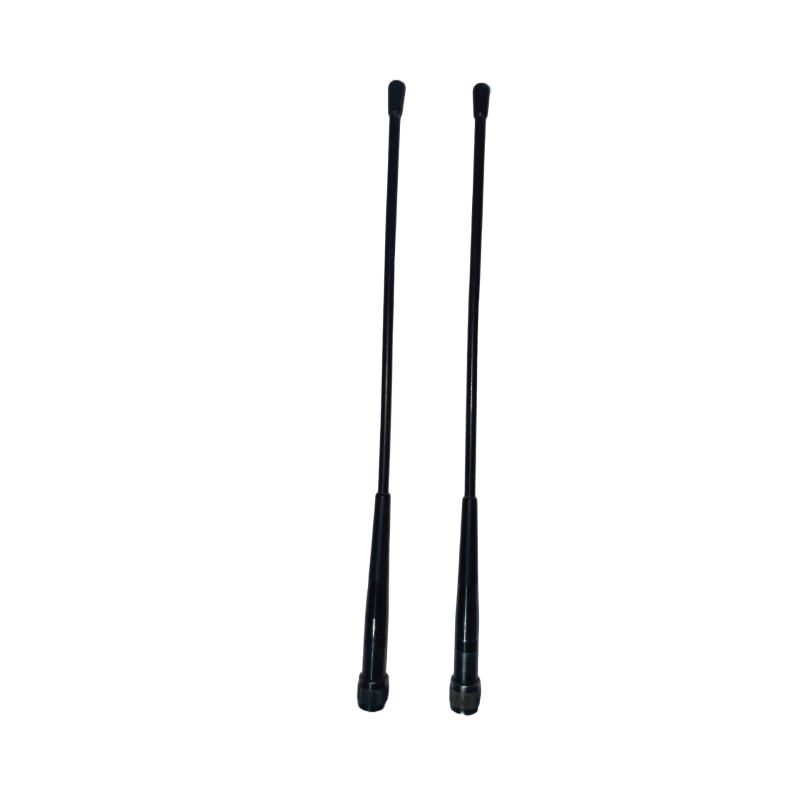

2 x UHF Whip antenna

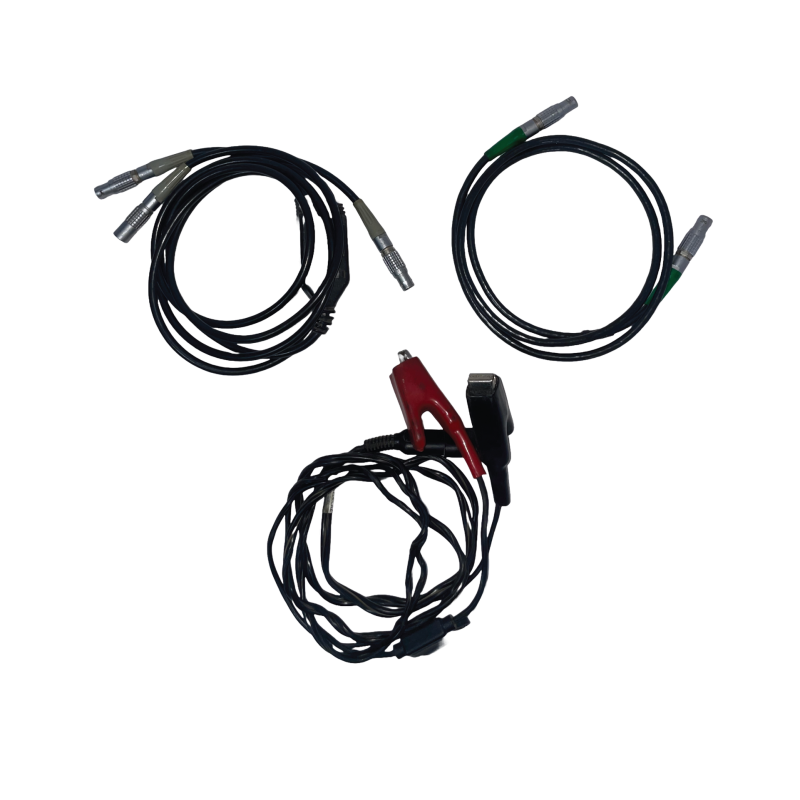

1 x Base cable

1 x Rover cable

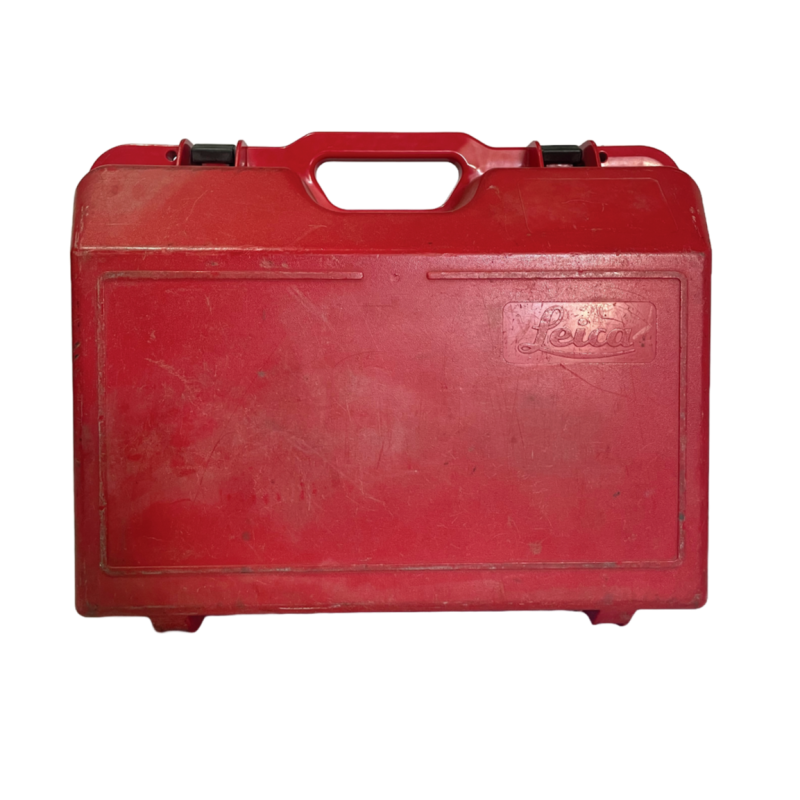

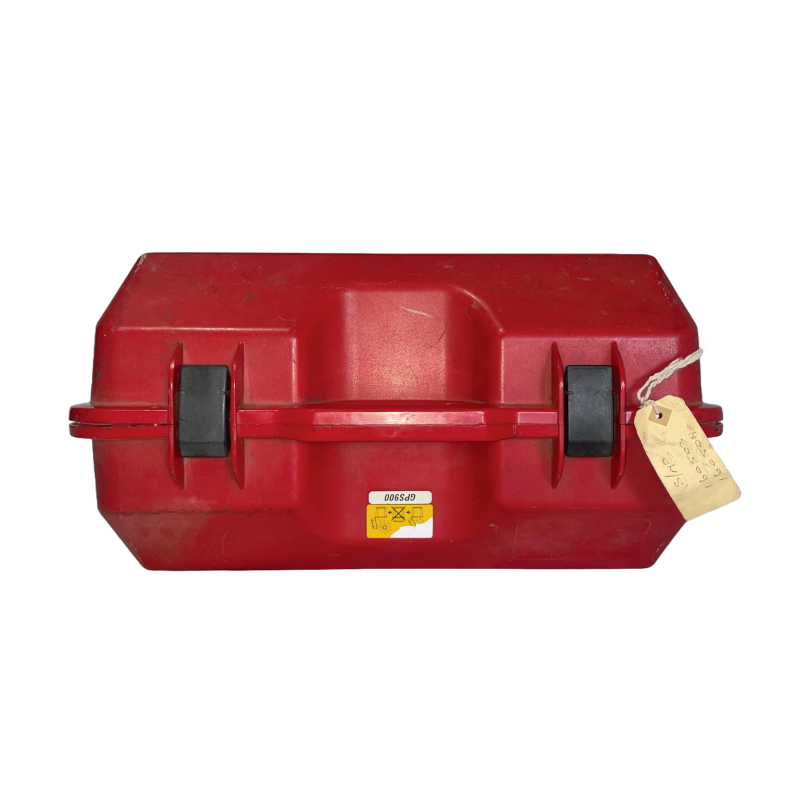

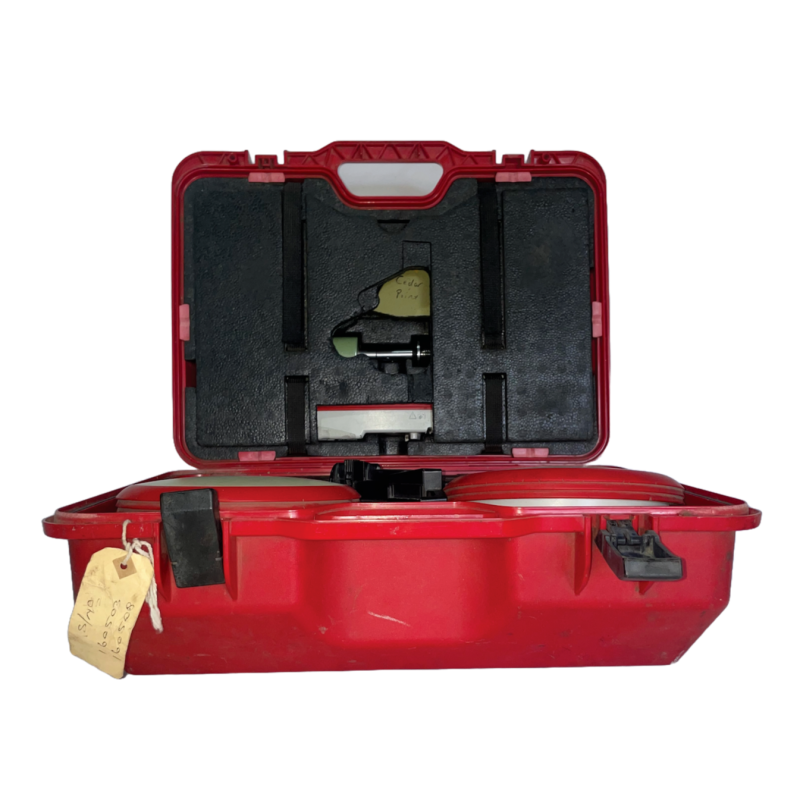

1 x Hardcase

1 x Base power cable

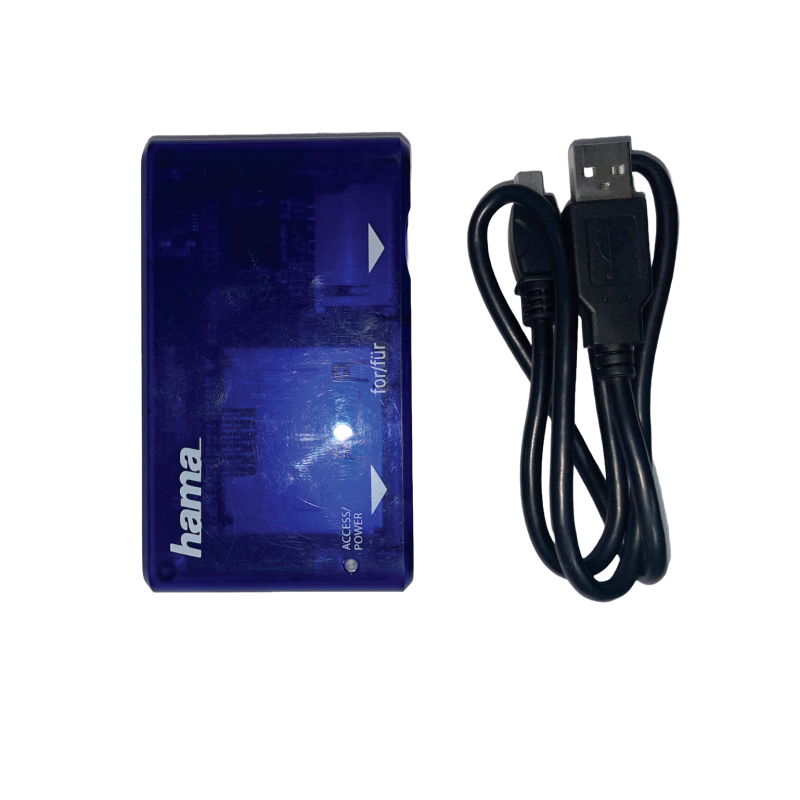

1 x card reader and usb to usb mini cable
