SOM Survey Instruments

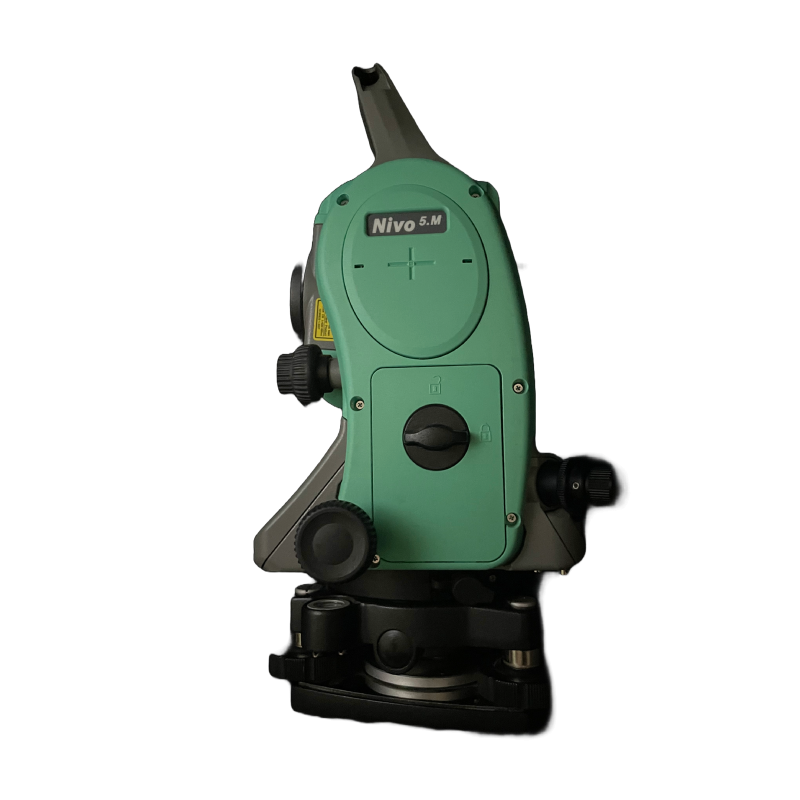

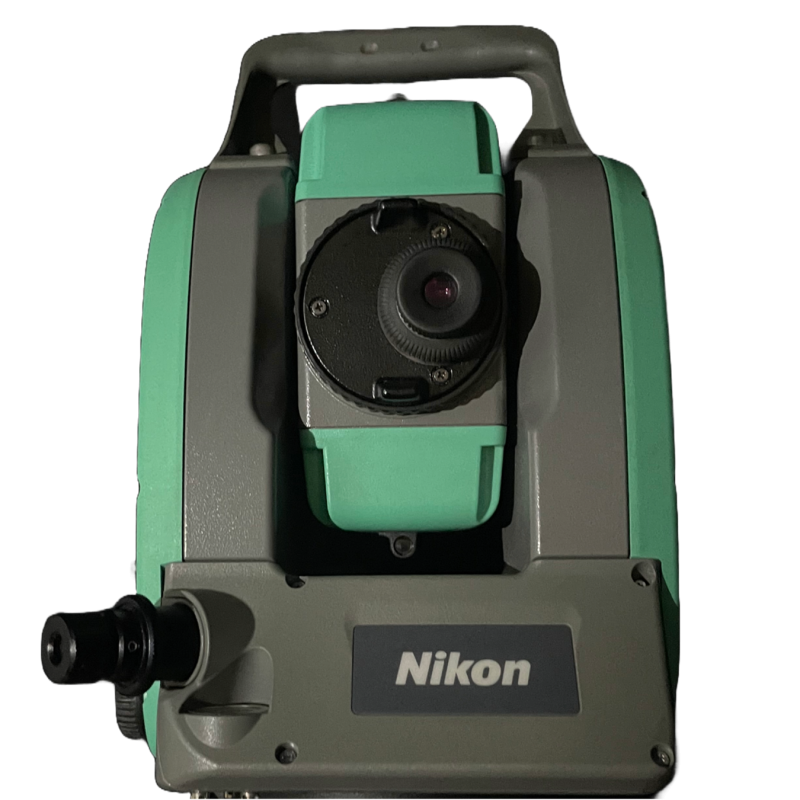

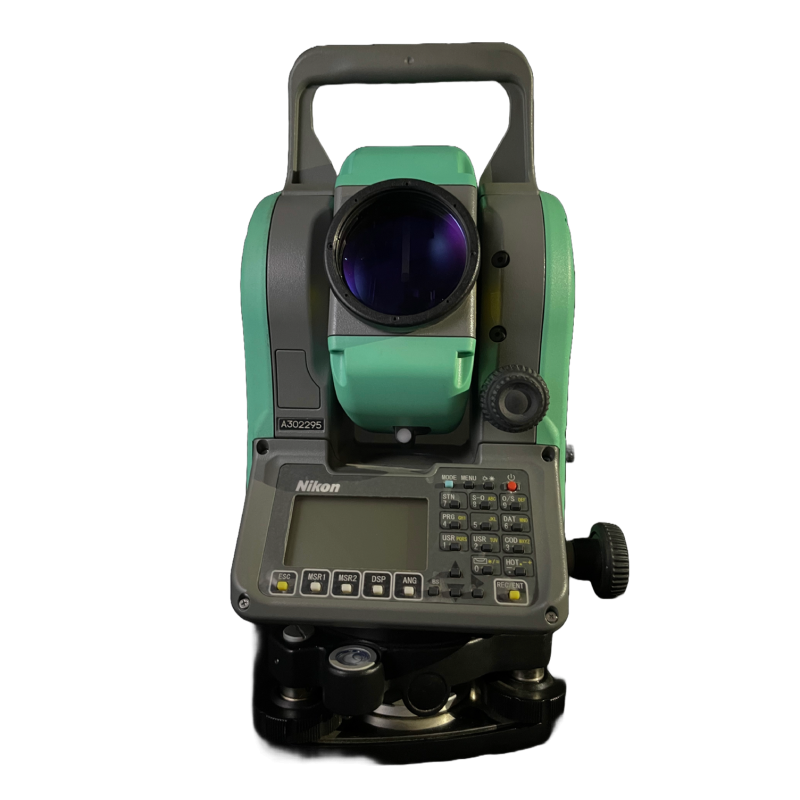

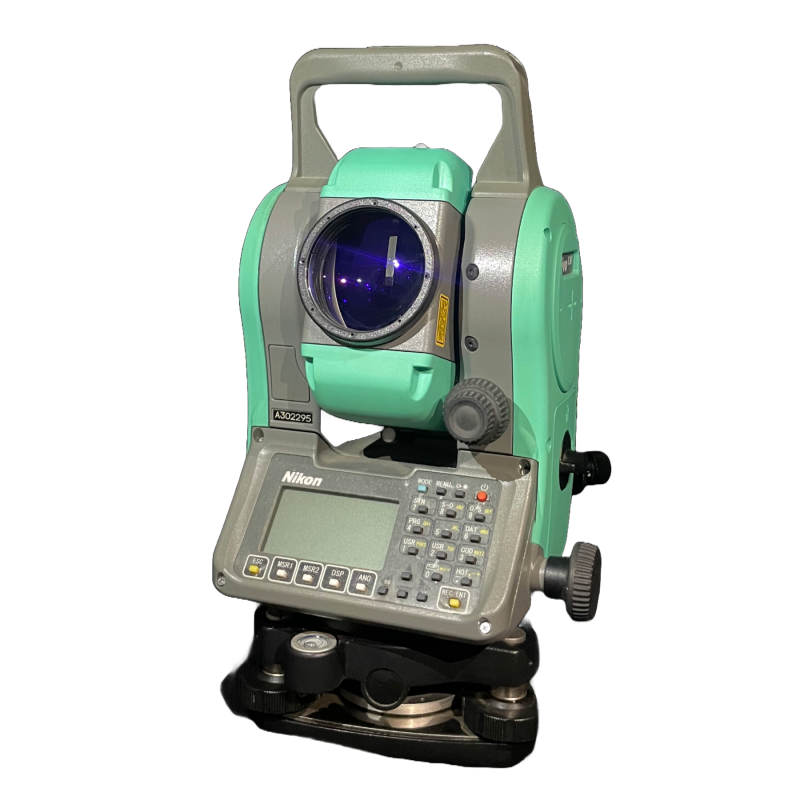

Nikon Nivo 5.m Total Station
Used
R29,899
Inclusive all taxes
-
R29,899Sold by SOM Survey Instruments
Description
Nikon Nivo 5.M has legendary Nikon high clarity optics, allow clearer images in bright and low light conditions, making measurements easy and reducing eye stress.
Nikon has combined simplicity and quality together in perfect harmony to produce the Nikon M+ Series.
Verified: Class A - Fully Tested and Operational
This product has been visually inspected and matches the description provided. It powers on and has been tested to ensure all key functions are working as expected.

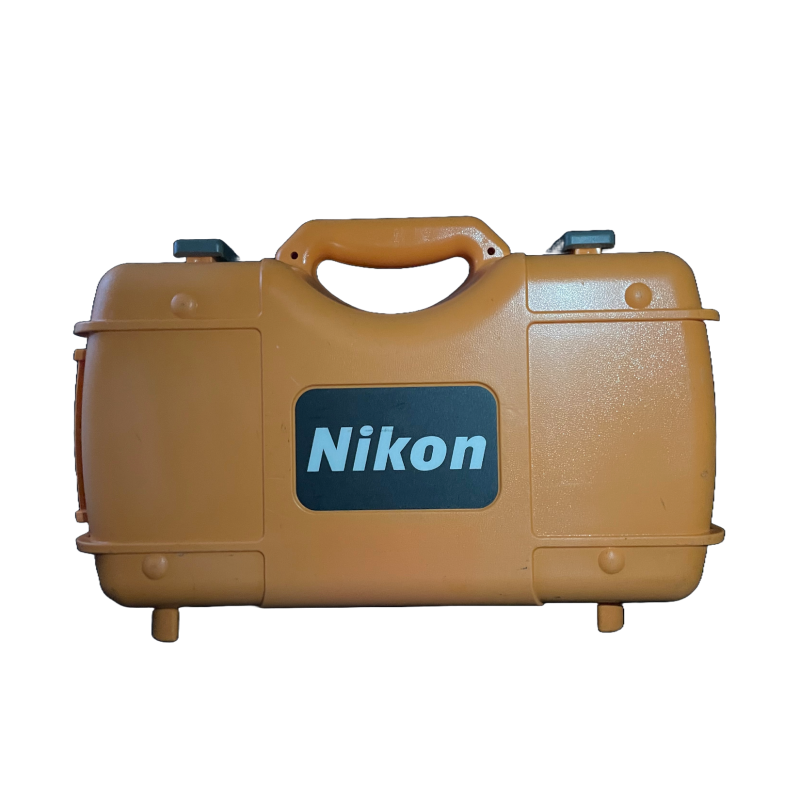

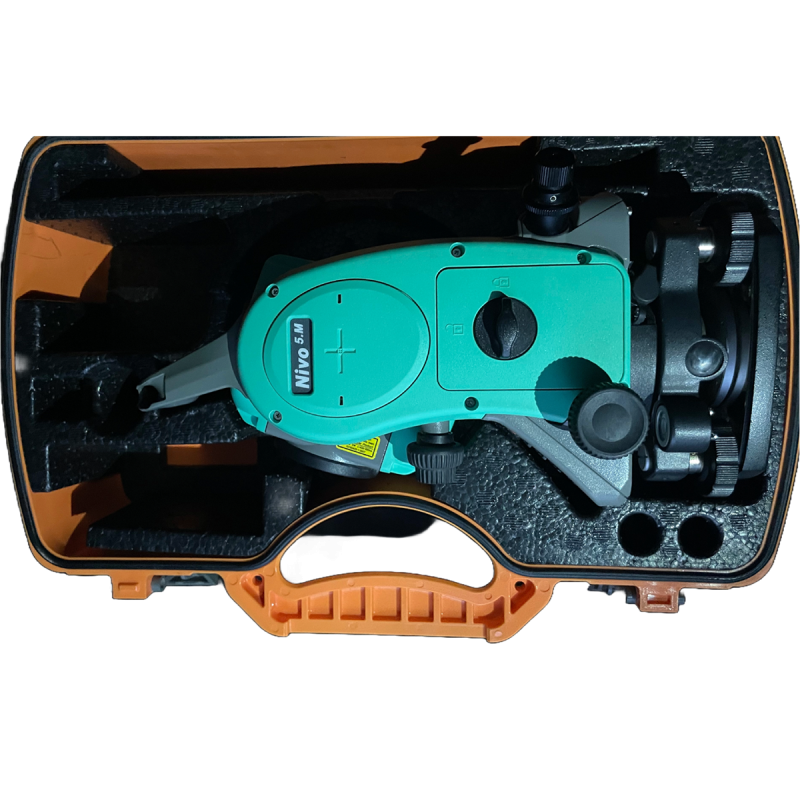

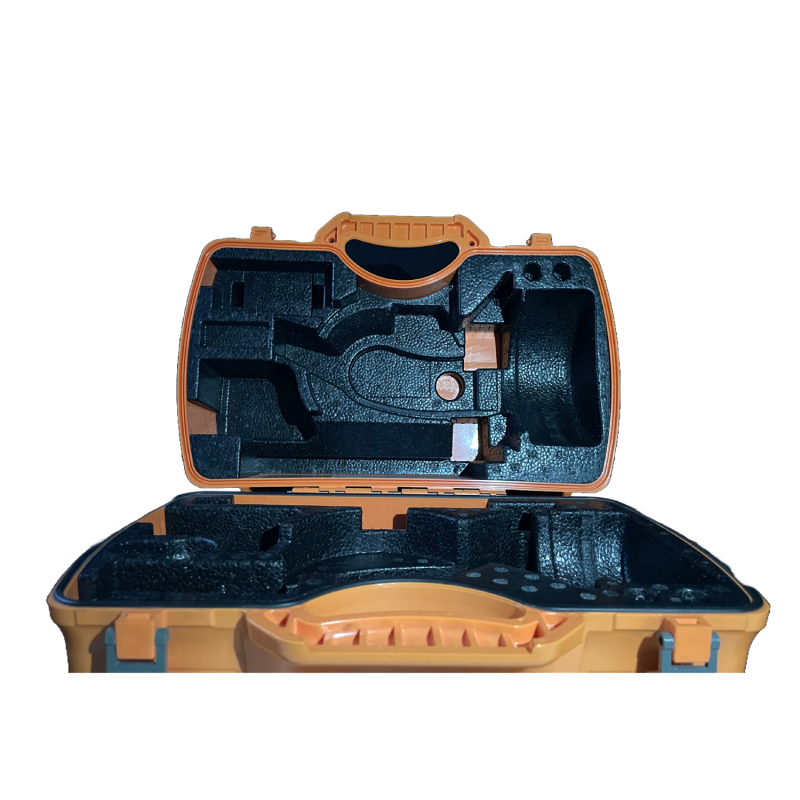

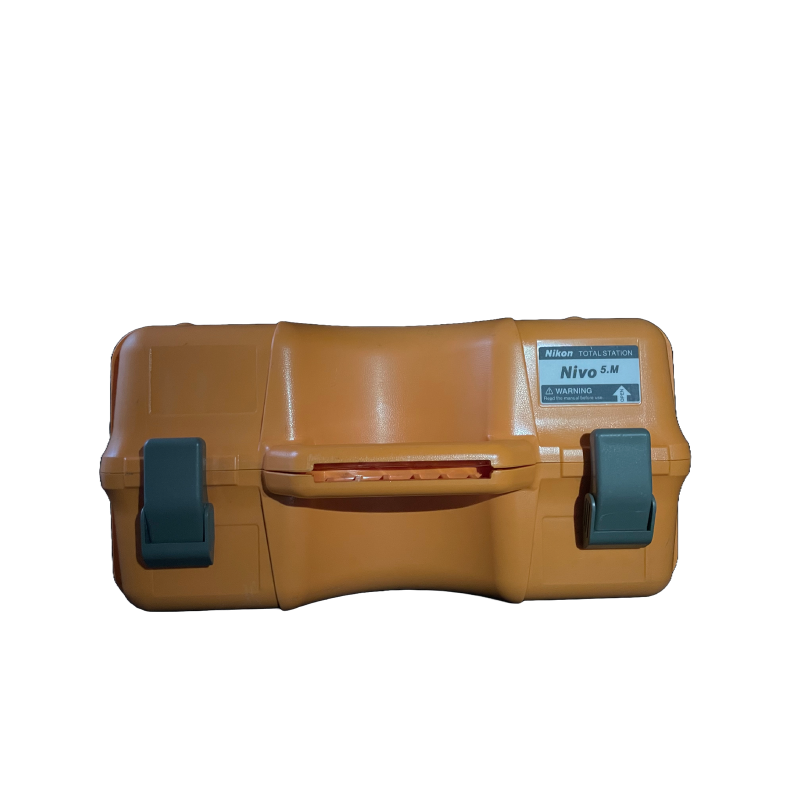

Nikon Nivo M+ 5″ Total Station in very good working condition. Includes 2x batteries, charger, tribrach and hard carry case.
Specifications:
| DISTANCE MEASUREMENT | |||
| Range with Nikon specified prisms (Good conditions) With reflector sheet 5 cm x 5 cm ( 2 in x 2 in) |
|||
| Nivo5.M | 1.5 m to 300 m (4.9 ft to 984 ft) | ||
| With single prism 6.25 cm (2.5 in) | |||
| Nivo5.M | 1.5 m to 5,000 m (4.9 ft to 16,404 ft) | ||
| Range reflectorless mode | |||
| Nivo5.M | Good | Normal | Difficult |
| KGC (18%) | 280 m (920 ft) | 250 m (820 ft) | 200 m (656 ft) |
| KGC (90%) | 500 m (1,640 ft) | 500 m (1,640 ft) | 300 m (984 ft) |
| Shortest possible range | 1.5m (4.9 ft) | ||
| Accuracy (Precise mode) ISO17123-4 |
|||
| Prism | ±(2+2 ppm × D) mm | ||
| Reflectorless | ±(3+2 ppm x D) mm | ||
| Measuring interval | |||
| Prism mode | Precise mode | Normal mode | |
| Nivo5.M | 1.5 s | 0.8 s | |
| Reflectorless modeviii | |||
| Nivo5.M | 1.8 s | 1.0 s | |
| Least count | 1 mm (0.002 ft) | 10 mm (0.02 ft) | |
| ANGLE MEASUREMENT | |||
| ISO 17123-3 accuracy (horizontal and vertical) | 5"/1.5 mgon Nivo5.M | ||
| Reading system | Absolute encoder | ||
| Circle diameter | 62 mm (2.4 in) | ||
| Horizontal/Vertical angle | Single Nivo5.M | ||
| Minimum increment | Degree: 1/5/10" Gon: 0.2/1/2 mgon MIL6400: 0.005/0.02/0.05 mil |
||
| TELESCOPE | |||
| Tube length | 125 mm (4.9 in) | ||
| Image | Erect | ||
| Magnification | 30× (18x/36x with optional eyepieces) | ||
| Nivo5.M Effective diameter of objective | 45 mm (1.8 in) | ||
| Nivo5.M EDM diameter | .50 mm (2.0 in) | ||
| Field of view | 1°20' | ||
| Resolving power | 3" | ||
| Minimum focusing distance | 1.5 m (4.9 ft) | ||
| Laser Pointer | Coaxial Red Light | ||
| TILT SENSOR | |||
| Type | Dual-axis | ||
| Method | Liquid-electric detection | ||
| Compensation range | ±3.5' | ||
| COMMUNICATIONS | |||
| Communication ports | 1 x serial (RS-232C) | ||
| Wireless communications | integrated Bluetooth | ||
| POWER | |||
| Internal Li-ion battery (x2) | |||
| Output voltage | 3.8 V DC | ||
| Operating timeix Nivo5.M |
approx. 10 hours (continuous distance/angle measurement) approx. 26 hours (distance/angle measurement every 30 seconds) approx. 31 hours (continuous angle measurement) |
||
| Charging time Full charge |
4 hours | ||
| GENERAL SPECIFICATIONS | |||
| Level vials | |||
| Sensitivity of circular level vial | 10'/2 mm | ||
| Optical plummet | |||
| Image | Erect | ||
| Magnification | 3× | ||
| Field of view | 5° | ||
| Focusing range | 0.5 m (1.6 ft) to ∞ | ||
| Display face 1 | backlit, graphic LCD (128x64 pixel) | ||
| Display face 2 | backlit, graphic LCD (128x64 pixel) | ||
| Laser plummet (optional) | 4 levels | ||
| Point memory | 10,000 records | ||
| Dimensions (W x D x H) | 149 mm x 145 mm x 306 mm (5.8 in x 5.7 in x 12.0 in) |
||
| Weight (approx.) Nivo5.M Main unit (without batteries) |
3.7 kg (8.1 lb) | ||
| Battery | 0.1 kg (0.2 lb) | ||
| ENVIRONMENTAL | |||
| Operating temperature range | –30 °C to +50 °C (–22 °F to +122 °F) | ||
| Storage temperature range | –30 °C to +60 °C (–22°F to +140 °F) | ||
| Atmospheric correction | |||
| Temperature range | –40 °C to +60 °C (–40 °F to +140 °F) | ||
| Barometric pressure | 400 mmHg to 999 mmHg/533 hPa to 1,332 hPa/15.8 inHg to 39.3 inHg |
||
| Dust and water protection | IP66 | ||
