Specifications
01 MECHANICAL
- DIMENSIONS:: 56.4 MM X 45.3 MM X 14.6 MM
- OPERATING T°: -20° C TO +65° C
- WEIGHT:: 35 G
02 ELECTRICAL
- ANTENNA DC BIAS:: 3.3 V
- POWER SUPPLY VOLTAGE ON USB OR JST-GH CONECTORS: 4.75 - 5.5 V
- TYPICAL CURRENT CONSUMPTION @ 5V:: 300 MA
03 POSITIONING
- KINEMATIC HORIZONTAL:: 7 MM + 1 PPM
- KINEMATIC VERTICAL:: 14 MM + 1 PPM
- STATIC HORIZONTAL:: 4 MM + 0.5 PPM
- STATIC VERTICAL: : 8 MM + 1 PPM
04 CONNECTIVITY
- BLUETOOTH:: 4.0 / 2.1 EDR
- DISTANCE:: UP TO 8 KM
- FREQUENCY RANGE:: 868 / 915 MHZ
- LORA RADIO:: (SOLD SEPERATELY)
- PORTS: : USB, UART, EVENT
- WI-FI:: 802.11 B / G/ N
05 DATA
- CORRECTIONS:: NTRIP, VRS, RTCM3
- DATA LOGGING:: RINEX WITH EVENTS WIHT UPDATE RATE UP TO 10 HZ
- INTERNAL STORAGE:: 16 GB
- POSITION OUTPUT:: NMEA, LLH / XYZ
06 GNSS
- NUMBER OF CHANNELS:: 184
- SIGNAL TRACKED:: GPS / QZSS LC/A, L2C GLONASS L1OF, L2OF BEIDOU B1I, B2I GALILEO E1 - B/C, E5B
- UPDATE RATES:: 10 HZ GNSS
Description

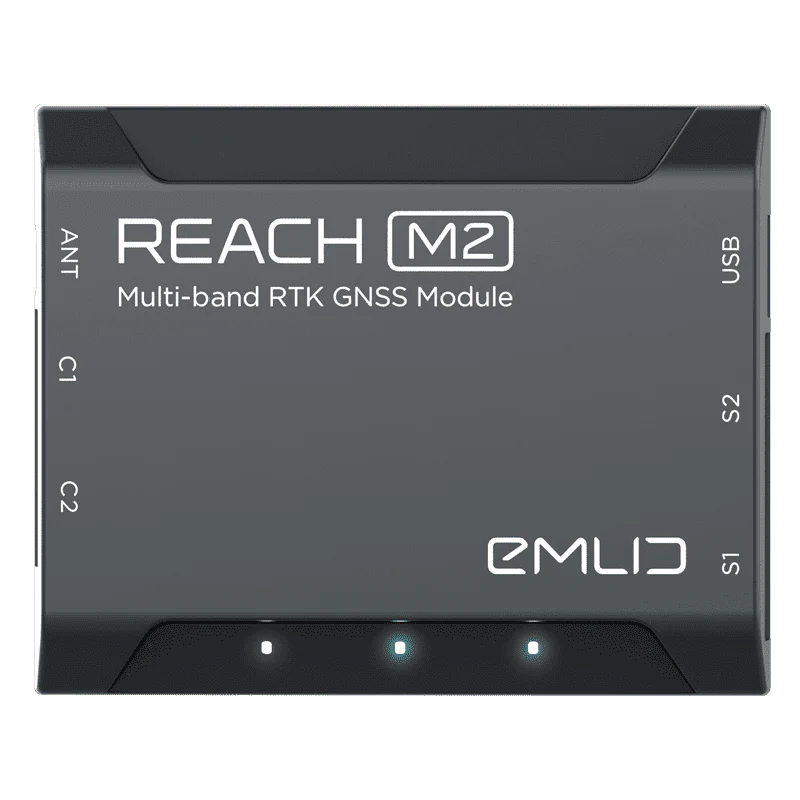

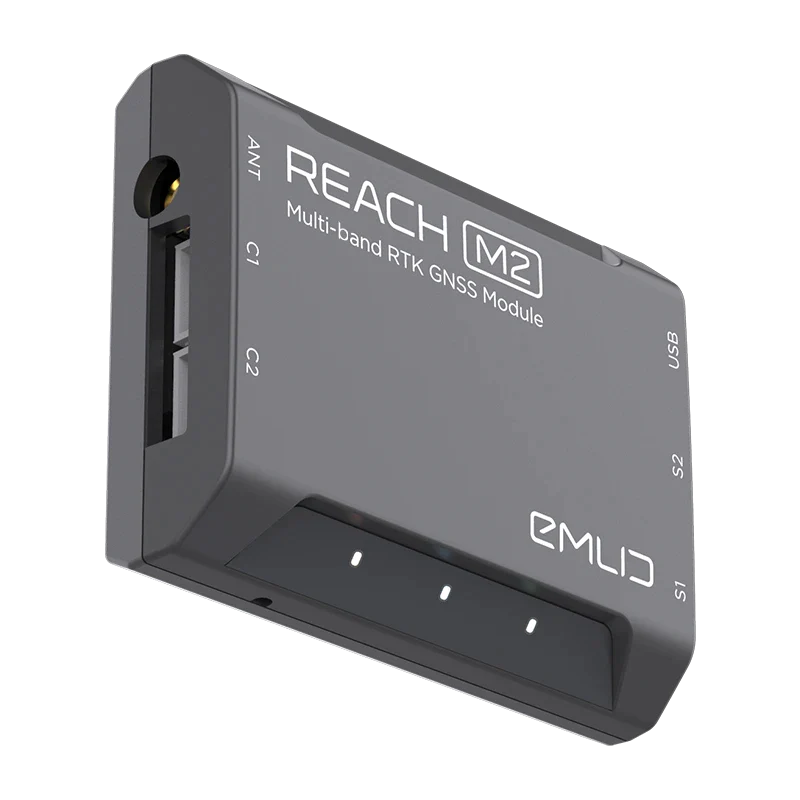

Multi-Band RTK GNSS Module For Precise Navigation and UAV Mapping.
Package Includes:
— Reach M2
— Micro-USB cable
— JST-GH 6-pin to jumper pin cable
— JST-GH 5-pin to jumper pin cable
