EMLID

Emlid Reach M2 With GNSS Antenna Kit

$699
Quantity
Delivery options
  • 12 Months warranty
  • 3 Days Return Back Policy
  • 3 Days Cancellation Policy
  • Ship Only

Specifications

01 MECHANICAL
  • DIMENSIONS:: 56.4 MM X 45.3 MM X 4.6 MM
  • OPERATING:: -20° C TO + 65° C
  • WEIGHT:: 35G
02 ELECTRICAL
  • ANTENNA DC BIAS: 3.3 V
  • POWER SUPPLY VOLTAGE ON USB OR JS - GH CONNECTORS: 4.75 - 5.5 V
  • TYPICAL CURRENT CONSUMPTION @ 5V:: 300 MA
03 POSITIONING
  • KINEMATIC HORIZONTAL:: 7 MM + 1 PPM
  • KINEMATIC VERTICAL:: 14 MM + 1 PPM
  • SATIC VERTICAL:: 8 MM + 1 PPM
  • STATIC HORIZONTAL: 4 MM + 0.5 PPM
04 CONNECTIVITY
  • BLUETOOTH:: 4.0 / 2. EDR
  • DISTANCE: 8 KM : UP TO 8 KM
  • FREQUENCY RANGE:: 868 / 915 MHZ
  • LORA RADIO : (SOLD SEPERATELY)
  • PORTS:: USB, UART, EVENT
  • WI-FI:: 802.11 B / G / N
05 DATA
  • CORRECTIONS:: NTRIP, VRS, RTCM3
  • DATA LOGGING:: RINEX WITH EVENTS WITH UPDATE RATE OF UP TO 10 HZ
  • INTERNAL STORAGE:: 16 GB
  • POSITION OUTPUT:: NMEA, LLH / XYZ
06 GNSS
  • NUMBER OF CHANNELS:: 184
  • SIGNAL TRACKED:: GPS / QZSS L1C/A, LC GLONASS L1OF, L2OF BEIDOU B1I, B2I GALILEO E1 - B / C, E5B
  • UPDATE RATES:: 10 HZ GNSS

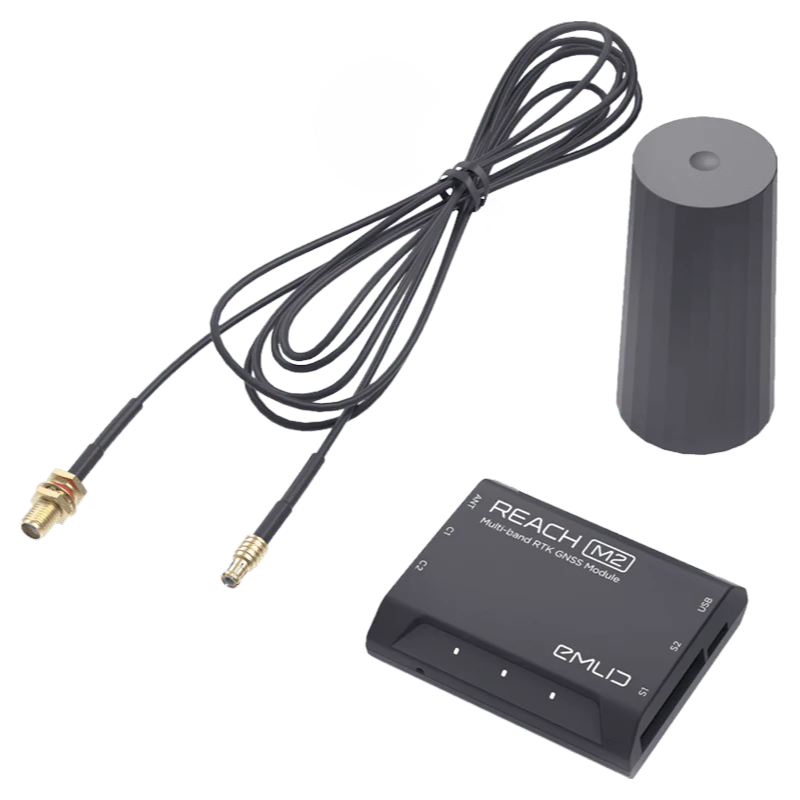

Kit Includes:

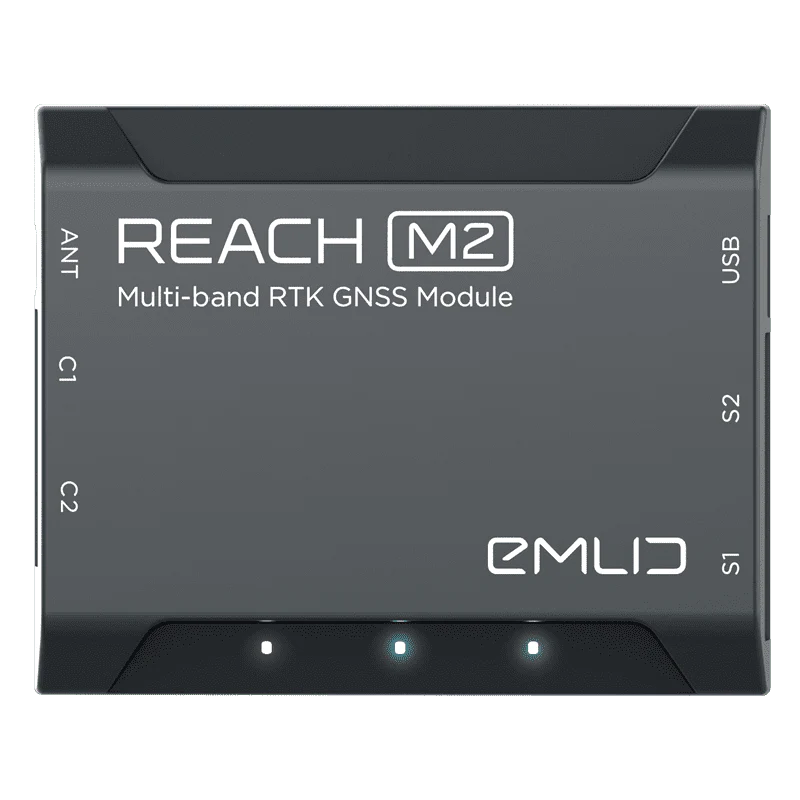

— Reach M2

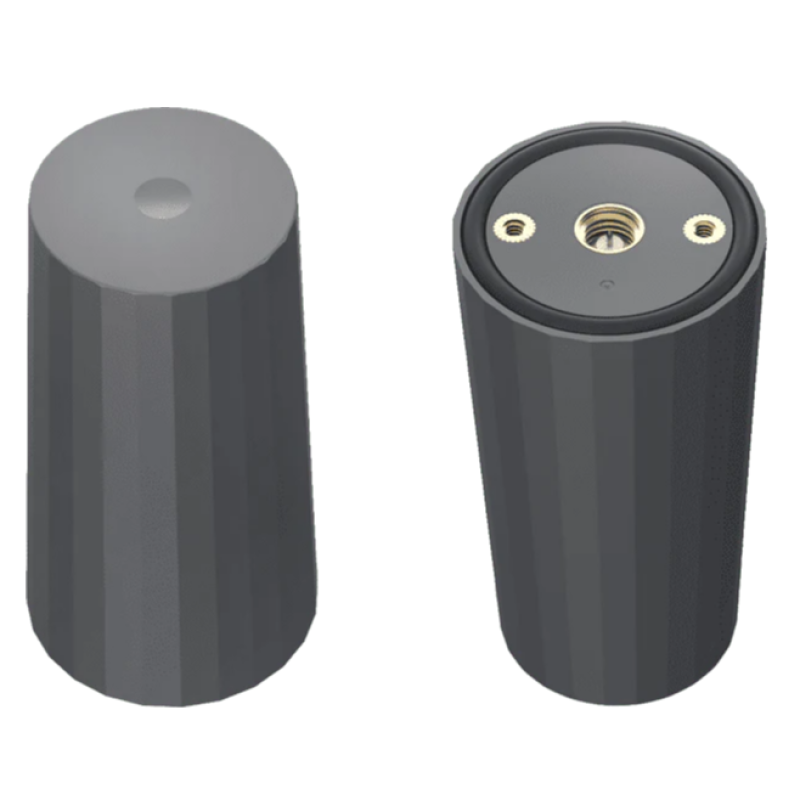

— Multi-band GNSS antenna

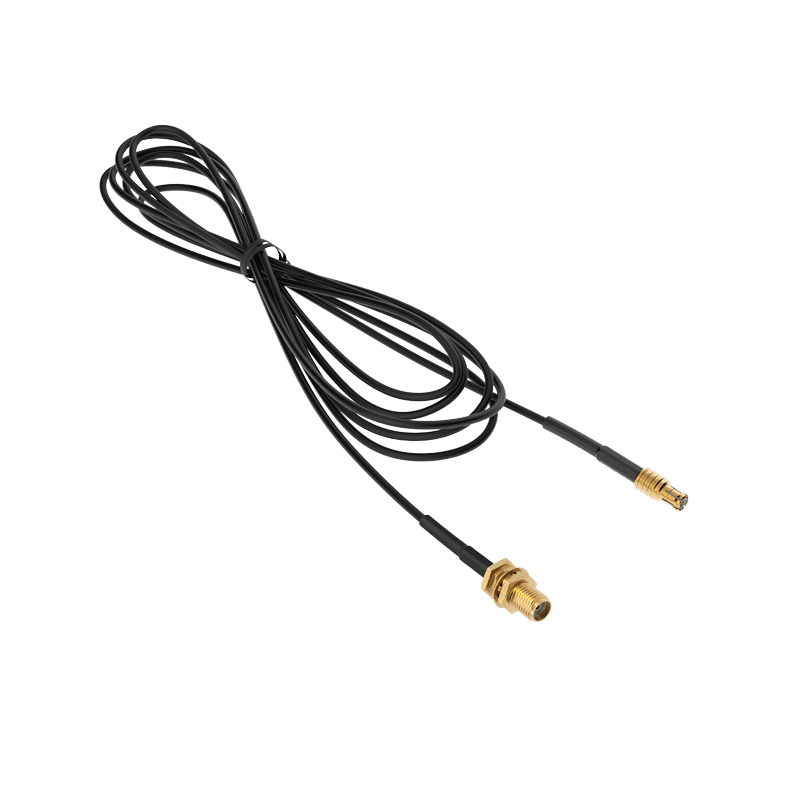

— Reach M+/M2 SMA antenna adapter cable 0.5m
— Micro-USB cable
— JST-GH 6-pin to jumper pin cable
— JST-GH 5-pin to jumper pin cable
