Specifications
01 POSITIONING
- CONVERGENCE TIME: ~ 5 S TYPICALLY
- IMU : 9DOF
- NUMBER OF CHANNELS: 184
- PRECISION : STATIC: V: 8 MM + 1 PPM
- PRECISION: PPK H: 5 MM +0.5 PPM
- PRECISION : PPK V: 10 MM + 1 PPM
- PRECISION: RTK V: 14 MM + 1 PPM
- PRECISION: STATIC: H: 4 MM + 0.5 PPM
- SIGNAL TRACKED: GPS / QZSS / L1C/A, L2C, GLONASS L1OF, L2OF, BEIDOU B1I, B2I, GALILEO E1 - B/C, E5B
- UPDATE RATES: UP TO 10 HZ
01 POSITIONING
- PRECISION: RTK H: 7 MM + 1 PPM
02 CONNECTIVITY
- BANDS: UMTS (WCDMA / FDD): 1, 3, 2, 4, 5, 6, 8, 19
- BLUETOOTH: 4.0 / 2.1 EDR
- DATA PROTOCOLS: POSITION OUTPUT: NMEA, LLH / XYZ
- DATA PROTOCOLS: CORRECTIONS: NTRIP, RTCM3
- INTERNAL STORAGE: 16 GB
- LTE MODEM : REGIONS: GLOBAL
- LTE MODEM: BANDS: FDD - LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
- LTE MODEM : BANDS: TD - LTE: 38, 40, 41
- LTE MODEM: QUAD-BAND, 850 / 1900, 900 / 1800 MHZ
- LTE MODEM: SIM CARD: NANO-SIM
- PORTS: RS - 232, USB TYPE - C
- UHF LORA RADIO : DISTANCE: UP TO 8 KM
- UHF LORA RADIO : FREQUENCY RANGE: 868 / 915 MHZ
- UHF LORA RADIO : POWER: 0.1 W
- WI-FI: 802.11 B / G/ N
02 CONNECTVITY
- DATA LOGGING: RINEX AT UPDATE RATE UP TO 10 HZ
03 MECHANICAL
- DIMENSIONS: 126 MM X 126 MM X 142 MM
- INGRESS PROTECTION: IP67 WATER AND DUSTPROOF
- TEMPERATURE: -20° C TO + 65° C
- WEIGHT: 950 G
04 ELECTRICAL
- AUTONOMY: 16 HRS AS LTE RTK ROVER
- BATTERY : LIFEPO4 6400 MAH, 6.4 V
- CHARGING : USB - C 5 V 2 A
- EXTERNAL POWER INPUT: 6 - 40 V
Description

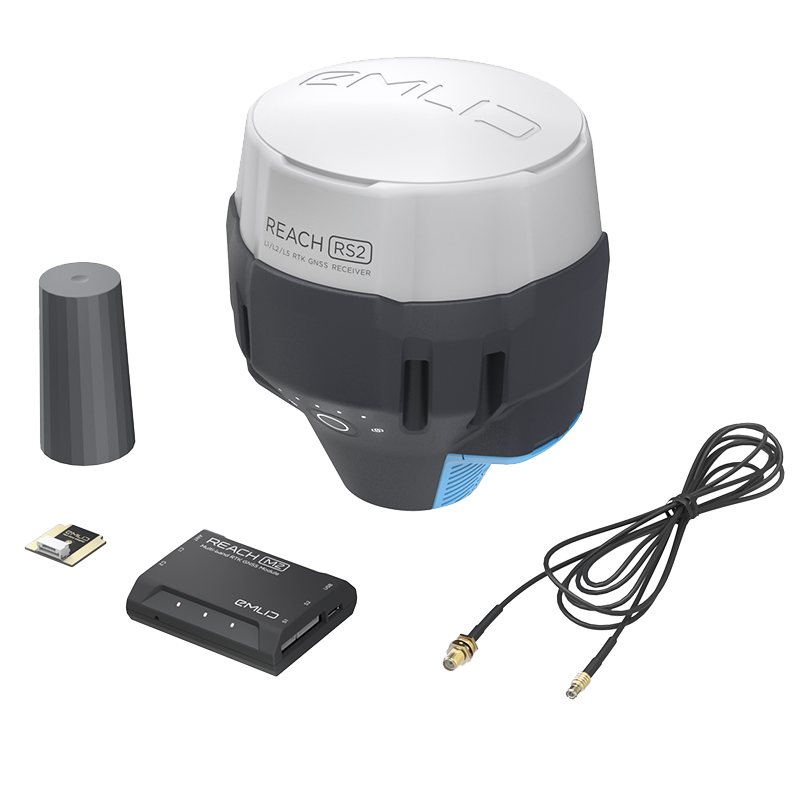

Kit Includes:

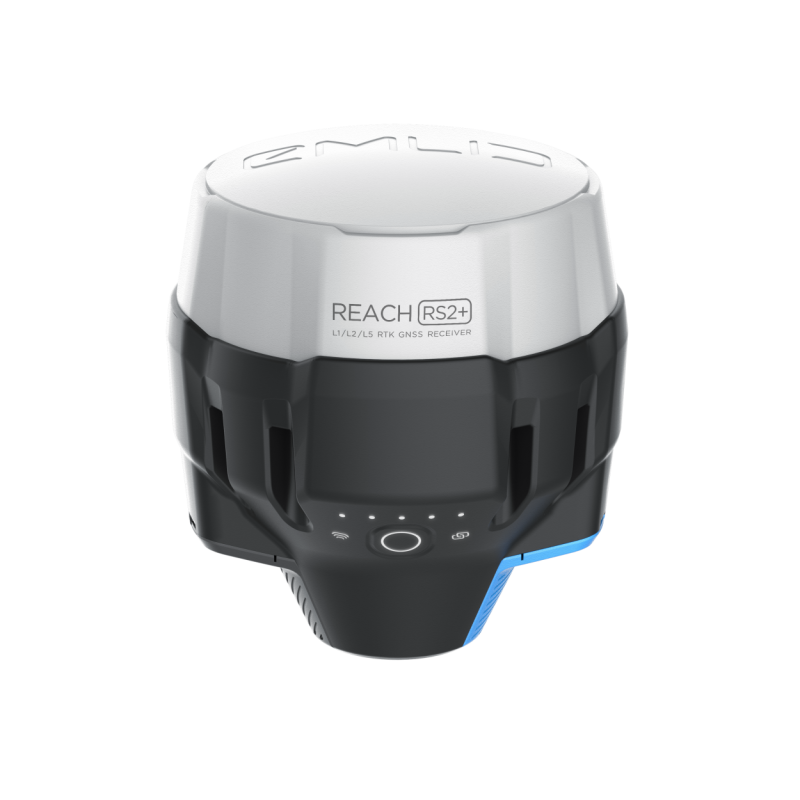

- 1x Emlid Reach RS2+

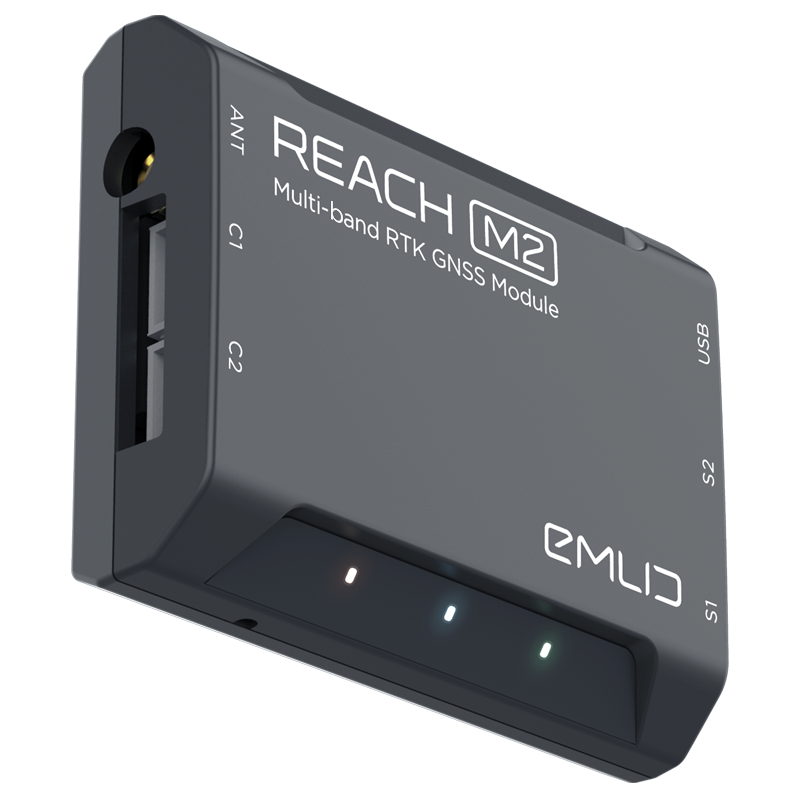

- 1x Emlid Reach M2
- 1x Multi-Band GNSS Antenna
- Reach M+/M2 SMA Antenna Adapter Cable 0.5m
- Camera Hot Shoe Adapter
- Radio Antenna
- RS2+ Carry Case with a strap, USB Type C Cable
- JST-GH 6-Pin To Jumper Pin Cable
- JST-GH 5-Pin To Jumper Pin Cable
