EMLID
Reach RS2+ With M2 UAV RTK Kit
R66,199
Inclusive all taxes
-
R66,199Sold by SOM Survey Instruments
Specifications
01 POSITIONING
- CONVERGENCE TIME: ~5S TYPICALLY
- IMU: 9DOF
- NUMBER OF CHANNELS: 184
- PRECISION : PPK: V: 10 MM + 1 PPM
- PRECISION:: STATIC: V: 8 MM + 1 PPM
- PRECISION:: STATIC: H: 4 MM + 0.5 PPM
- PRECISION:: RTK: V: 14 MM + 1 PPM
- PRECISION:: RTK: H: 7 MM + 1 PPM
- PRECISION:: PPK: H: 5 MM + 0.5 PPM
- SIGNAL TRACKED: GPS / QZSS / L1C/A, L2C, GLONASS, L1OF, L2OF, BEIDOU B1I, B2I, GALILEO E1 - B / C, E5B
- UPDATE RATES: UP TO 10 HZ
02 CONNECTIVITY
- BLUETOOTH: 4.0 / 2.1 EDR
- DATA LOGGING: RINEX AT UPDATE RATE UP TO 10 HZ
- DATA PROTOCOLS: POSITION OUTPUT NMEA, LLH / XYZ
- DATA PROTOCOLS: CORRECTIONS NTRIP, RTCM3
- INTERNAL STORAGE: 16 GB
- LTE MODEM: SIM CARD NANO - SIM
- LTE MODEM: UMTS (WCDMA / FDD): 1, 3, 2, 4, 5, 6, 8, 19
- LTE MODEM: TD - LTE: 38, 40, 41
- LTE MODEM : QUAD-BAND, 850 / 1900, 900 / 1800 MHZ
- LTE MODEM : BANDS FDD - LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
- LTE MODEM : REGIONS GLOBAL
- PORTS: RS-232, USB TYPE-C
- UHF LORA RADIO : FREQUENCY RANGE 868 / 915 MHZ
- UHF LORA RADIO : POWER 0.1 W
- UHF LORA RADIO : DISTANCE: UP TO 8 KM
- WI-FI: 802.11 B / G / N
03 MECHANICAL
- DIMENSIONS: 126 MM X 126 MM X 142 MM
03 MECHANICAL
- INGRESS PROTECTION: IP67 WATER AND DUSTPROOF
- TEMPERATURE: -20° C + 65° C
- WEIGHT: 950 G
04 ELECTRICAL
- AUTONOMY: 16 HRS AS LTE RTK ROVER,
- BATTERY: LIFEPO4 6400 MAH, 6.4 V
- CHARGING : USB-C 5 V 2 A
- EXTERNAL POWER INPUT: 6 - 40 V
Description

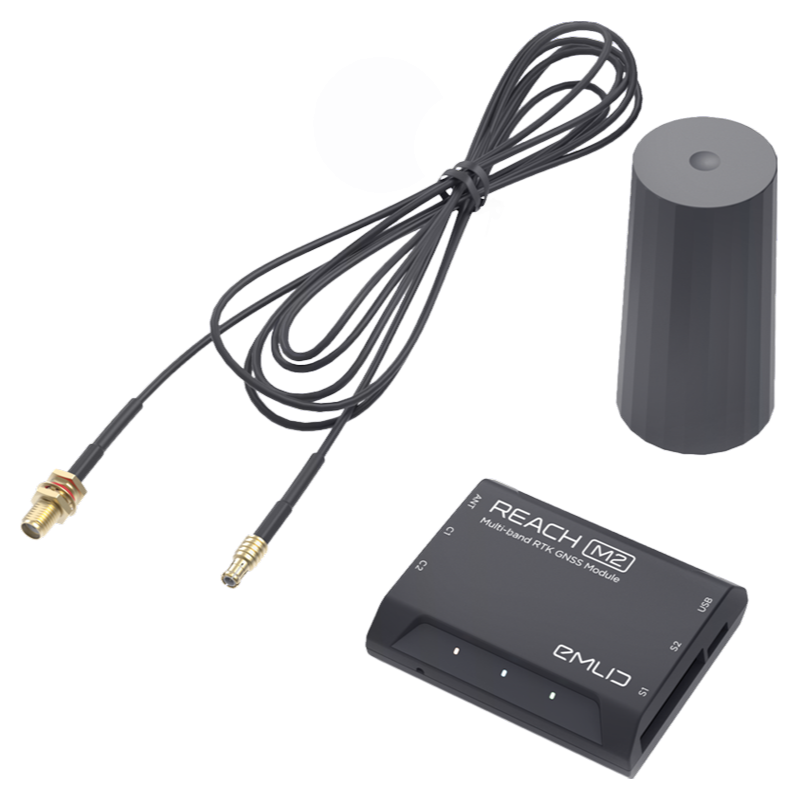

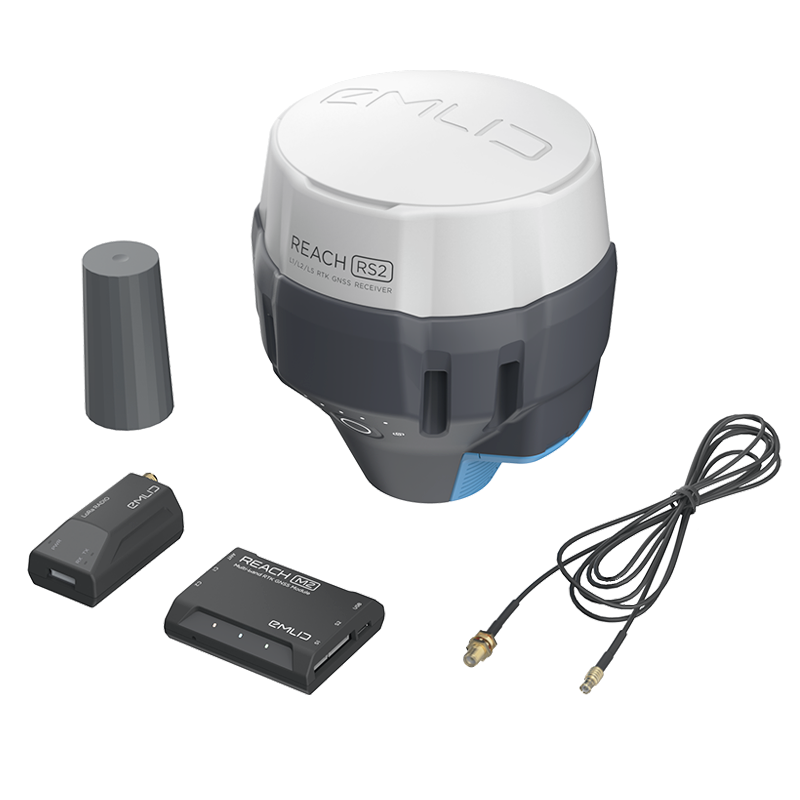

Emlid Reach RS2+ With M2 UAV RTK Kit
Upgrade GPS in your drone with the centimeter-accurate Reach M2 UAV RTK kit. Reach M2 receives corrections from Reach RS2 using LoRa radio and outputs precise coordinates to the autopilot. This kit can also be used in other applications, where moving receiver needs to be compact.

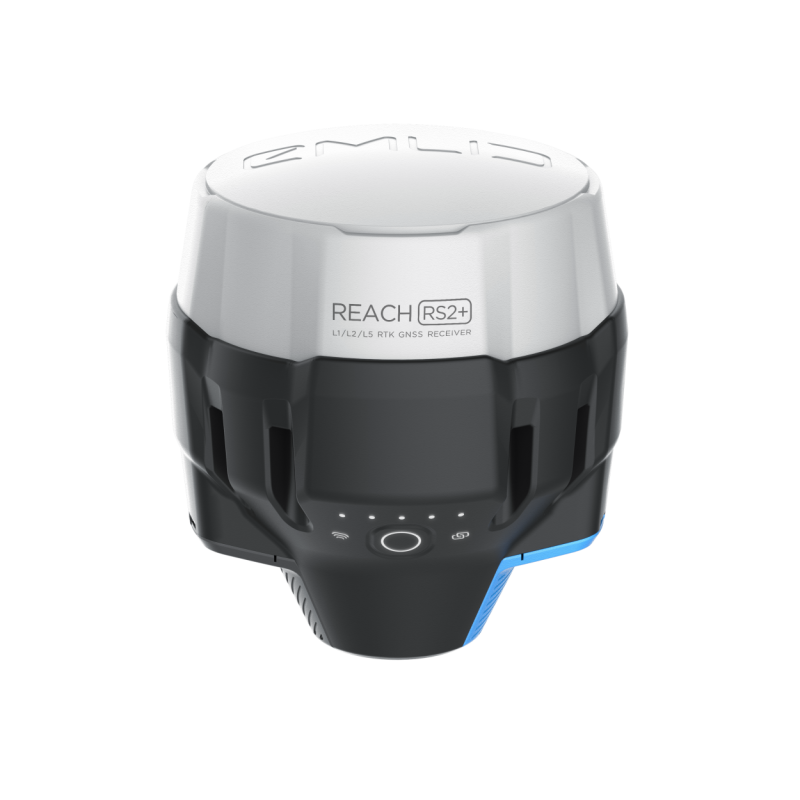

— 1x Reach RS2

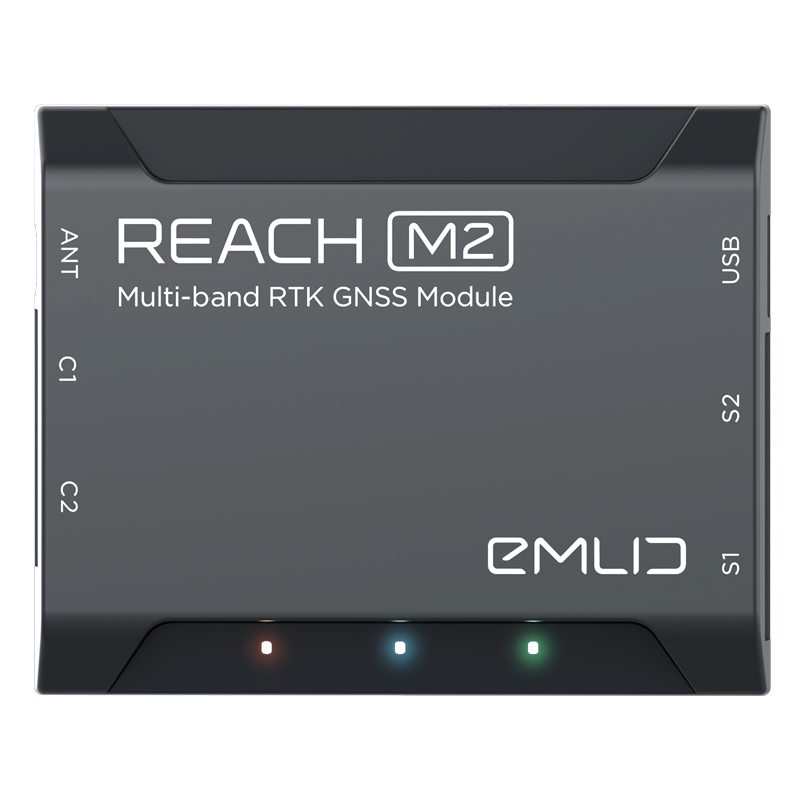

— 1x Reach M2

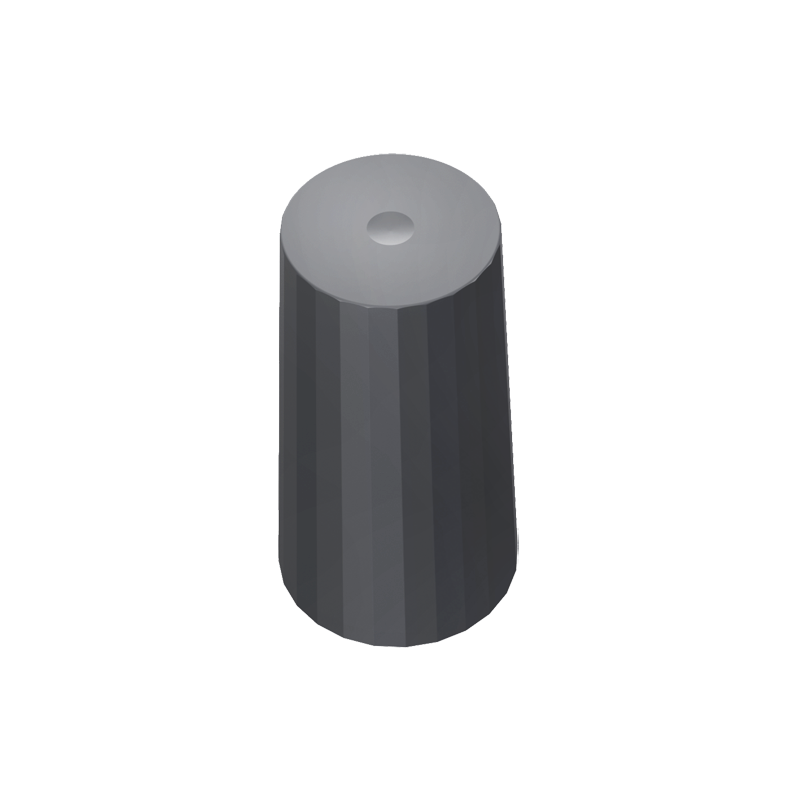

— Multi-band GNSS antenna
— Reach M+/M2 SMA antenna adapter cable 0.5m
— Reach M+/M2 LoRa radio
— Carry case with a strap
— 2x Radio antenna
— USB Type-C cable
— Micro-USB cable
— JST-GH 6-pin to jumper pin cable
— JST-GH 5-pin to jumper pin cable
