Specifications
01 MECHANICAL
- DIMENSIONS : 126 X 126 X 142 MM
- OPERATING T°: -20 TO +65°C
- WEIGHT: 950 G
01 MECHANICAL
- INGRESS PROCECTION: IP67
02 ELECTRICAL
- AUTONOMY: 16HRS AS LTE RTK ROVER, 22HRS LOGGING
02 ELECTRICAL
- BATTERY: LIFEPO4 6400 MAH, 6.4V
- CERTIFICATION: FCC, CE
- CHARGING : USB TYPE-C 5 V, 3 A
- EXTERNAL POWER INPUT: 6-40 V
03 POSITIONING
- CONVERGENCE TIME: ~5 S TYPICALLY
- PPK: H: 5 MM + 0.5 PPM
- PPK : V: 10 MM + 1 PPM
- RTK : H: 7 MM + 1 PPM
- RTK: V: 14 MM + 1 PPM
- STATIC: V: 8 MM + 1 PPM
03 POSITIONING
- STATIC : H: 4 MM + 0.5 PPM
04 CONNECTIVITY
- BLUETOOTH: 4.0/2.1 EDR
- LORA RADIO: FREQUENCY RANGE: 868/915 MHZ
- LORA RADIO: POWER: 0.1 W
- LORA RADIO: DISTANCE UP TO 8 KM
- LTE MODEM: REGION BANDS GLOBAL
- LTE MODEM: SIM CARD: NANO SIM
- LTE MODEM: REGION BANDS QUAD-BAND, 850/1900, 900/ 1800 MHZ
- LTE MODEM: REGION BANDS TD-LTE: 38, 40, 41
- LTE MODEM: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
- PORTS: RS-232, USB TYPE-C
- WI-FI: 802.11 B/G/N
04 CONNECTIVITY
- LTE MODEM : UMTS (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19
04 DATA
- CORRECTIONS: NTRIP, RTCM3
05 DATA
- DATA LOGGING: RINEX
- INTERNAL STORAGE: 16 GB
- INTERNAL STORAGE: 160+ DAYS OF LOGGING AT 1 HZ
- POSITION OUTPUT: NMEA, LLH/XYS
06 GNSS
- NUMBER OF CHANNELS: 184
06 GNSS
- SIGNAL TRACKED: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF
- SIGNALS TRACKED : BEIDOU B1I, B2I
- SIGNALS TRACKED: GALILEO E1B/C, E5B
- UPDATE RATES: UP TO 10 HZ
Description
Multi-band RTK GNSS receiver with centimeter precision
For surveying, mapping and navigation.
Comes with a mobile app.

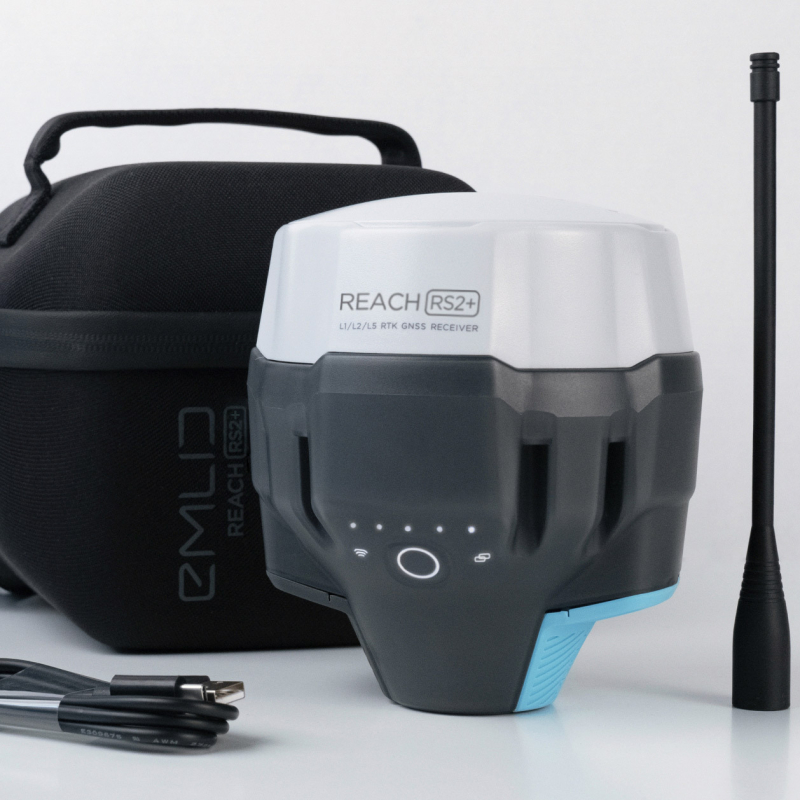

Package Includes:

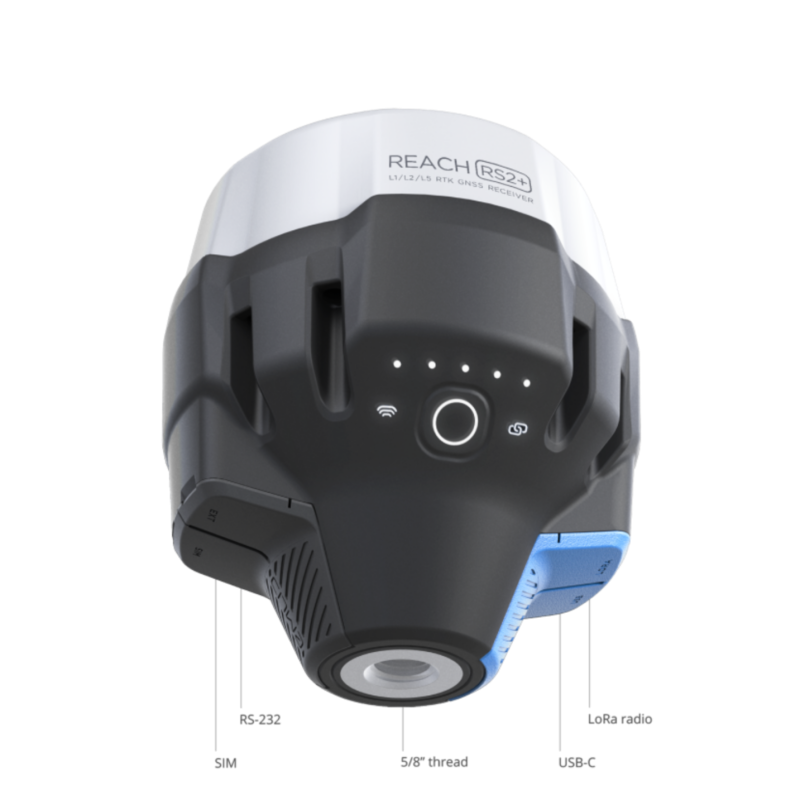

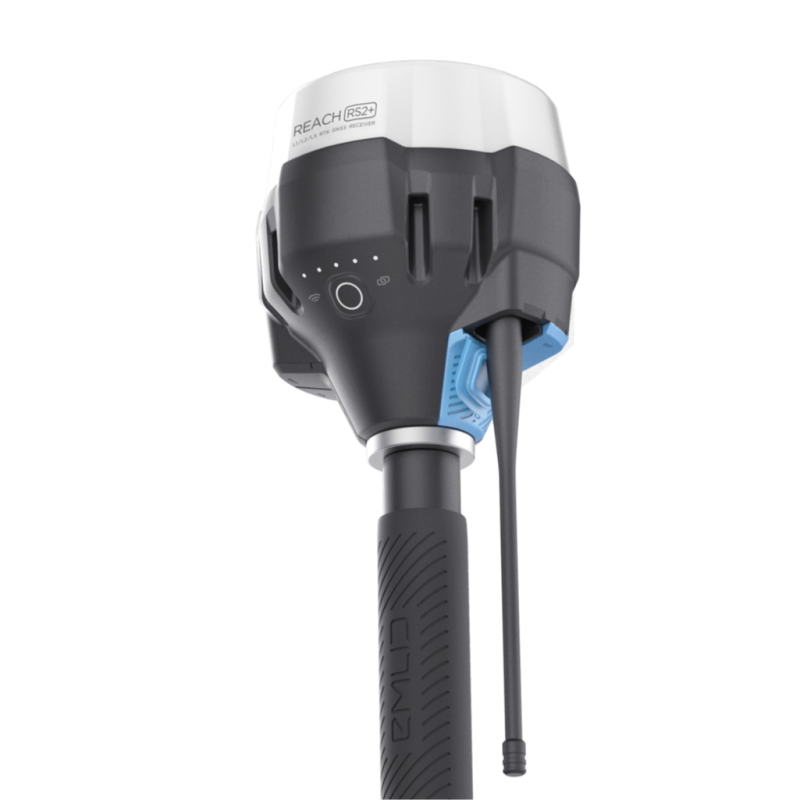

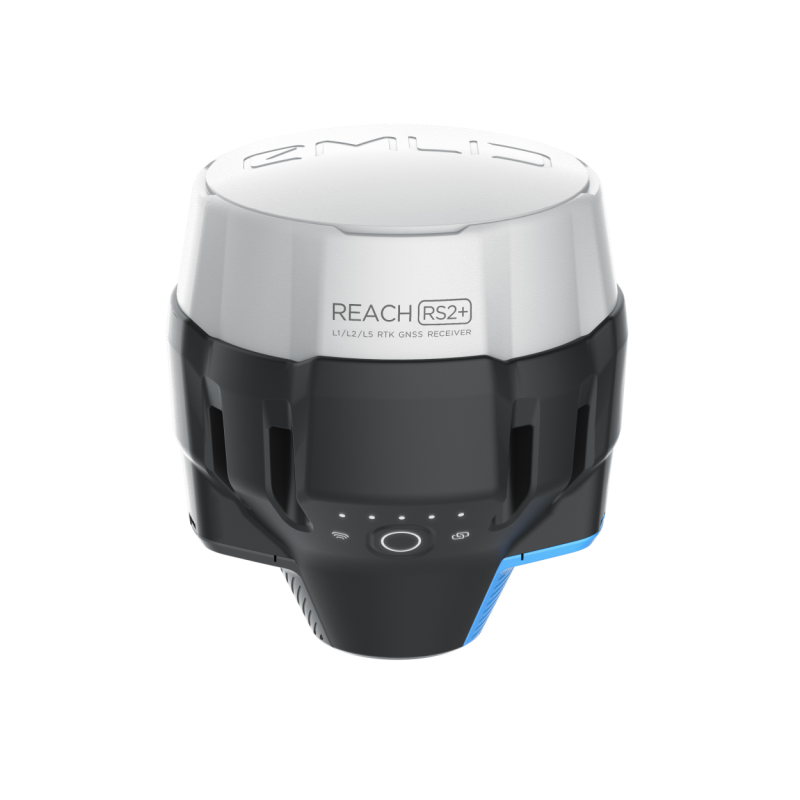

— Reach RS2+
— Carry case with a strap
— Radio antenna
— USB Type-C cable
Key Features
- Get a fix in seconds
- Work as base or rover
- 22 hours of battery life
- Built in LTE modem
- Supports working in RTK, PPP and NTRIP
- Create your own NTRIP base station
- No 1 alternative base station for DJI drones
Zero fuss, it just works!
