EMLID
Reach RS3/RS2+ Combo Survey Kit
R97,099
Inclusive all taxes
-
R97,099Sold by SOM Survey Instruments
Specifications
01 PRECISION
- PPK: H: 5 mm + 0.5 ppm V: 10 mm + 1 ppm
- RTK: H: 7 mm + 1 ppm V: 14 mm + 1 ppm
- Static: H: 4 mm + 0.5 ppm V: 8 mm + 1 ppm
- Tilt Compensation (RS3): RTK + 2 mm + 0.3 mm/°
02 TIME TO FIX
- Convergence time: ~5 s typically
03 POSITIONING
- IMU: 6DOF
- Number of Channels: 184
- Signals: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1-B/C, E5b
- Update Rate: Up to 10 Hz
04 LORA RADIO
- Communication : Transmit and receive
- Distance: Up to 8km (Terrain dependant)
- Frequency range: 868/915 MHz
- Power: 0.1 Watt
05 UHF RADIO (RS3 Only)
- Communication : Receive only
- Frequency range : 410–470 MHz
- Modulation type : GMSK
- Protocol : TRIMTALK 450S*
06 CONNECTIVITY
- Bluetooth : 4.0/2.1 EDR
- Corrections : NTRIP, RTCM3
- Data logging: RINEX, NMEA, LLH/XYZ, UBX
- Internal storage: 16 GB
- LTE Modem : Global
- Ports: RS-232, USB Type-C
- Position output : NMEA, LLH/XYZ
- Sim Card: Nano sim
07 MECHANICAL
- Dimensions: 126 x 126 x 142 mm per receiver
- Ingress protection: IP67
- Operating temperatures: -20 to +65 °C
- Weight: 950g per receiver
08 ELECTRICAL
- Autonomy (Battery Life) : 18 hrs as an RTK rover with tilt compensation, 22 hrs of logging
- Battery: Li-Ion 5200 mAh, 7.2 V, 37.44 Wh
- Charging: USB Type-C 5 V, 3 A
Description

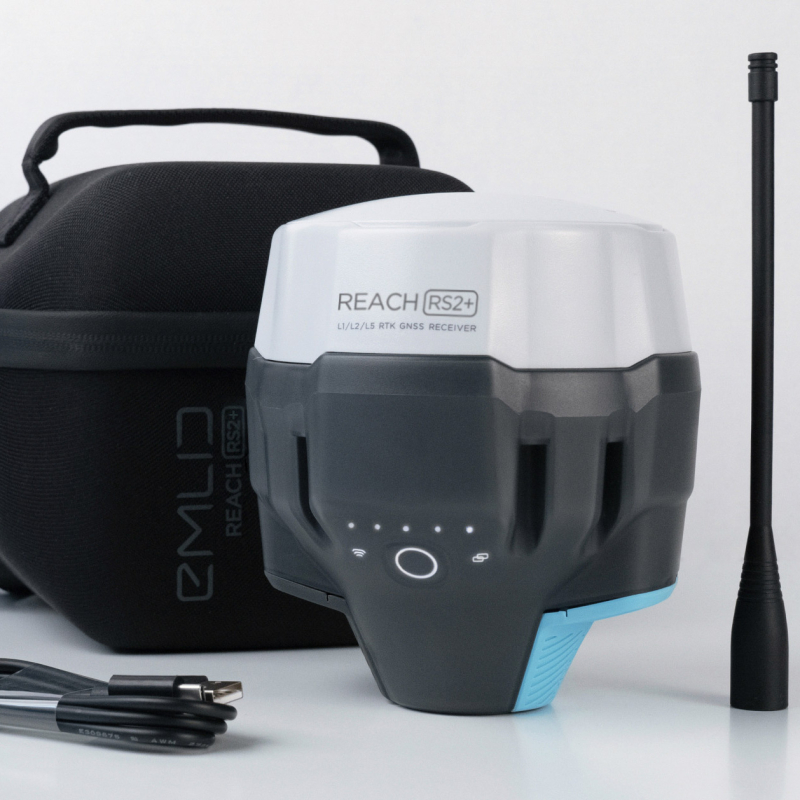

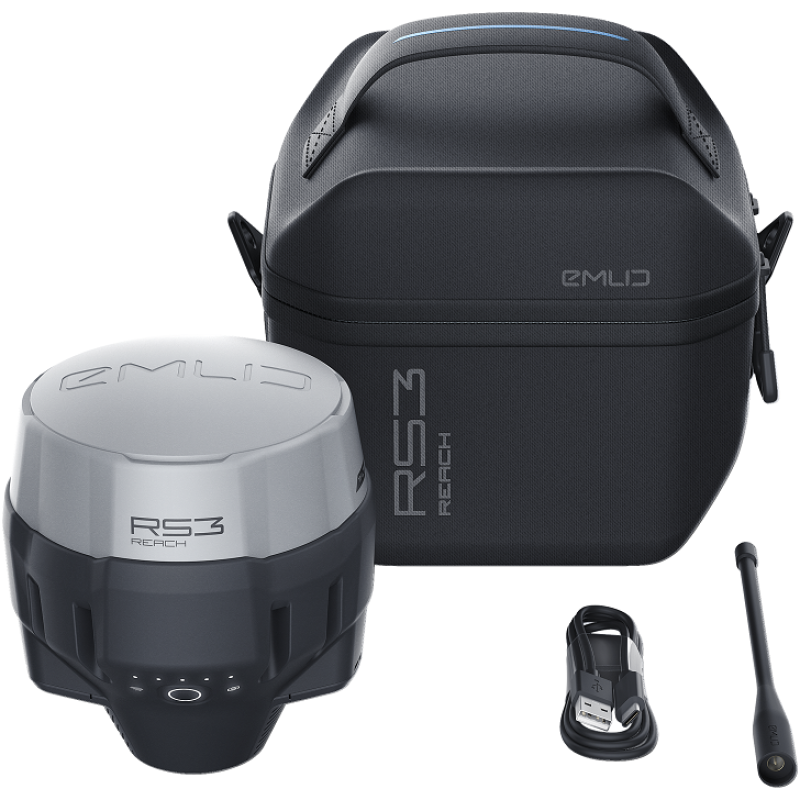

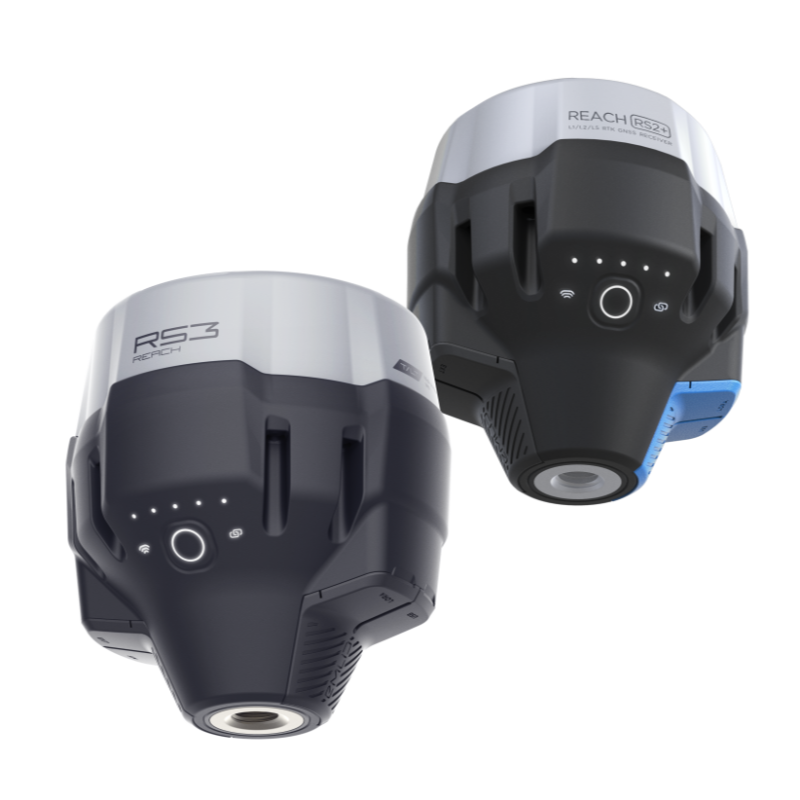

Reach RS3/RS2+ Combo Survey Kit
Two Reach multi-band receivers for surveying in RTK and PPK modes. The combo survey kit combines the best of both worlds for a next generation surveying experience.
Centimeter accuracy for surveying, mapping and data collection.
Kit Includes:

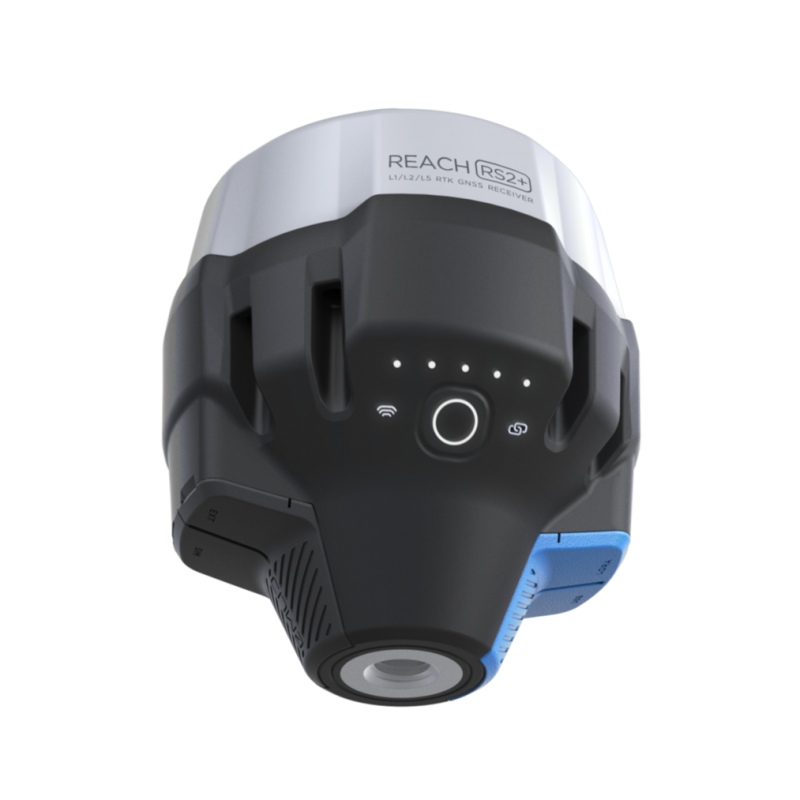

- 1x Reach RS2+ (Base)

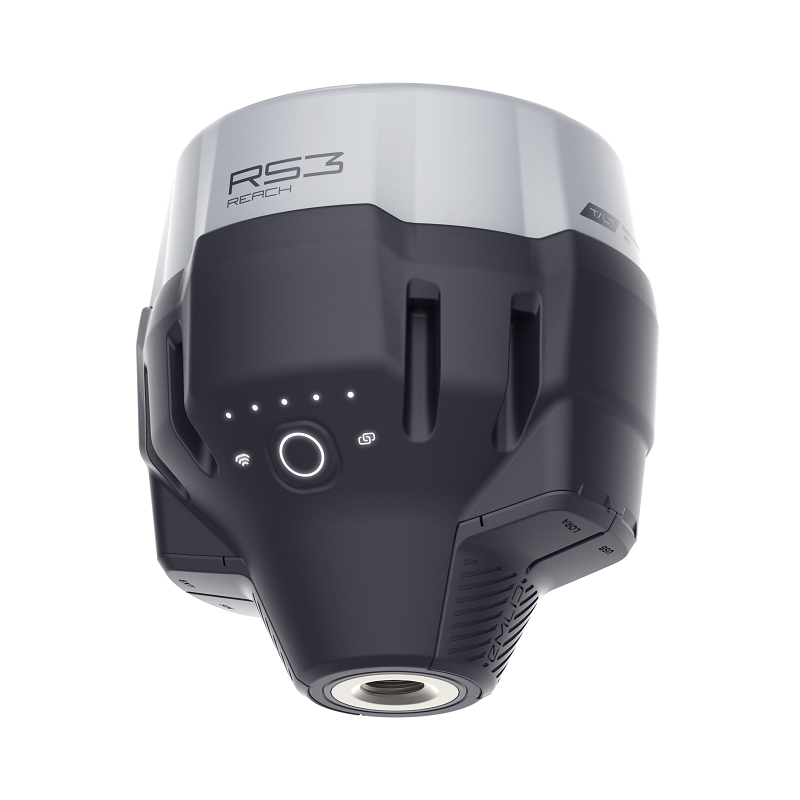

- 1x Reach RS3 (Rover, with IMU Tilt functionality)
- 2 x Carry case with a strap
- 2 x Radio antenna
- 2 x USB Type-C cable
*Both receivers can be used as a base or a rover
