Specifications
01 POSITIONING
- CONVERGENCE TIME: ~5S TYPICALLY
- IMU: 9DOF
- NUMBER OF CHANNELS: 184
- PRECISION: STATIC V: 8 MM + 1 PPM
- PRECISION: STATIC H: 4 MM + 0.5 PPM
- PRECISION: RTK H: 7 MM + 1 PPM
- PRECISION: PPK V: 10 MM + 1 PPM
- PRECISION: PPK H: 5 MM + 0.5 PPM
- SIGNAL TRACKED: GPS / QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BEIDOU B1I, B2I, GALILEO E1 - B /C, E5B
- UPDATE RATES: UP TO 10 HZ
02 CONNECTIVITY
- BLUETOOTH: 4.0 / 2.1 EDR
- DATA LOGGING : RINEX AT UPDATE RATE UP TO 10 HZ
- DATA PROTOCOLS: POSITION OUTPUT: NMEA, LLH / XYZ
- DATA PROTOCOLS: CORRECTIONS: NTRIP, RTCM3
- INTERNAL STORAGE: 16 GB
- LTE MODEM : SIM CARD: NANO - SIM
- LTE MODEM : QUAD-BAND, 850 / 1900, 900 / 1800 MHZ
- LTE MODEM : BANDS: TD - LTE: 38, 40, 41
- LTE MODEM : UMTS (WCDMA / FDD): 1, 3, 2, 4, 5, 6, 8, 19
- LTE MODEM: BANDS: FDD - LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18,19, 20, 26, 28, 66
- LTE MODEM : REGIONS: GLOBAL
- PORTS: RS - 232, USB TYPE - C
- UHF LORA RADIO : FREQUENCY RANGE: 868 / 915 MHZ
- UHF LORA RADIO : POWER: 0.1 W
- UHF LORA RADIO : DISTANCE: UP TO 8 KM
- WI-FI : 802.11 B / G/ N
03 MECHANICAL
- DIMENSIONS : 126 MM X 126 MM X 142 MM
- INGRESS PROTECTION: IP67 WATER AND DUSTPROOF
- TEMPERATURE: -20° C TO + 65° C
- WEIGHT: 950 G
04 ELECTRICAL
- AUTONOMY: 16 HRS AS LTE RTK ROVER
- BATTERY : LIFEPO4 6400 MAH, 6.4 V
- CHARGING : USB - C 5 V 2 A
- EXTERNAL POWER INPUT: 6 - 40 V
Description

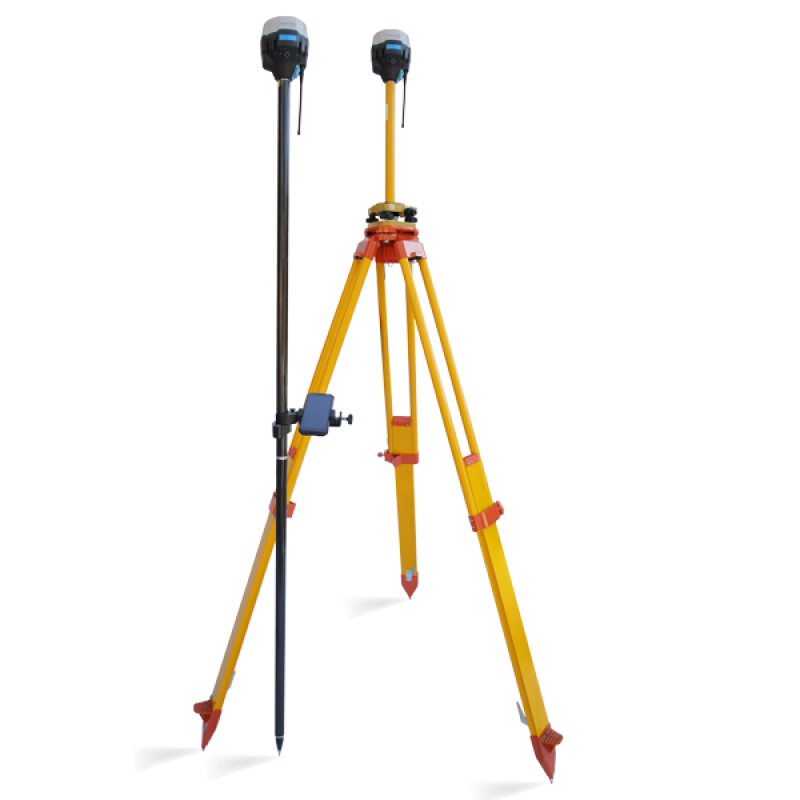

TWO REACH RS2+ RECEIVERS
FOR SURVEYING IN RTK AND PPK MODES WITH ALL NEEDED ACCESSORIES AND TRAINING
CENTIMETER ACCURACY FOR
SURVEYING, MAPPING AND DATA COLLECTION.
COMPLETE SURVEYING KIT
INCLUDES:

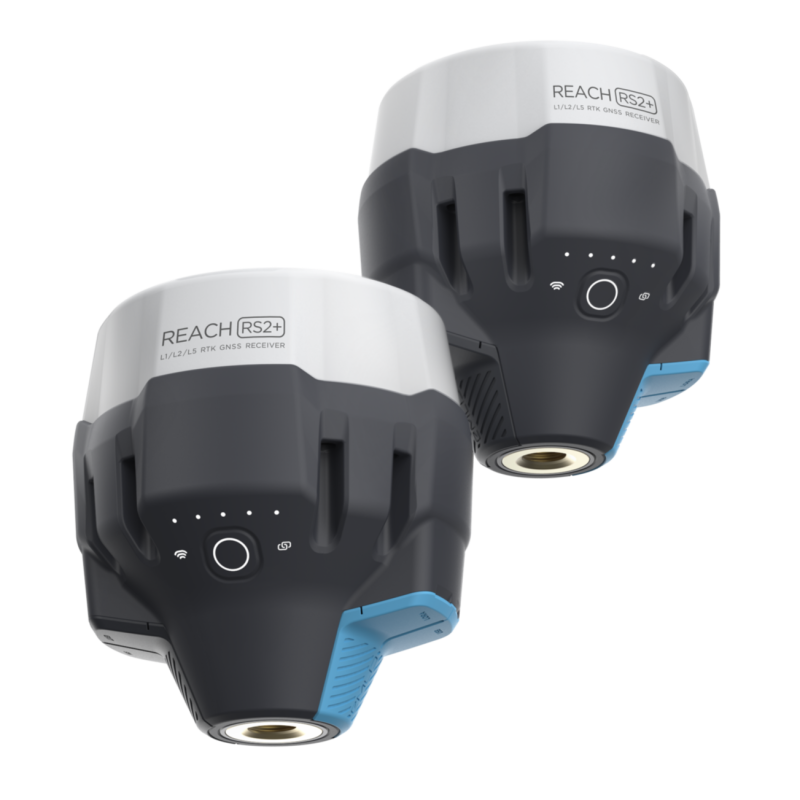

- 2 X RS2+ RECEIVERS
(BASE & ROVER) (1.9 KG)
- 1 X RUGGED ANDROID
CONTROLLER (0.46 KG)
- 1 EFIELD COMPLETE
SURVEYING SOFTWARE
- EMLID STUDIO POST
PROCESSING SOFTWARE.
- 1 X CONFIGURATION OF
EQUIPMENT
- CARRY CASE WITH STRAP (0.69KG)
- RADIO ANTENNA
- USB TYPE-C CABLE

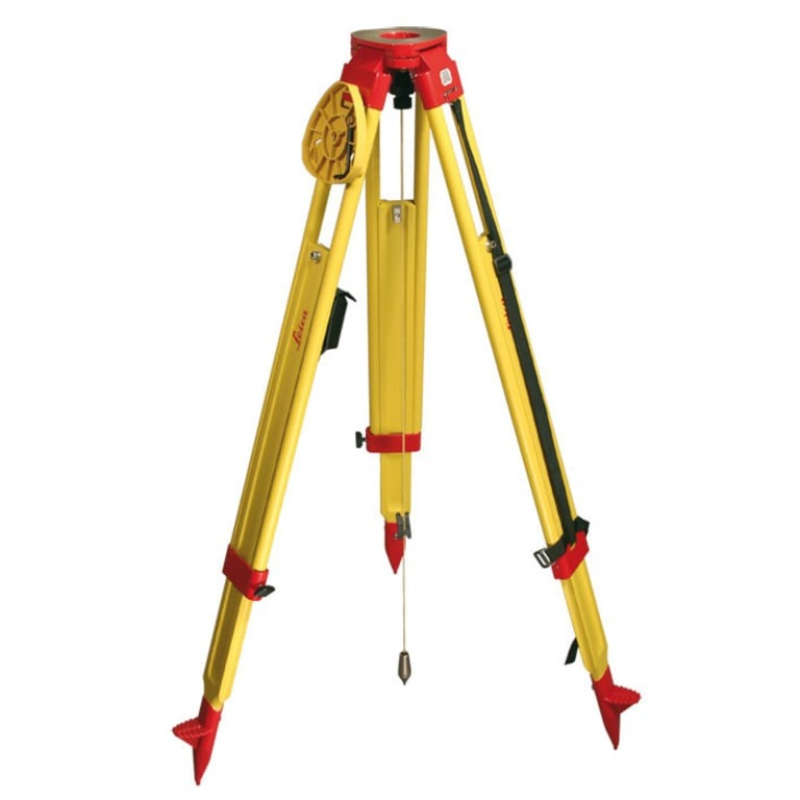

- 1 X TRIPOD (8.96 KG)

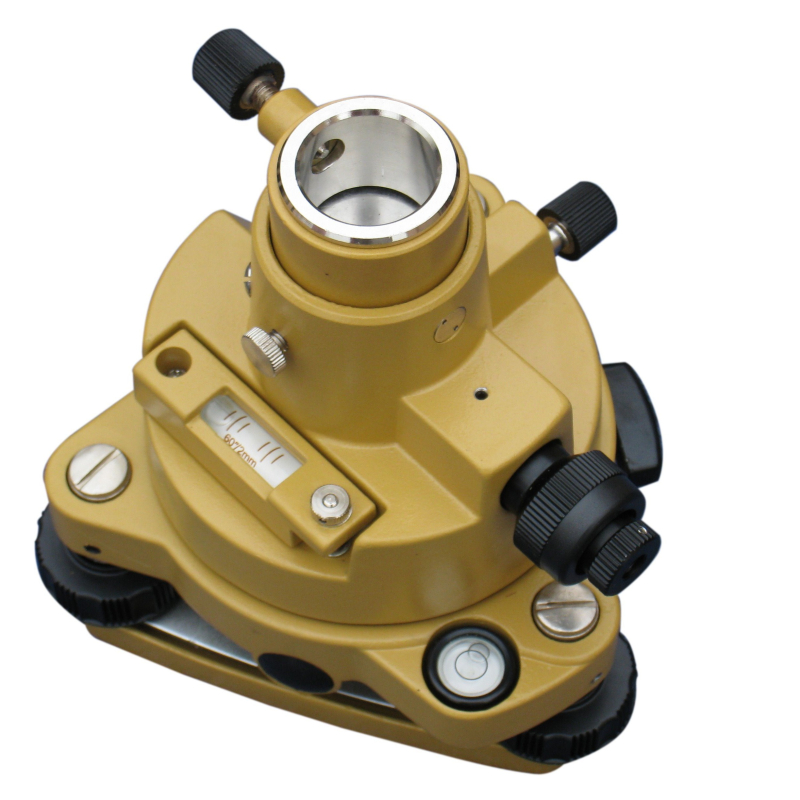

- 1 X TRIBRACH (1.4 KG)

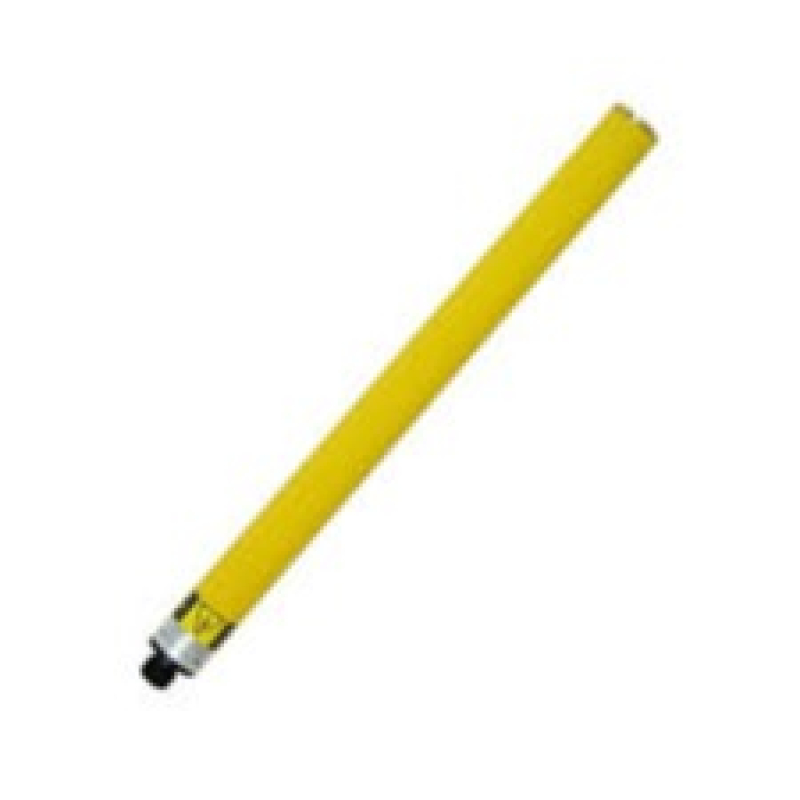

- 1 X EXTENSION POLE (0.03 KG)

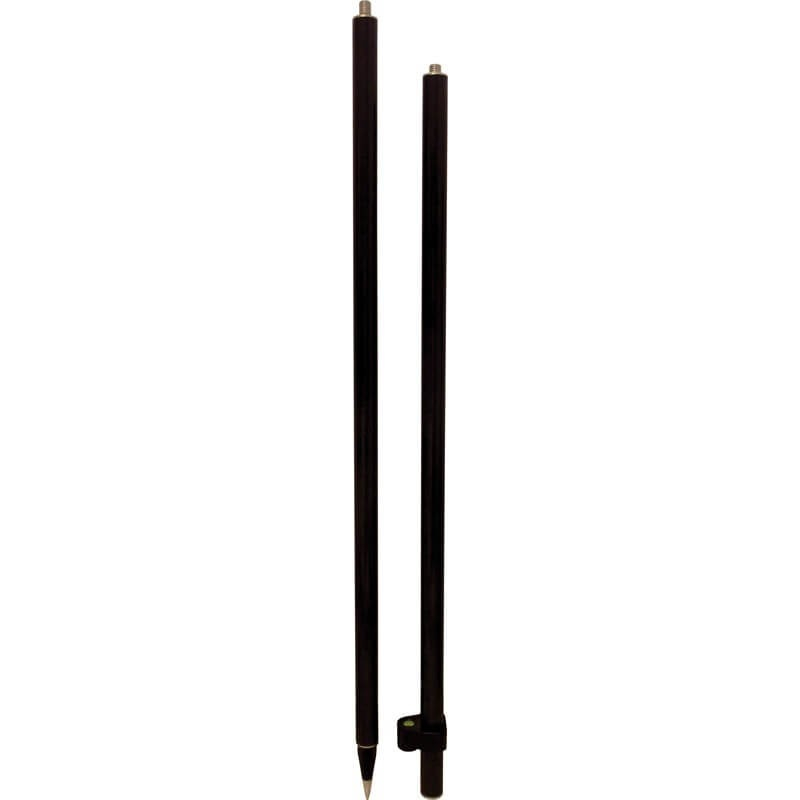

- 1 X GPS POLE 2M CARBON
FIBRE ( 0.7 KG)

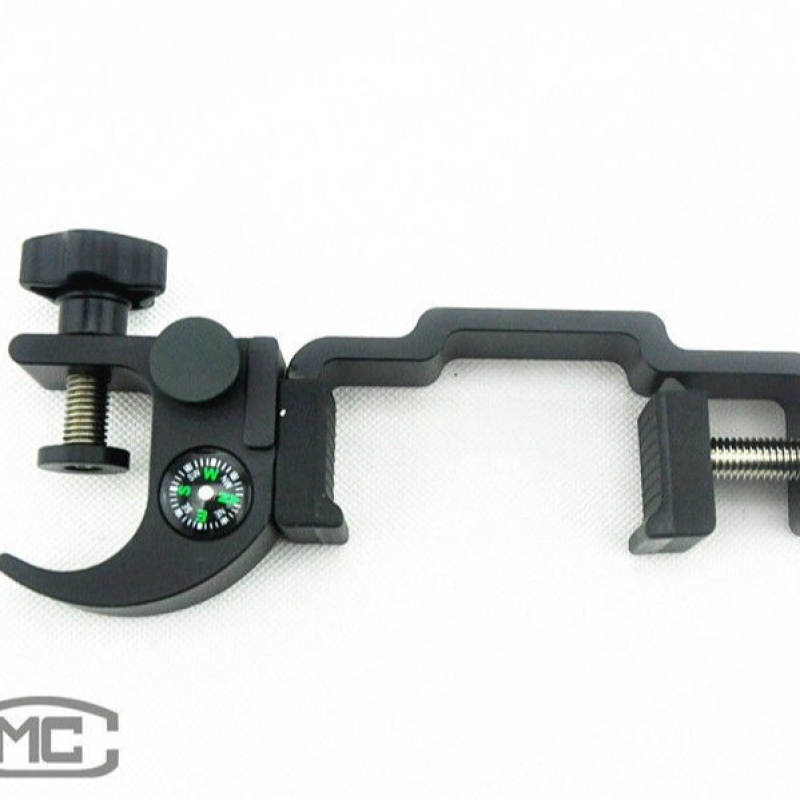

- 1 X CONTROLLER BRACKET (0.4 KG)

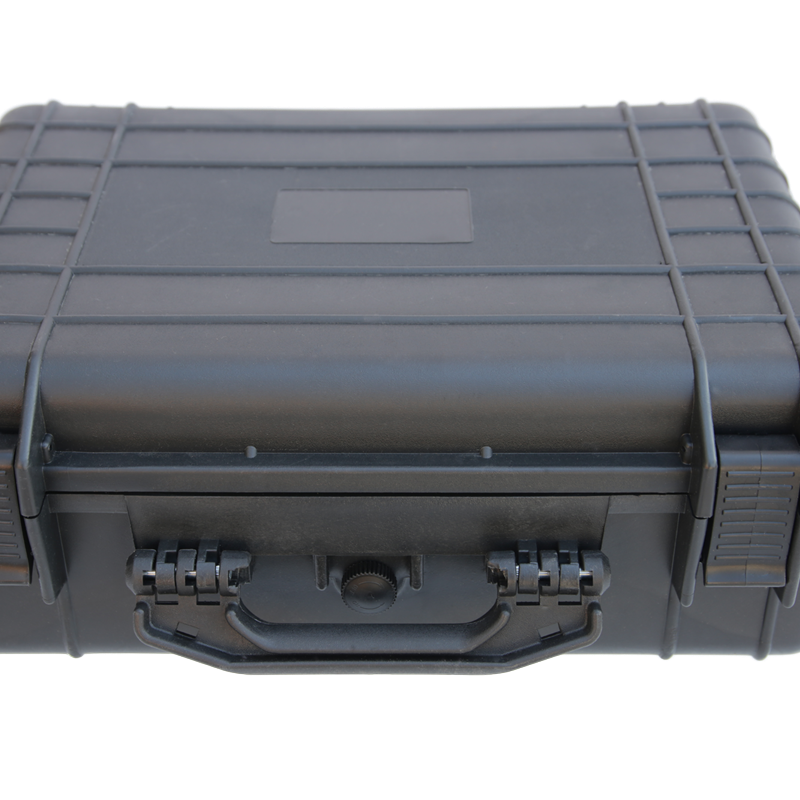

- 1X SOM HARD CASE (9.47 KG)
- 1X YEAR OF DEDICATED SUPPORT
- SOM SURVEY COMPLETE GPS
ONLINE VIDEO TRAINING.
REACH RS2+ PRODUCT DETAILS AND SPECS
WE WILL GIVE YOU ALL THE
KNOW-HOW TO DO:
INSTRUMENT SET-UP WITH
COMPLETE WORKFLOW
SITE CALIBRATION
STAKE OUT OF
POINTS/LINES/ARC
IMPORTING AND EXPORTING
OF POINTS
REPORTING OF FIELDWORK
DIFFERENT TYPE OF POINT
MEASUREMENTS
CONTROL POINTS
RAPID POINTS
CONTINUOUS POINTS
TOPO POINTS
ROADING FUNCTIONS
ALIGNMENT
OFFSETS
PROFILES
CHAINAGES, CENTRE LINES
CROSS SECTIONS AND SLOPES
- 1 X FULL YEAR OF
DEDICATED SUPPORT.
