EMLID
SOM Reach RS3/RS2+ Combo Complete Surveying Kit
R156,699
Inclusive all taxes
-
R156,699Sold by SOM Survey Instruments
Specifications
01 MECHANICAL
- DIMENSIONS:: 126 MM X 126 MM X 142 MM
- INGRESS PROTECTION: IP 67
- OPERATING TEMPERATURE: -20° TO + 65° C
- WEIGHT:: 950 G
02 ELECTRICAL
- AUTONOMY: 22 HRS OF LOGGING
- AUTONOMY: : 18 HRS AS AN RTK ROVER WITH TILT
- BATTERY : LI-ION 5200 MAH, 7.2 V 37.44 WH
- CHARGING : USB TYPE - C 5 V, 3 A
03 POSITIONING
- CONVERGENCE TIME: ~ 5S TYPICALLY
- PPK : H: 5 MM + 0.5 PPM
- PPK : V: 10 MM + 1 PPM
- RTK : H: 7 MM + 1 PPM
- RTK : V: 14 MM + 1 PPM
- STATIC : V: 8 MM + 1 PPM
- STATIC : H: 4 MM + 0.5 PPM
- TILT: RTK + 2 MM + 0.3 MM/°
04 CONNECTIVITY
- BLUETOOTH: 4.0 / 2.1 EDR
- DISTANCE: UP TO 8 KM
- FREQUENCY RANGE: 410 - 470 MHZ
- FREQUENCY RANGE: 868 / 915 MHZ
- LTE MODEM : REGION BANDS: GLOBAL
- LTE MODEM : FDD - LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
- LTE MODEM : TD - LTE: 38, 40, 41
- LTE MODEM : UMTS (WCDMA / FDD): 1, 3, 2, 4, 5, 6, 8, 19
- LTE MODEM : QUAD - BAND, 850 / 1900
- LTE MODEM : 900 / 1800 MHZ
- LTE MODEM : SIM CARD: NANO-SIM
- MODULATION TYPE: GMSK
- PORTS: RS - 232, USB TYPE - C
- POWER : 0.1 W
- PROTOCOLS: TRIMTALK 450S**
- RADIO: LORA: TRANSMIT AND RECEIVE
- UHF*: RECEIVE - ONLY
- WI-FI : 802.11 B / G / N
05 DATA
- DATA: CORRECTIONS: NTRIP, RTCM3
- DATA LOGGING : RINEX, NMEA, LLH / XYZ, UBX
- INTERNAL STORAGE: 16 GB
- POSITION OUTPUT: NMEA, LLH / XYZ
06 GNSS
- IMU : 6DOF
- NUMBER OF CHANNELS: 184
- SIGNAL TRACKED : GPS / QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BEIDOU B1I, B2I, GALILEO E1B/C, E5B
- UPDATE RATES: UP TO 10 HZ
Description

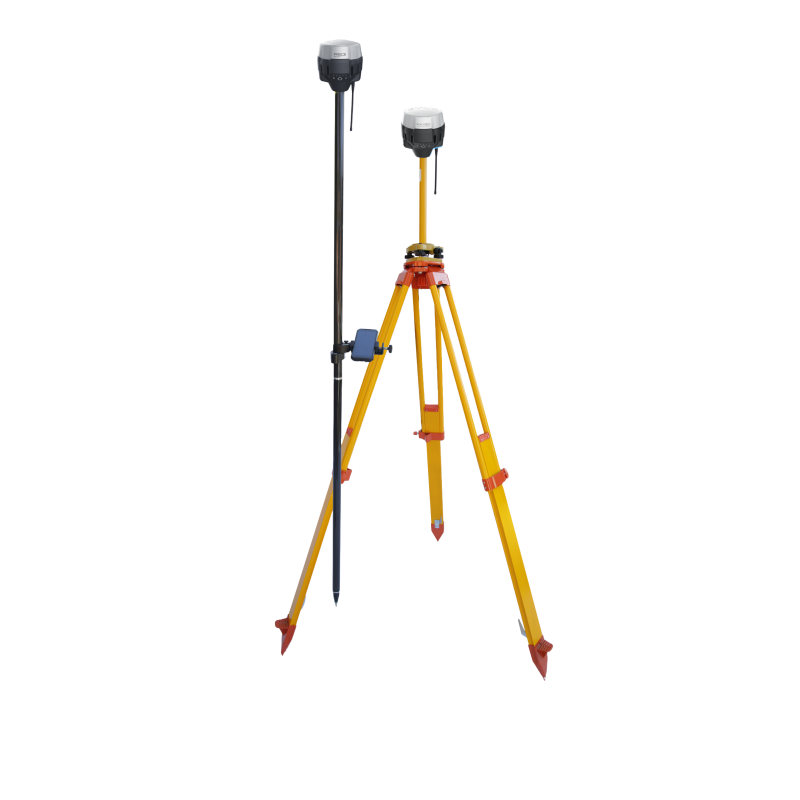

Two Emlid Reach receivers for surveying in RTK and PPK modes with all needed accessories and training
Centimeter accuracy for surveying, mapping and data collection.
Complete Surveying Kit Includes:

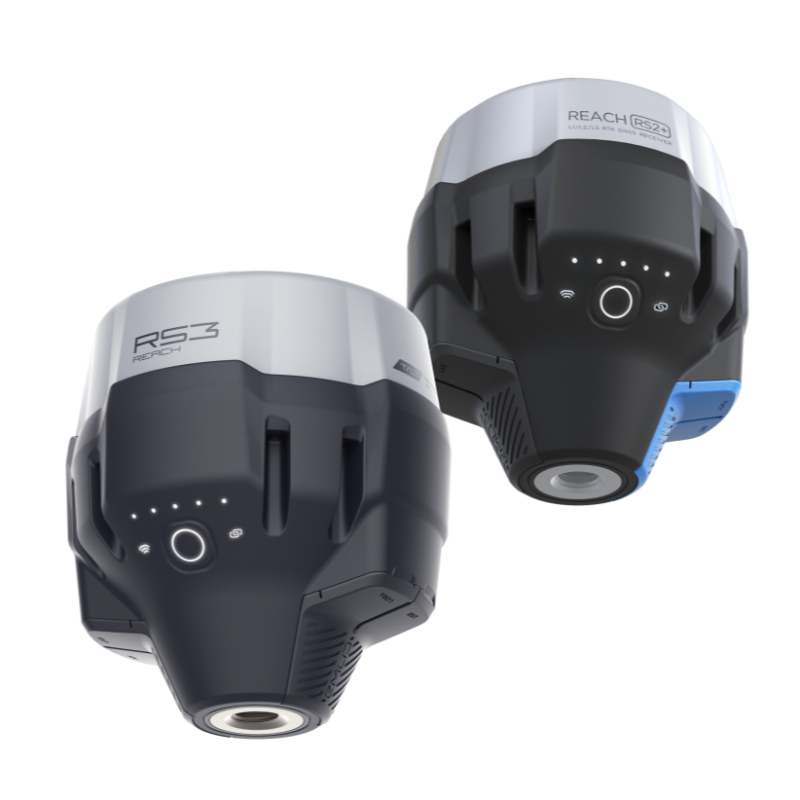

- 1 x Reach RS2+receiver (Base)
- 1 x Reach RS3 receiver (Rover with IMU Tilt Compensation)
- RS2+ and RS3 includes: Carry case with strap, Radio antenna, USB type-C cable
- 1 x Reach RS3 receiver (Rover with IMU Tilt Compensation)
- RS2+ and RS3 includes: Carry case with strap, Radio antenna, USB type-C cable

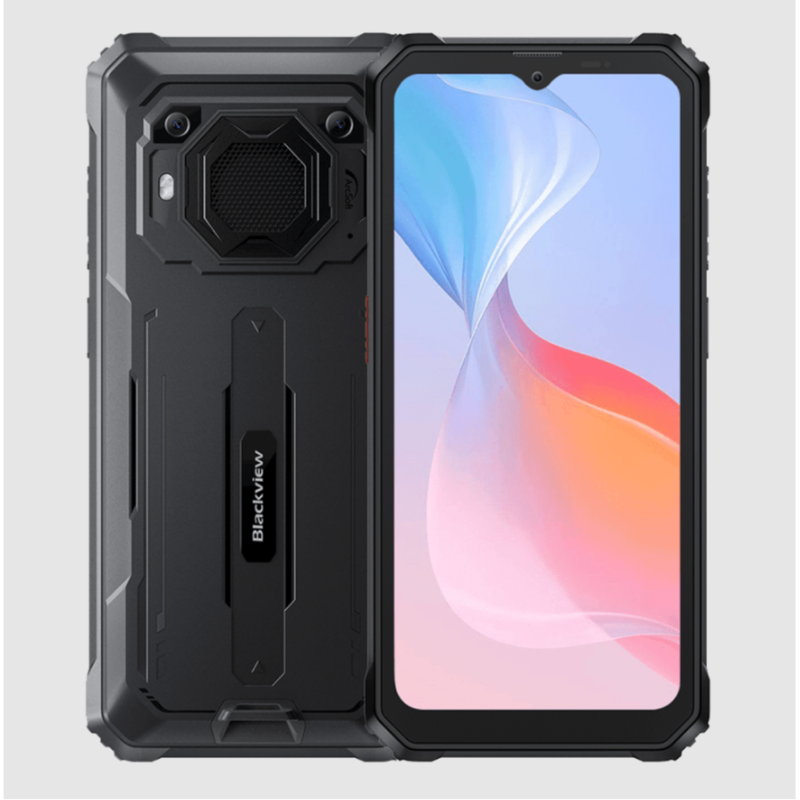

- 1 x Rugged Android Controller
- 1 eField Complete Surveying Software
- Emlid studio post processing software.
- 1 x Configuration of equipment

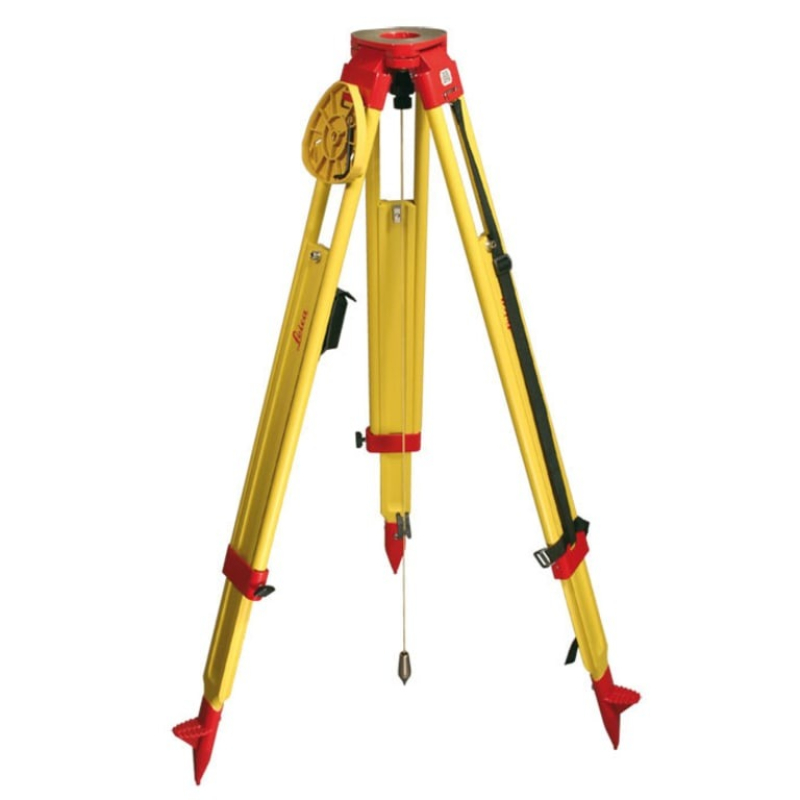

- 1 x Tripod

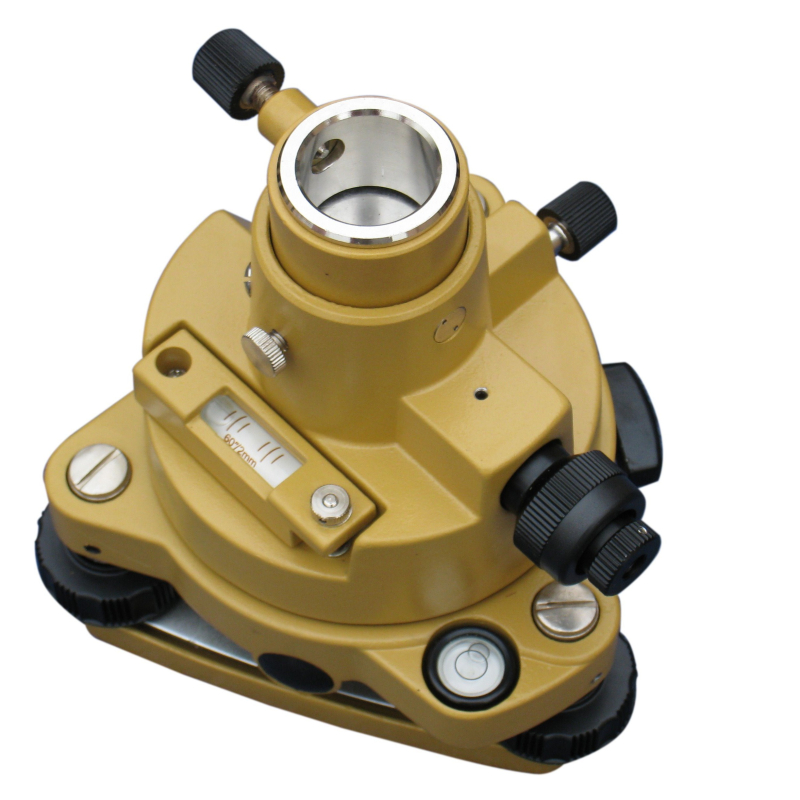

- 1 x Tribrach

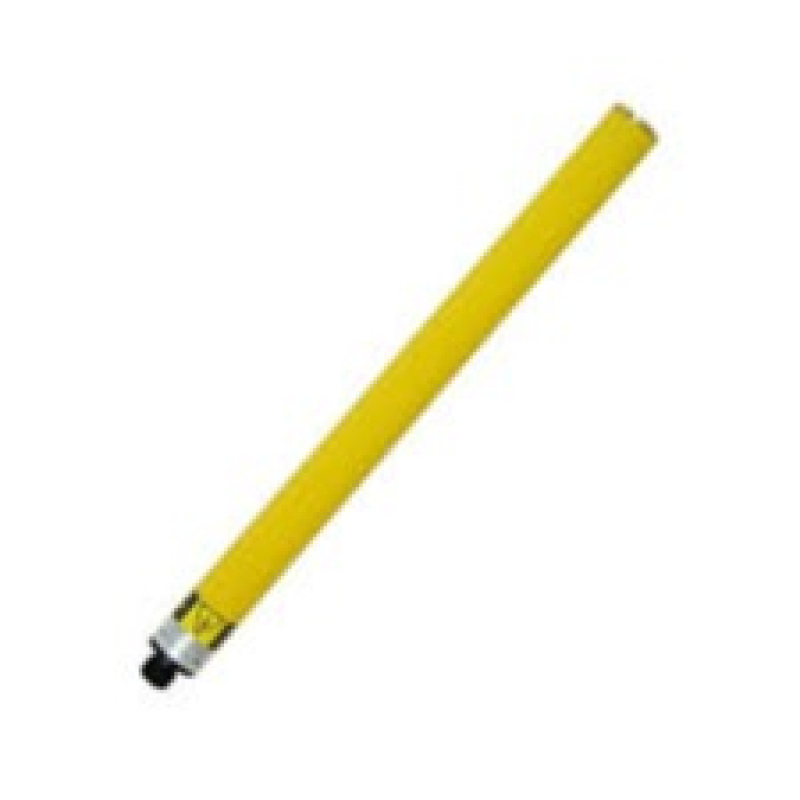

- 1 x extension pole

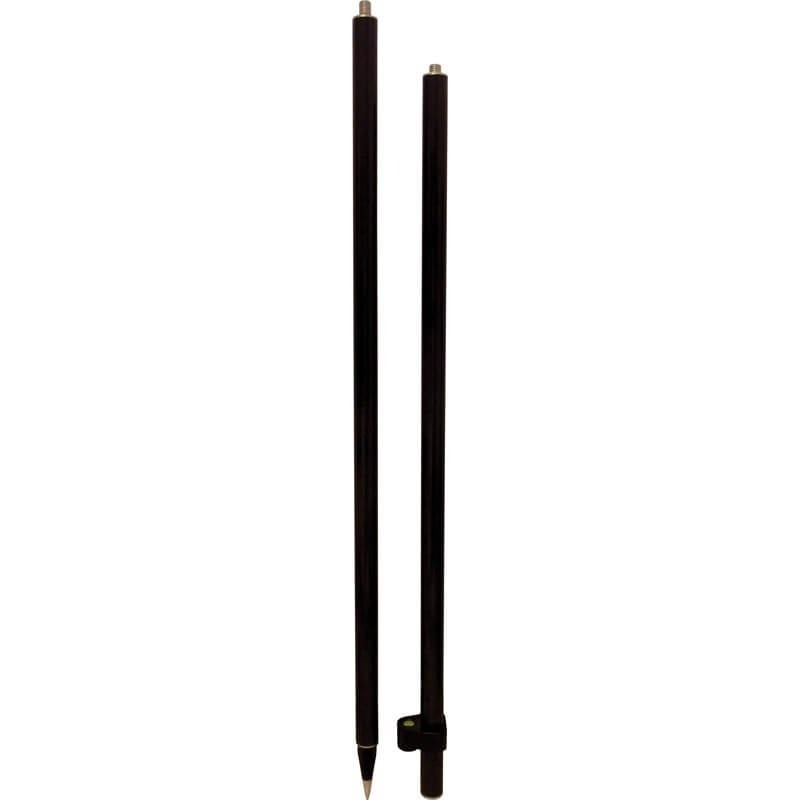

- 1 x GPS pole 2m carbon Fibre

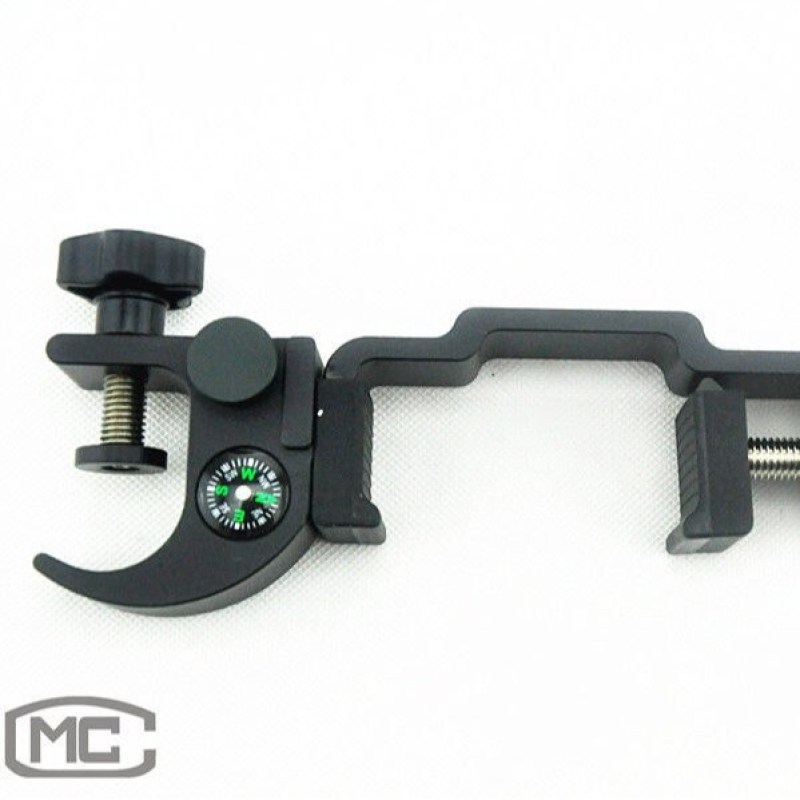

- 1 x Controller Bracket
- SOM Survey Complete GPS Online Video Training.
- 1 x Full Year of Dedicated Support.
- 1x SOM Hard Case
- 1 x Full Year of Dedicated Support.
- 1x SOM Hard Case
Reach RS3 Features:
• IMU Tilt Compensation: The Reach RS3 features cutting-edge IMU Tilt Compensation, providing survey-grade data acquisition in hard-to-reach locations such as building corners, tree bases, etc.. The RS3 offers industry-leading accuracy of RTK + 2 mm + 0.3 mm/°, all within a factory-calibrated IMU for seamless out-of-the-box functionality.
• Expanded Connectivity – UHF Radio Support: Reach RS3 continues to work seamlessly with LoRa and now incorporates the powerful TrimTalk™ at 450 MHz. This innovation offers expanded capabilities, including 868/915 MHz LoRa receive and transmit corrections, as well as 450 MHz TrimTalk™ 450S receive-only functionality. This advancement allows RS3 users to receive corrections from third-party bases and external radios, making integration with other GNSS brands and existing on-site infrastructure smoother than ever, maximizing the baseline.
Training: We will give you all the know how to do:
- Instrument set-up with complete work flow
- Site calibration
- Stake out of points/lines/arc
- Importing and exporting of points
- Reporting of field work
- Different type of point measurements
- Control Points
- Rapid Points
- Continuous Points
- Topo Points
- Roading functions
- Alignment
- Offsets
- Profiles
- Chainages, Centre lines
- Cross sections and slopes
