Specifications
01 ANGLE MEASUREMENT
- ACCURACY (TO THE POWER 1): 0.5'' - 1''
- ANGLE UNITS: DEG 360° /GON 400/MIL 6.400
- DISPLAY RESOLUTION: 0.1''
- READING SYSTEM: ABSOLUTE FOUR-QUADRANT
02 TELESCOPE
- LASER POINTER: RED LIGHT, COAXIAL
- MAGNIFICATION/FIELD OF VIEW: 30X / 1°30'
- MINIMUM FOCUS DISTANCE: 1.5 M
- OBJECTUVE APERATURE: 45 MM
- TUBE LENGTH: 164.5 MM
03 TILT SENSOR
- COMPENSATION RANGE/ACCURACY: ± 3.0'/1''
- TYPE : DUAL-AXIS LIQUID-ELECTRIC SENSOR
04 DISTANCE MEASUREMENT RANGE (TO THE POWER 5)
- REFLECTORLESS (TO THE POWER 5): 1000M (TO THE POWER 4)
- STANDARD PRISM MODE: 6000 M³
05 DISTANT MEASUREMENT ACCURACY (TO THE POWER 6)
- REFLECTORLESS : 2 MM + 2 PPM
- STANDARD PRISM MODE : 1 MM + 1 PPM
06 MEASUREMENT TIME
- REFLECTORLESS: TYPICALLY 0.8 SEC (>500M, >5 SEC)
- STANDARD PRISM MODE (TRACKING/ SINGLE) : <0.3 / 0.7 SEC
07 DISTANCE MEASUREMENT
- DISPLAY RESOLUTION: 0.0001 M/0.0001M 0.001 FT/0.01 FT
- DISTANCE UNIT: M/US FT/INT FT
08 MOTORIZATION
- AIM ACCURACY: ± 1 MM @ 100 M²
- APC-MEASUREMENT TIME: 10 SEC
- APC-TARGET AIMING RANGE: 1.5 - 1000 M
- FAST360°-ANGLE: H: 360° - V: 20°
- FAST360°-TARGET AIMING RANGE: 1.5 - 600 M
- MAX ROTATION SPEED: 180°/SEC
- TECHNOLOGY: TDRIVE
09 LASER PLUMMET
- ACCURACY: 1MM/1.5 M
- LASER TYPE: 635NM SEMICINDUCTOR LASER
- SPOT: ±1.8MM/1.5 M
10 LEVEL VIAL SENSITIVITY
- CICULAR LEVEL: 8'/2MM
11 ENVIRONMENTAL CONDITIONS
- HUMIDITY: 95% NON-CONDENSING
- OPERATING TEMPERATURE: -20° c +50° c(-4°F TO 122°F)
- STORAGE TEMPERATURE: -20° C +60° C (-4°F TO 140°F)
- WATERPROOF/DUSTPROOF: IP65
12 PHYSICAL SPECIFICATION
- DIMENSIONS: 430 X 255 X 235 MM
- WEIGHT INCLUDING BATTERY AND TRIBRACH: 9.3 KG
13 POWER
- BATTERIES NUMBER: 2
- BATTERY CHARGER: 100/240 V, CHARGING TIME 4H
- BATTERY VOLTAGE/CAPACITY/TYPE: 14.4V /6400MAH/LI-ION
- OPERATING TIME: 6 HOURS (ONE INTERNAL BATTERY) TO THE POWER 7
14 OTHER SPECIFICATIONS
- CAMERA: √
- CPU: MSM8953
- DATA TRANSFER: 4G (BUILD-IN), BLUETOOTH, WLAN, HOTSPOT
- DISPLAY: TWO SIDES, 6'' COLOR LCD 720 X 1280 PIXEL PER TOUCH SCREEN
- GUIDE LIGHT: √
- INTERFACE: RS-232/MICRO USB/BLUETOOTH LONG RANGE
- MEMORY: RAM: 3GB, ROM: 32GB
- OS: ANDROID
- SENSOR: TEMPERATURE/PRESSURE
Description

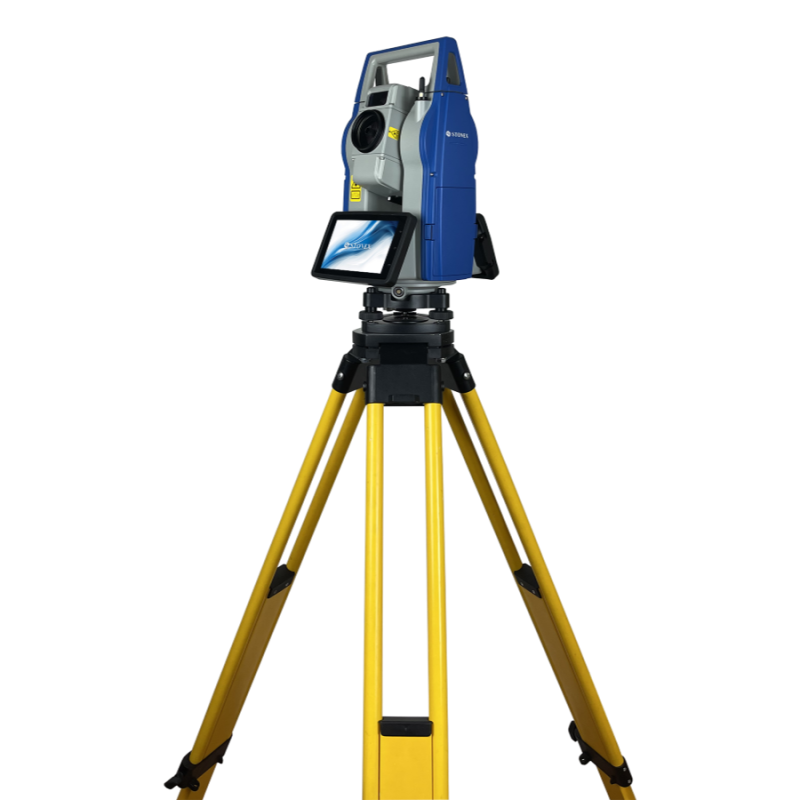

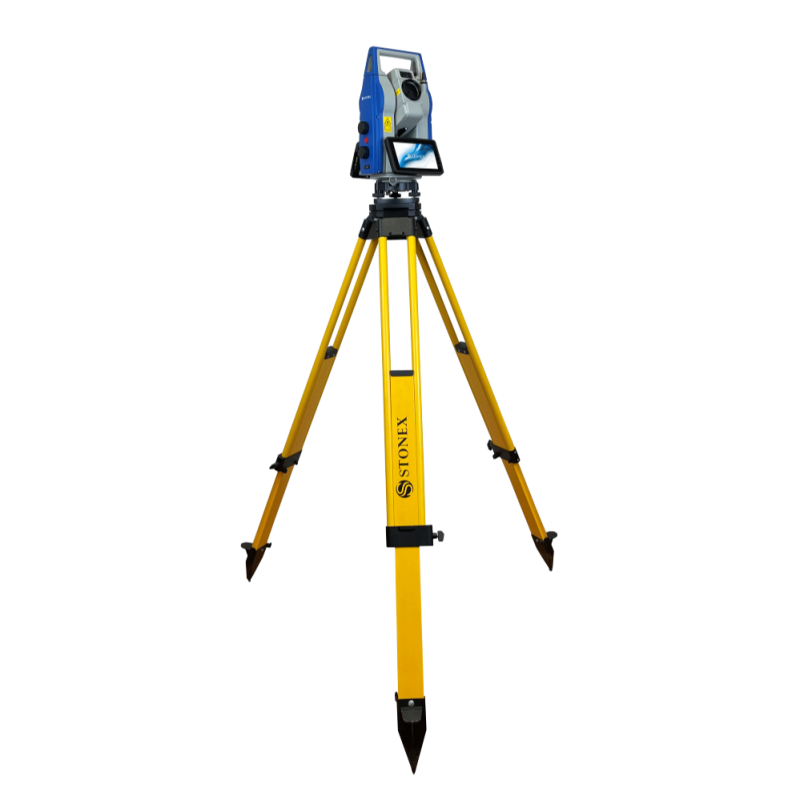

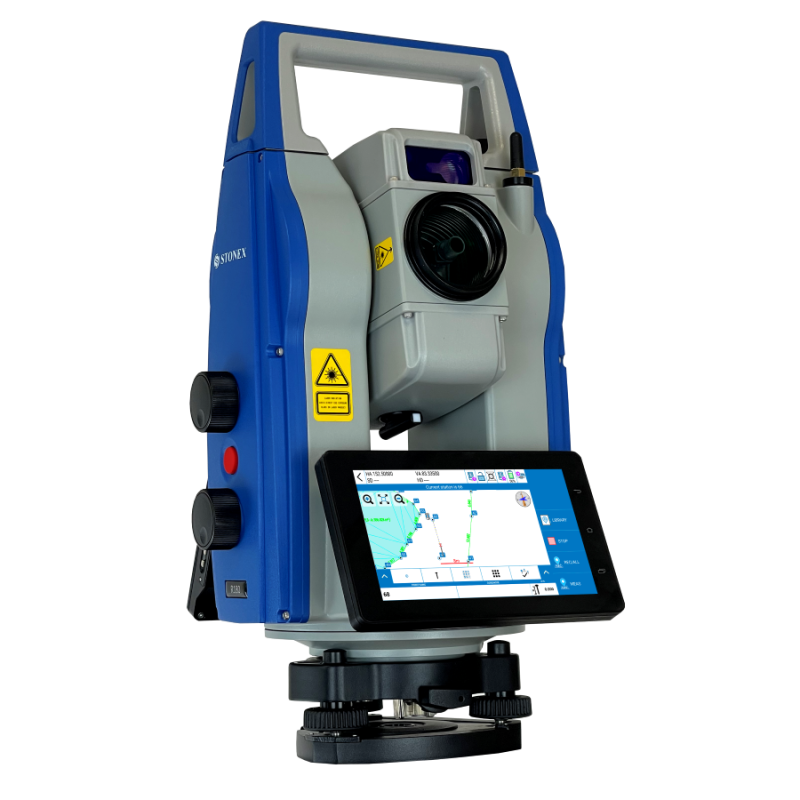

The R180 Robotic Total Station redefine efficiency and precision for professionals. The quietness and smoothness in prism searches and rotation are among the most observed and appreciated features. the rotation speed boasts at 180 degrees/sec and an EDM accuracy of 1 mm + 1ppm, with a range of up to 1000m without a prism. The R180 come in two versions a 0.5'' and 1'' respectively.

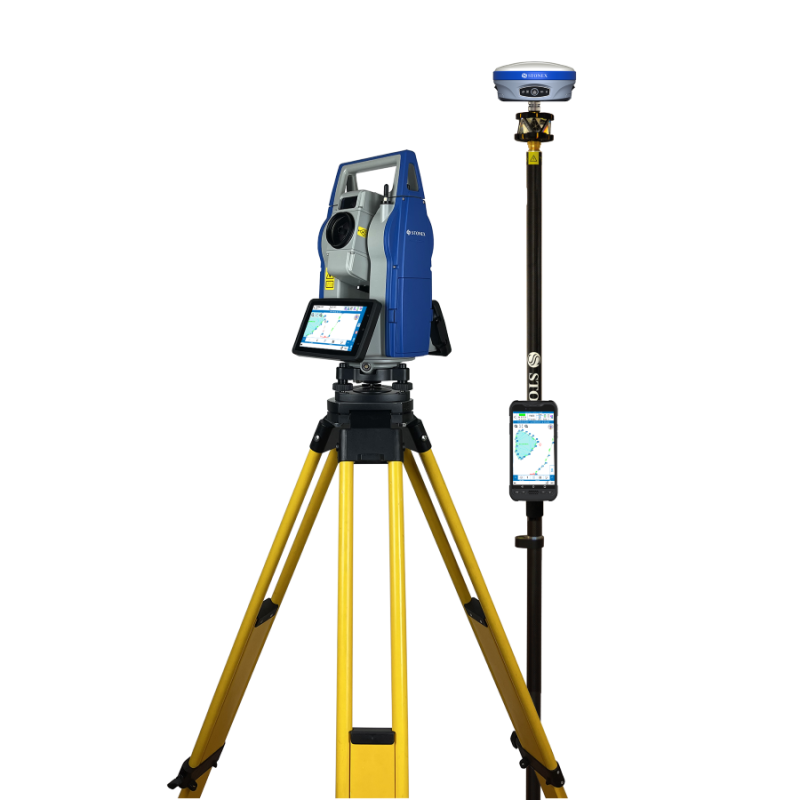

This Android device is equipped with Cube-a onboard software operating system, and this enables users to navigate online and interact with the touch screen in an easy and familiar way. The Cube-a onboard software includes all classic functions of the program and as well as the integration of jobs done with a GNSS and surveys done with a total station, this allows operators to achieve complex and professional work in a short time and with high accuracy. additionally, the R180's camera and light guide further facilitate fieldwork.
Items included with purchase:
-Tools bag
-Target sheet
-Battery Li-64
-Adapter + Cable EU and US
-Strap of carrying case
-Carrying case
-Silica gel
-Rain cover
-Targets
-Pen drive set 8Gb with Manual & Video Tutorial
