Stonex

Stonex R80

R413,999

Inclusive all taxes

Quantity
Product Terms
  • 2 Years warranty
  • 3 Days Return Back Policy
  • 3 Days Cancellation Policy
  • Ship Only

Specifications

01 ANGLE MEASUREMENT
  • ACCURACY : 0.5
  • ANGLE UNITS: DEG360°/GON400/MIL 6.400
  • DISPLAY RESOLUTION (SELECTABLE): 0.1
  • READING SYSTEM: ABSOLUTE, CONTINUOUS FOUR-QUADRANT
02 TELESCOPE
  • LASER POINTER: RED LIGHT, COAXIAL
  • MAGNIFICATION/ FIELD OF VIEW: 30X/1°20'
  • MINIMUM FOCUS DISTANCE: 1.5 M
  • OBJECTIVE APERTURE: 45 MM
  • RETICLE: 100 BRIGHTNESS LEVEL ADJUSTABLE
  • TUBE LENGTH: 156 MM
03 TILT SENSOR
  • COMPENSATION RANGE/ACCURACY: ±3.0'/1
  • TYPE: ELECTRONIC, QUADRUPLE-AXIS
04 DISTANCE MEASUREMENT RANGE
  • LONG MODE PRISM: 5.000M (TO THE POWER 4)
  • REFLECTIVE SHEET (6CM X 6CM): 800M (TO THE POWER 4)
  • REFLECTORLESS (TO THE POWER 5): UP TO 1.000M (TO THE POWER 4)
  • STANDARD MODE PRISM: 2.500M ³
05 DISTANCE MEASUREMENT ACCURACY
  • DISTANCE MEASUREMENT ACCURACY: STANDARD MODE PRISM 1 MM + 1 PPM
  • LONG MODE PRISM: 4 MM + 2 PPM
  • LONG MODE PRISM: 4 MM + 2 PPM
  • REFLECTORLESS: 3 MM + 2 PPM
06 MEASUREMENT TIME
  • REFLECTORLESS: 1.5­­÷3 SEC
  • STANDARD MODE/PRISM (TRACKING/FINE): 0.4/ 0.8 SEC
07 DISTANCE MEASUREMENT
  • DISPLAY RESOLUTION (SELECTABLE) : 0.0001M/0.001M 0.001FT/0.01FT
  • DISTANCE UNIT : M/US FT/INT FT
08 MOTORIZATION
  • AIM ACCURACY: ±1.5'', ±1.5 MM @ <100 M
  • AIM RANGE: 1000 M AT ROUND PRISM
  • LOCK RANGE: 600 M AT ROUND PRISM
  • MAX LOCK SPEED : 50 KM/H AT 100 M
  • MAX ROTATION SPEED: 35°/SEC
  • SEARCH RANGE: 800 M AT ROUND PRISM
  • TECHNOLOGY: GEAR MOTOR DRIVES
09 LASER PLUMMET
  • ACCURACY: 1MM/1.5 M
  • LASER TYPE: 635NM SEMICONDUCTOR LASER
  • SPOT : ± 1.5MM/1.5 M
10 LEVEL VIAL SENSITIVITY
  • CIRCULAR LEVEL: 8'/2MM
  • PLATE LEVEL: 30
11 ENVIRONMENTAL CONDITIONS
  • HUMIDITY: 95% NON-CONDENSING
  • OPERATING TEMPERATURE: -20° C +50° C
  • STORAGE TEMPERATURE: -40° C +70° C
  • WATERPROOF/DUSTPROOF: IP55
12 PHYSICAL SPECIFICATION
  • DIMENSIONS: 220 X 225 X 380 MM
  • WEIGHT INCLUDED BATTERY AND TRIBACH: 7.9 KG
13 POWER
  • BATTERY CHARGER: 110/220, CHARGING TIME 4H
  • BATTERY VOLTAGE/CAPACITY: 7.4V/5.800MAH LI-ION
  • OPERATING TIME: 5-8 HOURS
14 OTHER SPECIFICATIONS
  • CPU: ARM CORTEX A8
  • DISPLAY/KEYBOARD: TWO SIDES, 3.5'' COLOR TFTLCD 320X240 PIXEL TOUCH SCREEN
  • GUIDE LIGHT: 100 M
  • INTERFACE: RS-232C/STANDARD USB/MINI USB/BLUETOOTH LONG RANGE
  • MEMORY: 4GB INTERNAL
  • OS: WINDOWS CE 7.0
  • SENSOR: TEMPERATURE/PRESSURE

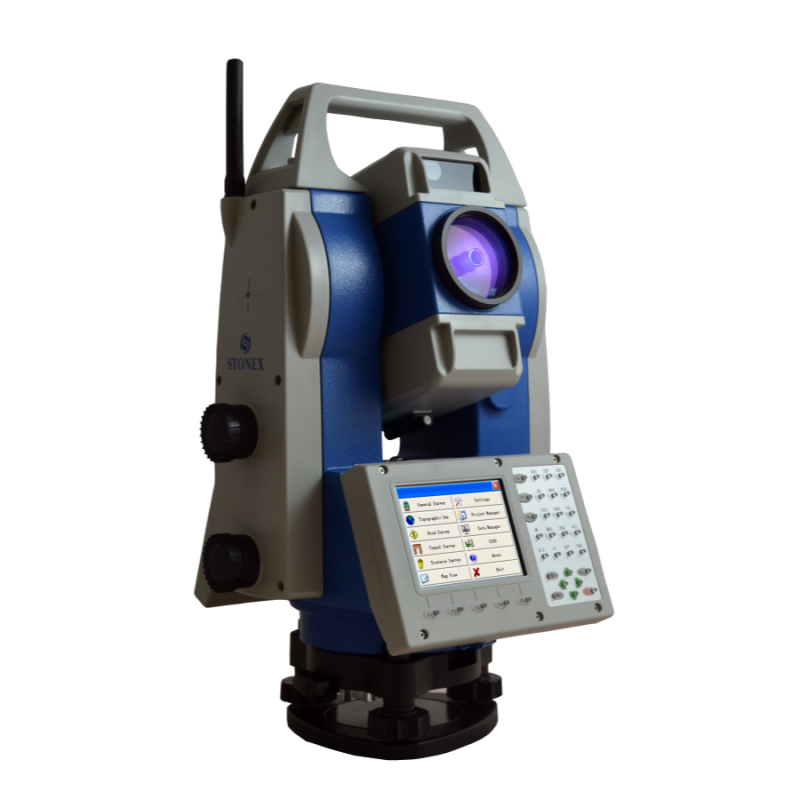

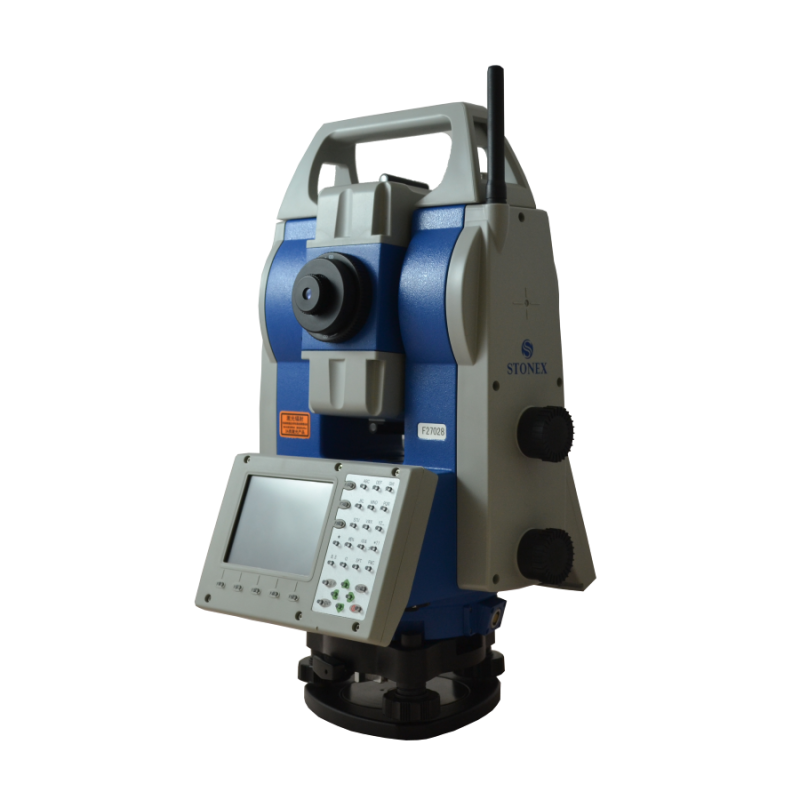

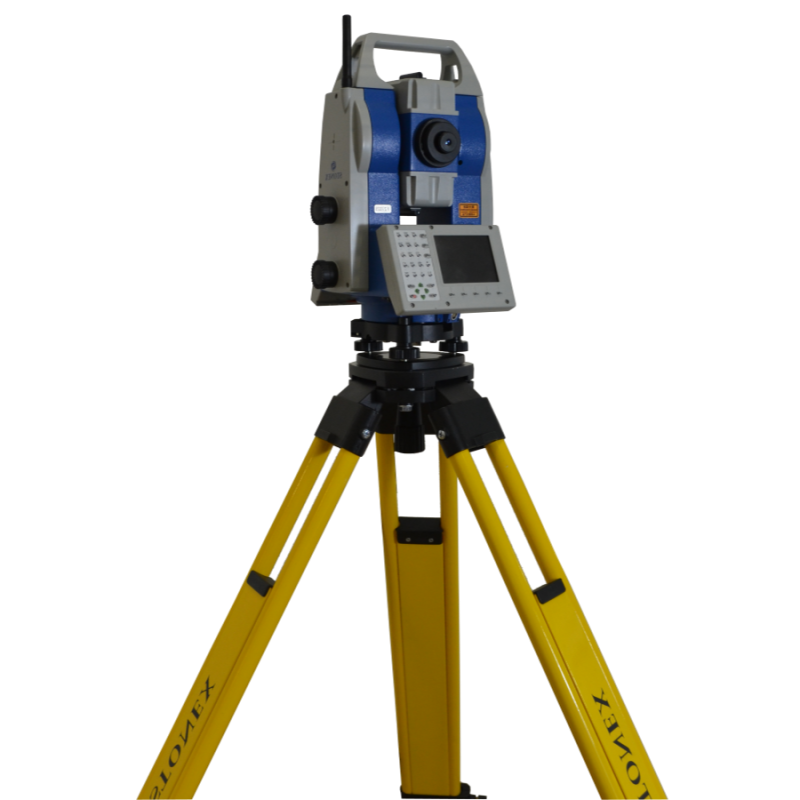

The R80 Motorized Total Station by Stonex is designed for high-precision surveying work, making it suitable for classic survey and stakeout tasks as well as high-precision surveying in areas such as rail traffic monitoring, control of structures, bridges, dams, and landslide areas.


The R80 features automatic prism recognition and positioning technology with a high accuracy of 0.5″-1″. It also offers a distance measurement accuracy of 1 mm + 1 ppm (Prism) and is capable of long-range reflector less distance measurement up to 1000 meters.


This motorized Total Station runs on the Windows CE 7.0 operating system, allowing each user to choose the software that best suits their needs. Additionally, it supports SDK and external control protocol for software development.


Items Included with Purchase:

-Tribrach for TS RXX series
-USB cable for Stonex TS RXX (UC-TS1)
-BT91L, R80 Rechargeable Li-ion battery;
-R80 battery charger for BR91L;
-R80 Carrying Case;
-Long Range Bluetooth
-Stylus
-Rain Cover
-Tools kit
-Cleaning Cloth
-Reflective sheet RP30 x 4
-Reflective sheet RP60 x 1
-SW Cube-link
-Pen Drive set 8Gb with Manual & Video Tutorial
