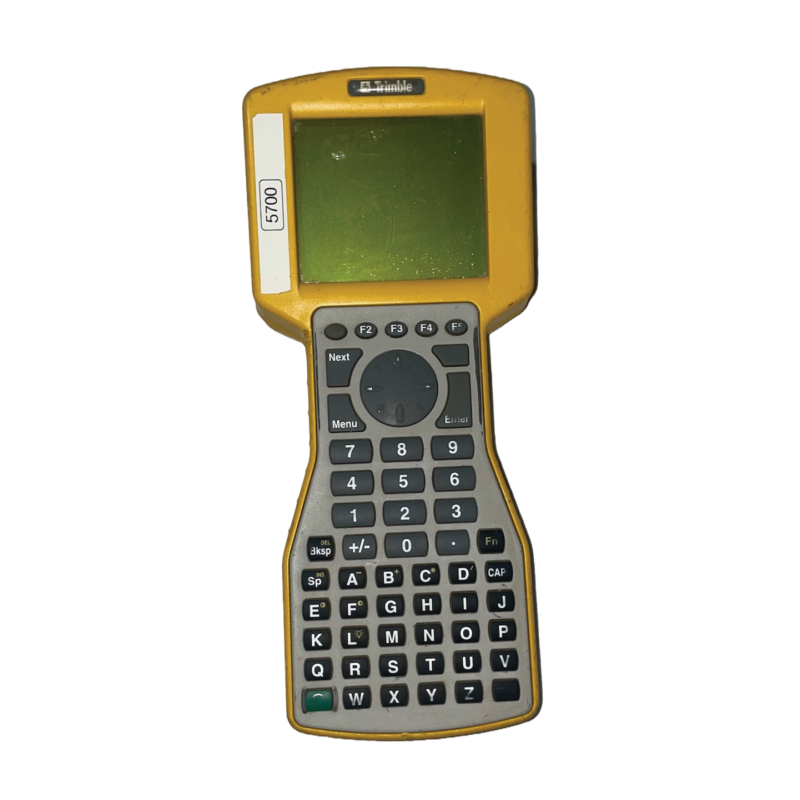

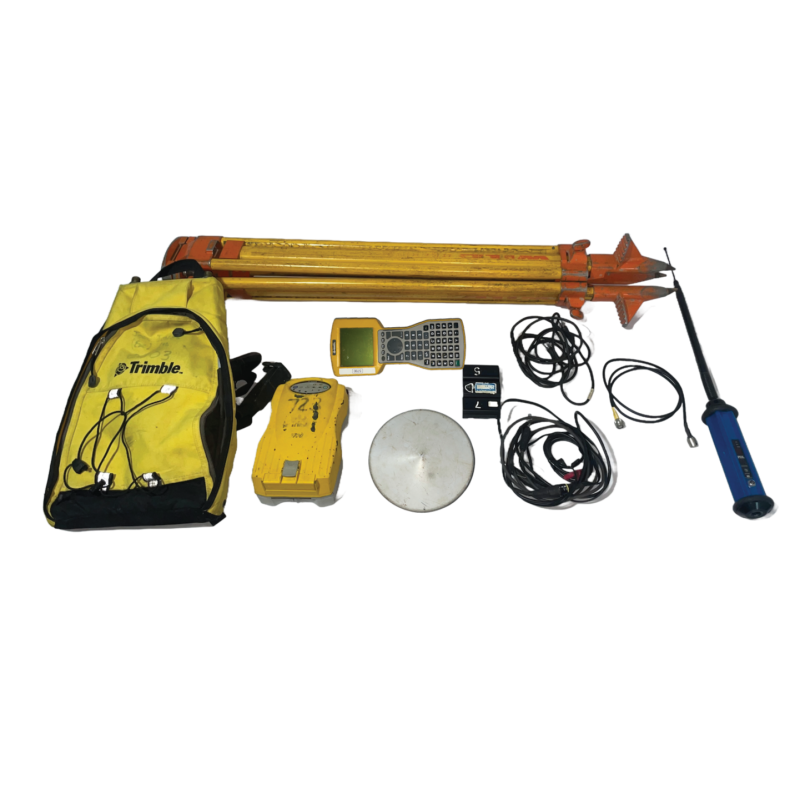

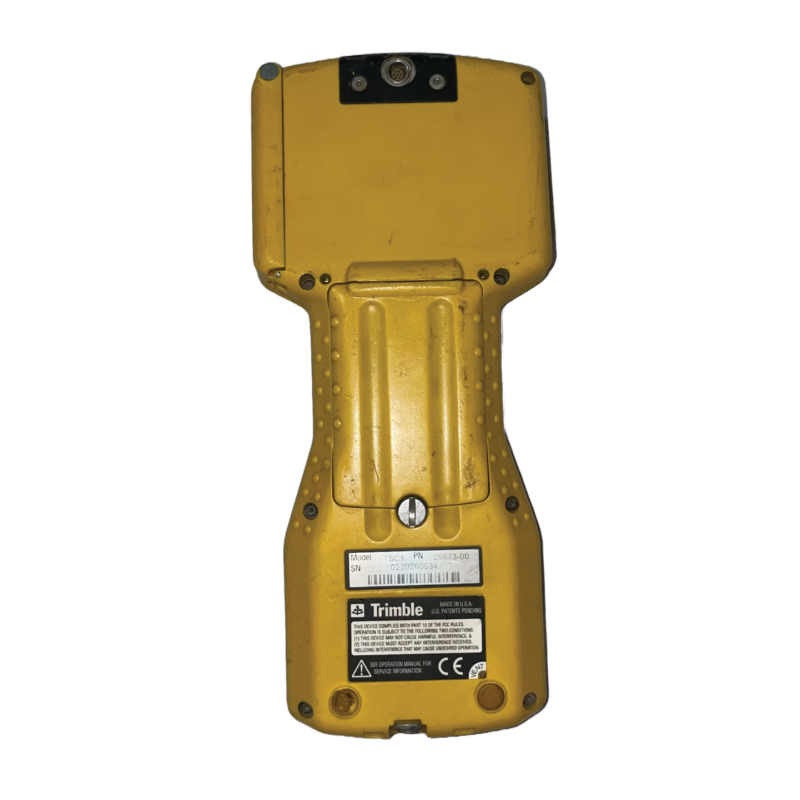

ONE RECEIVER, MANY CONFIGURATIONS, FOR GREATER FLEXIBILITY AND CHOICE

The Trimble® 5700 GPS receiver is an advanced, but easy-to-use, surveying instrument that is rugged and versatile enough for any job.

PERFORMANCE SPECIFICATIONS

Measurements

• Advanced Trimble Maxwell technology
• High-precision multiple correlator L1 and L2 pseudorange measurements
• Unfiltered, unsmoothed pseudorange measurement data for low noise,
low multipath error, low time domain correlation, and high dynamic
response
• Very low noise L1 and L2 carrier phase measurements with <1 mm
precision in a 1 Hz bandwidth
• L1 and L2 Signal-to-Noise ratios reported in dB-Hz
• Proven Trimble low-elevation tracking technology
• 24 Channels L1 C/A Code, L1/L2 Full Cycle Carrier, WAAS/EGNOS
Code differential GPS positioning1
Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±(0.25 m + 1 ppm) RMS
Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±(0.5 m + 1 ppm) RMS
WAAS differential positioning accuracy typically <5 m 3DRMS2
Static and FastStatic GPS surveying1
Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mm + 0.5 ppm RMS
Vertical . . . . . . . . . . . . . . . . . . . . . . . . ±5 mm + 1 ppm (× baseline length) RMS
Kinematic surveying1
Real-time and postprocessed kinematic surveys
Horizontal . . . . . . . . . . . . . . . . . . . .±(10 mm + 1 ppm) (× baseline length) RMS
Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±(20 mm + 1 ppm) RMS
Initialization time . . . . . . . . . . . . . . . . . . . . . . . . . . . Single/Multi-base minimum
10 sec + 0.5 times baseline length in km, up to 30 km
Scalable GPS infrastructure initialization time . . . . . . . . . . . . . . . .<30 seconds
typical anywhere within coverage area
Initialization reliability3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Typically >99.9%

HARDWARE

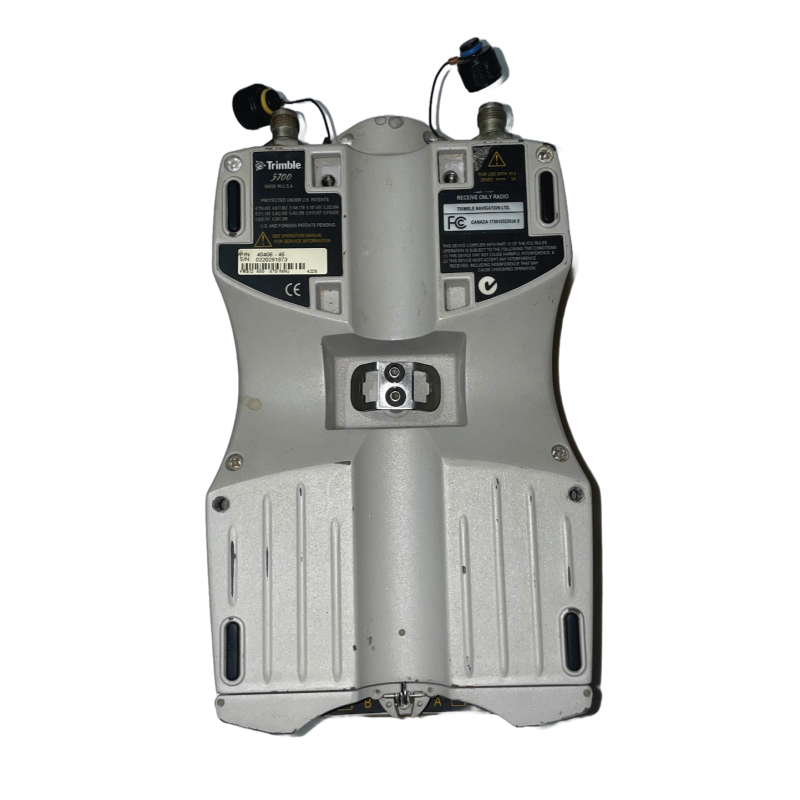

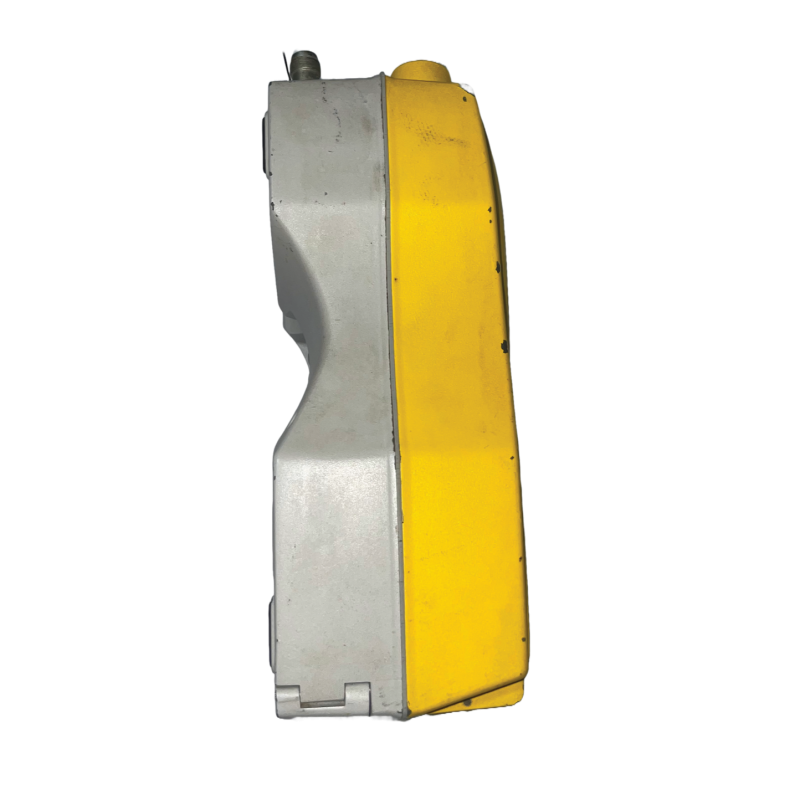

5700 GPS receiver
Physical:
Casing . . . . . . . . . . . . . . . . . Tough, lightweight, fully sealed magnesium alloy
Waterproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tested to IPX7 standards
Shock and vibration . . . . . . . . . . . . . . . . . . . . . Tested and meets the following
environmental standards:
Shock . . . . . . . . . . .MIL-STD-810F to survive a 1 m (3.28 ft) drop onto concrete
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MIL-STD-810-F on each axis

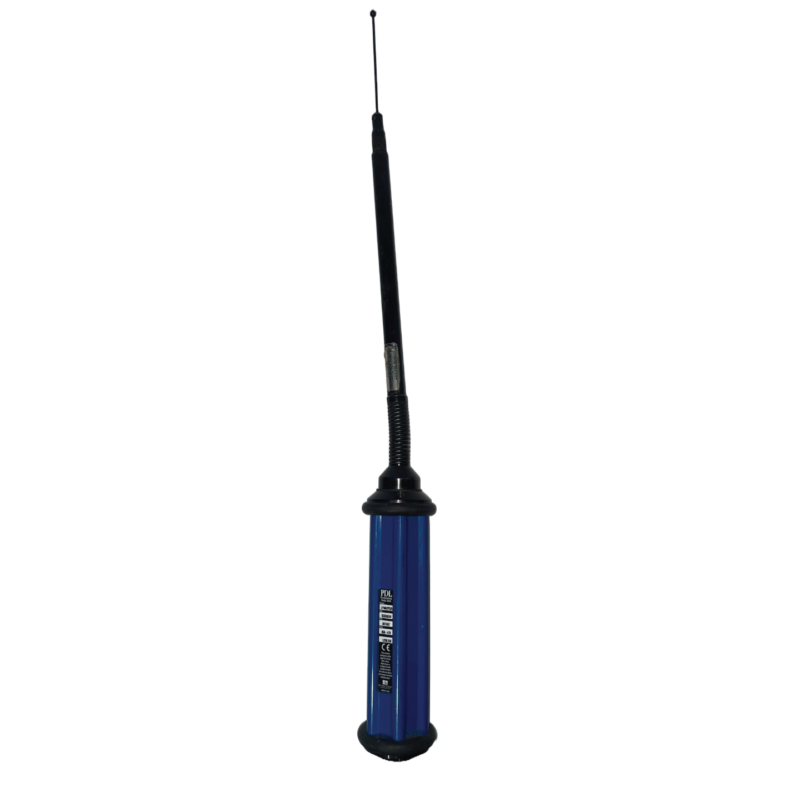

Weight . . . . . . . . . . . . . . . . . . . . . . . . . With internal batteries, internal radio,
internal battery charger, standard UHF antenna: 1.4 kg (3 lb)
As entire RTK rover with batteries for greater than 7 hours,
less than 4 kg (8.8 lb)
Dimensions (W×H×L) . . . . . . . . . . . . . . . . . . . . . . . . . .13.5 cm × 8.5 cm × 24 cm
(5.3 in × 3.4 in × 9.5 in)
Electrical:
Power . . . . . . . . . .DC input 11 V DC to 28 V DC with over voltage protection
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 W receiver only, 3.75 W
including internal radio
Battery . . . . . . . . . . . . . .Greater than 10 hours data logging, or greater than
7 hours of RTK operation on two internal 2.0 Ah lithium-ion batteries
Battery weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 kg (3.5 oz)
Battery charger . . . . . . . . . . . . . . . . Internal with external AC power adapter;
no requirement for external charger
Power output . . . . . . . . . . . 11.5 V to 20 V DC (Port 1), 11.5 V DC to 27.5 V DC
(Port 3) on external power input
Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . Class B Part 15 FCC certification,
CE Mark approved, C-Tick approved, Canadian FCC

Communications and data storage:

• 2 external power ports, 2 internal battery ports, 3 RS232 serial ports
• Integrated USB for data download speeds in excess of 1 Mb per second
• External GPS antenna connector
• CompactFlash advanced lightweight and compact removable data storage.
Options of 64 MB or 128 MB from Trimble
• More than 3,400 hours continuous L1+L2 logging at 15 seconds with
6 satellites typical with 128 MB card
• Fully integrated, fully sealed internal UHF radio modem option
• GSM, cellphone, and CDPD modem support
• Dual event marker input capability
• 1 Hz, 2 Hz, 5 Hz, and 10 Hz positioning and data logging
• 1 pulse per second output capability
• CMRII, CMR+, RTCM 2.× and 3.× input and output standard
• 15 NMEA outputs

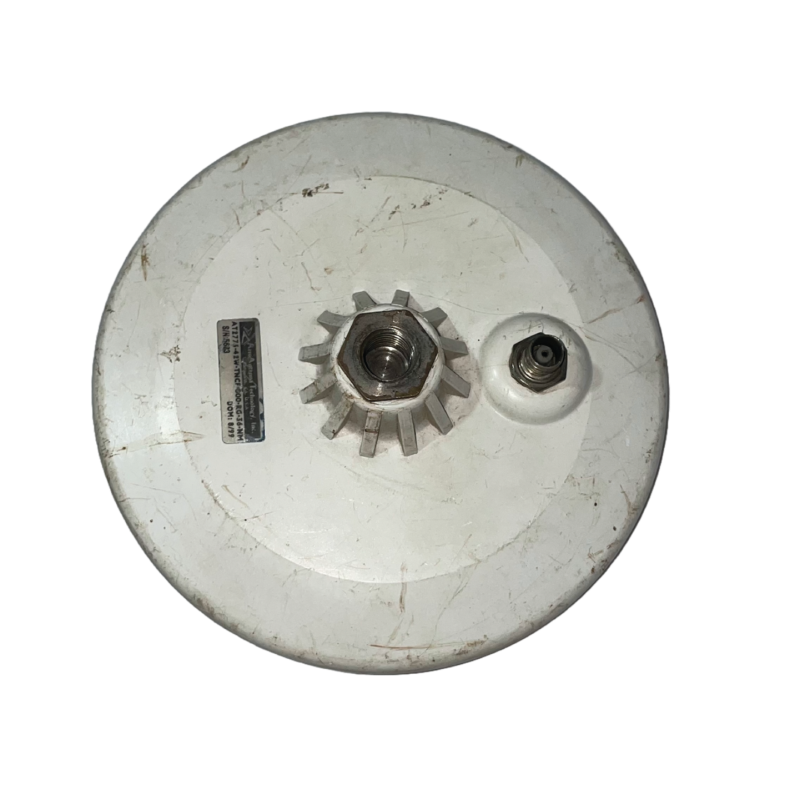

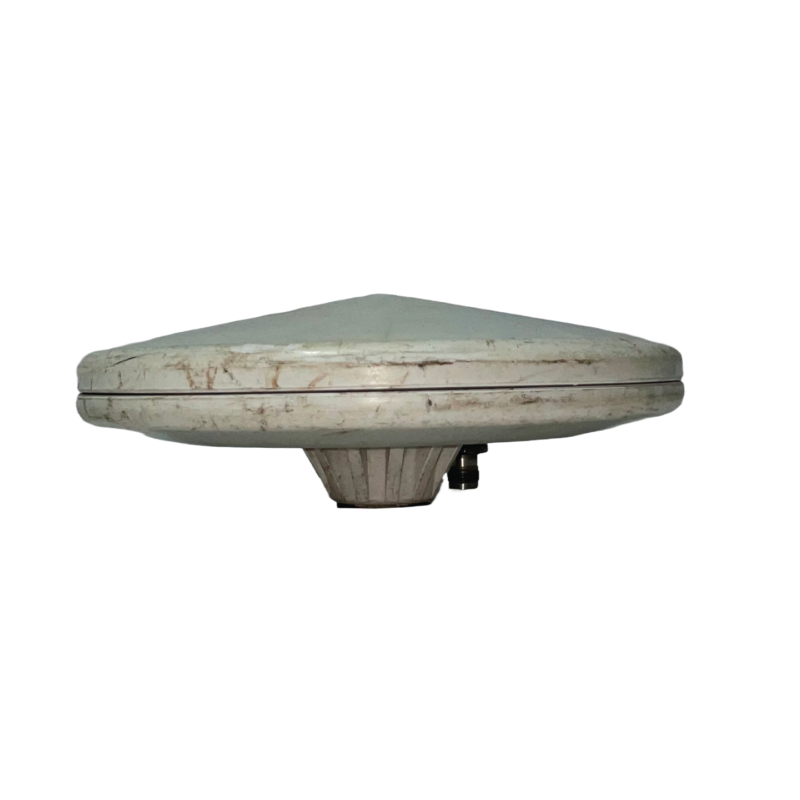

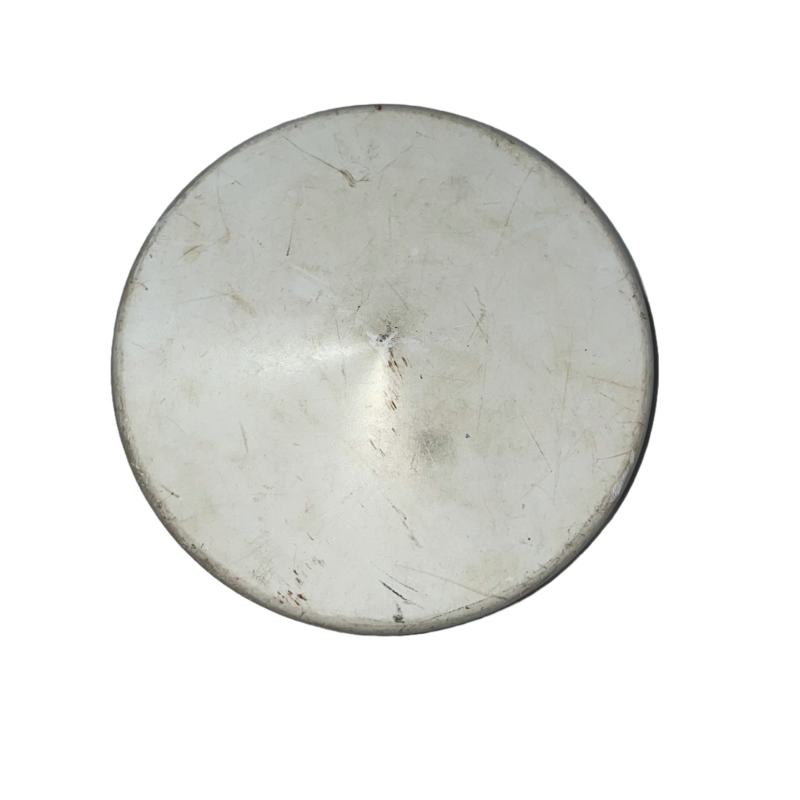

Zephyr antenna

Dimensions . . . . . . . . . . . . 16.2 cm (6.38 in) diameter × 6.2 cm (2.44 in) height
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.55 kg (1.20 lb)
Operating temperature . . . . . . . . . . . . . . . . . –40 °C to 70 °C (–40 °F to 158 °F)
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100% humidity proof, fully sealed
Shock and vibration . . . . . . . . . . . . . . . . . . . . . Tested and meets the following
environmental standards:
Shock . . . . . . . . . . MIL-STD-810-F to survive a 2 m (6.56 ft) drop onto concrete
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MIL-STD-810-F on each axis
• 4-point antenna feed for submillimeter phase center repeatability
• Integral low noise amplifier
• 50 dB antenna gain

Zephyr Geodetic antenna

Dimensions . . . . . . . . . . . . . . 34.3 cm (13.5 in) diameter × 7.6 cm (3 in) height
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.31 kg (2.88 lb)
Operating temperature . . . . . . . . . . . . . . . . . –40 °C to 70 °C (–40 °F to 158 °F)
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100% humidity proof, fully sealed
Shock and vibration . . . . . . . . Tested and meets the following environmental
standards:
Shock . . . . . . . . . . MIL-STD-810-F to survive a 2 m (6.56 ft) drop onto concrete
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MIL-STD-810-F on each axis
• 4-point antenna feed for submillimeter phase center repeatability
• Integral low noise amplifier
• 50 dB antenna gain
• Trimble Stealth ground plane for reduced multipath
